Summary of Contents for Techni-Lux ST-LEDSTROBE60
- Page 1 Information specifically for: ST-LEDSTROBE60 v1.0 This manual contains important information. Please read before operating fixture.
- Page 2 It is the owner’s responsibility to provide invoices for proof of purchase, purchase date and dealer or distributor. If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment.
-
Page 3: Table Of Contents
Table of Contents Specifications ..........................4 Unpacking ........................... 5 Power ............................5 Mounting ............................. 6 Basic Reference .......................... 6 Setup and Operation Modes (LED Segment Display) .............. 7 Control Panel Menu & Operation Settings ................7 ... -
Page 4: Specifications

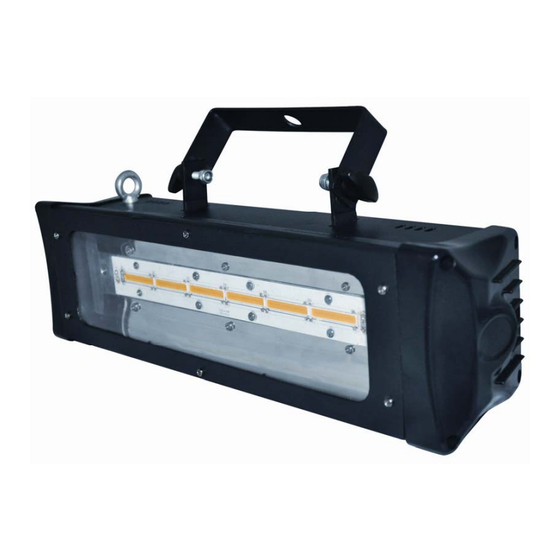

Specifications Fixture Overview 6 x 10w White LEDS Fast strobe action using long last LEDS Compact and Rugged Housing Wide angle reflector Operating modes: DMX, Manual level and flash speed, Sound Active, Master/Slave DMX control using 2 channels ... -
Page 5: Unpacking
Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain carton and all packing material for inspection. -
Page 6: Mounting
Mounting Always consult a qualified professional when rigging. Consider access for routine maintenance when selecting a mounting position. This fixture may be mounted in any position provided there is adequate room for movement and ventilation. Mount the fixture securely using proper hardware, clamps and a safety cables. -
Page 7: Setup And Operation Modes (Led Segment Display)
Setup and Operation Modes (LED Segment Display) The following refers to the different modes that are available on this fixture via the LED Control Panel display. All functions are selectable from the display menu located at the back of the fixture. -
Page 8: Dmx-512 Control
Note: The following DMX-512 Control section explains how to select a DMX start address for your fixture. It also covers connecting data cables, proper termination, specific channel assignments and channel value tables. DMX-512 Control Fixtures require a "Start Address" from 1 to 512, setting the first DMX channel containing data for the fixture (see DMX Background). -
Page 9: Adapter 5-To-3 Pin
Adapter 5-to-3 pin Systems using 5 pin DMX interfaces can be accommodated by purchasing 3-to-5 pin adapters or building adapter cables. Numbers designating each pin can be found on connectors. Converting between the two XLR types is done in a pin-to-pin fashion. Connect the shields to pin 1, then connect pin 2 to pin 2 and pin 3 to pin 3, regardless of either connector’s gender or pin count. -
Page 10: Dmx Channel Assignments
DMX Channel Assignments This fixture features a 2 DMX Channel mode. 2 Channel Mode Channel Function Flashing Strobe (0-255) Intensity UV (0-255) Analog Control This fixture has an analog in and pass thru. Use an analog 0/10v output control signal to adjust the speed of this strobe. -
Page 11: Maintenance
Maintenance Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance. -
Page 12: Troubleshooting
3 pin XLR connectors as these types of balanced or “Lo-Z” cables Data Negative (S- or Cold) are common in the audio industry. In either case, pin numbers are the same Data Positive (S+ or Hot) and carry the same signals. n/c (not used) n/c (not used) www.techni-lux.com...
