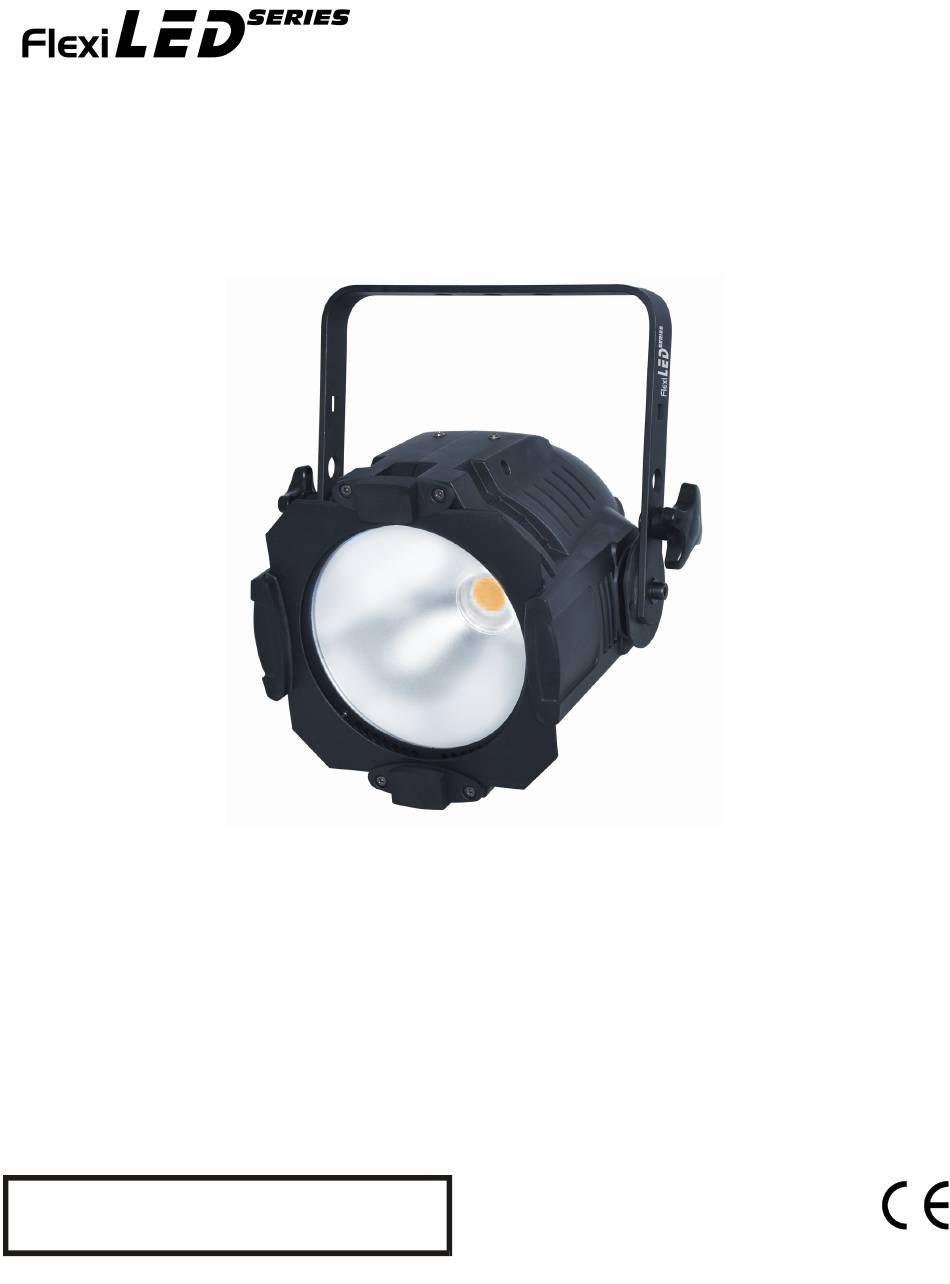

- Page 1 Information specifically for: DL-FLEXILED100W/B V1.0 This manual contains important information. Please read before operating fixture.
- Page 2 If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment. All shipping will be paid by purchaser. This warranty does not cover lamps, fuses,...
-
Page 3: Table Of Contents
Table of Contents Specifications ..........................4 Unpacking ...........................5 Power............................5 Mounting .............................5 Basic Reference..........................6 Setup and Operation Modes (LCD Display)................6 Control Panel Menu ........................7 DMX-512 Control.........................7 DMX Data Connection ......................7 Data Terminator ........................8 Adapter 5-to-3 pin ........................8 DMX Start Address ........................9 DMX Channel Assignments .......................9 1 Channel Mode “01”... -
Page 4: Specifications
Specifications Fixture Overview • 1 x 100w COB with White 3200k LED • Beam Angle – 60° • Rugged Aluminum Housing • Operating modes: DMX, Static Setting, Auto Change, Sound Active, Master/Slave • Precise DMX control using 3 channels or reduced single channel mode •... -
Page 5: Unpacking
Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain carton and all packing material for inspection. -
Page 6: Basic Reference
Basic Reference Male XLR 5-pin Data Input Fuse Holder Female XLR 5-pin Data Output Power Input Digital LCD Display Menu Setting Buttons Setup and Operation Modes (LCD Display) This fixture includes two special lens frames: a 15 and a 25 degree. Without a lens installed, the fixture will produce a wide 60 degree beam. -
Page 7: Control Panel Menu
Control Panel Menu Use the fixture’s Control Panel to access the Control Menu. The MODE Key puts the fixture in the settings menu itself and also acts as a BACK key between options, UP/DOWN moves through the menu options and allows the assignment of a value. The ENTER key is used to enter that option and confirms the selection once the UP/DOWN is used to adjust the value. -
Page 8: Data Terminator
DMX-IN DMX-OUT XLR Connector - Socket: XLR Connector - Plug: - Ground - Ground - Signal (-) - Signal (-) ignal (+) ignal (+) (Unused) (Unused) Data Terminator A Data Terminator can be connected to the DMX-OUT of the last fixture to reduce the effects of signal noise; it is not required for all installations. -
Page 9: Dmx Start Address
DMX Start Address To place the fixture in DMX mode, press the MODE key, then using the UP/DOWN keys get to the Addr Menu Option. Press ENTER and using the UP/DOWN buttons, set the start address number for this particular unit in the DMX chain. Once selected, press ENTER again to save your selection. -
Page 10: Channel Values And Functions - 3 Channel Mode
Channel Values and Functions – 3 Channel Mode CH 1 : Dimmer Sets the intensity of the White CH 1 – White LED output. DMX Value Function No Output 1-255 Intensity - Off to Full On CH 2 : Strobe Sets relative speed of flashing. -
Page 11: Maintenance
Maintenance Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance. -
Page 12: Troubleshooting
3 pin XLR connectors as these types of balanced or “Lo-Z” cables Data Negative (S- or Cold) are common in the audio industry. In either case, pin numbers are the same and Data Positive (S+ or Hot) carry the same signals. n/c (not used) n/c (not used) www.techni-lux.com...
