Summary of Contents for Techni-Lux VectorLED 160 Spot

  • Page 1 Information specifically for: DM-VectorLED160S V1.0 This manual contains important information. Please read before operating fixture.
  • Page 2 © 2010 Techni-Lux Inc.
  • Page 3 It is the owner’s responsibility to provide invoices for proof of purchase, purchase date and dealer or distributor. If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment.
  • Page 4: Table Of Contents

    Table of Contents Specifications ..........................5 Fixture Overview ........................5 Physical.............................5 Lamp Source..........................5 Environmental ...........................6 Electrical ...........................6 Control ............................6 Optics............................6 Gobo Size ..........................6 Rigging............................6 Unit Parts.............................7 Unpacking ...........................8 Power............................9 Voltage Selection........................9 LED Engine ..........................9 Mounting ...........................10 Control Panel Menu ........................11 DMX-512 Start Address ......................12 DMX-512 Channel Assignment ....................12 CH 1 : Shutter / Strobe / Reset ....................13 CH 2 : Dimmer ........................13...
  • Page 5: Specifications

    Specifications Fixture Overview • Long Life 60W LED Engine • Pan range of movement: 540° • Tilt range of movement: 270° • High resolution 16 Bit Pan/Tilt movement for accurate positioning • Pan/Tilt motor speed • Consistent & auto correcting Pan/Tilt positioning •...
  • Page 6: Environmental

    Environmental Environmental Protection Rating IP20 Maximum ambient temperature 105°F (40°C) Maximum exterior surface temperature 176°F (80°C) Minimum distance to flammable surface 3.3ft (1m) Minimum distance to illuminated surface 3.3ft (1m) Electrical Selectable Voltages Auto Switching 90-240v @ 50 or 60Hz Connection IEC (C13) Power Inlet with Fuse Rated Power...
  • Page 7: Unit Parts

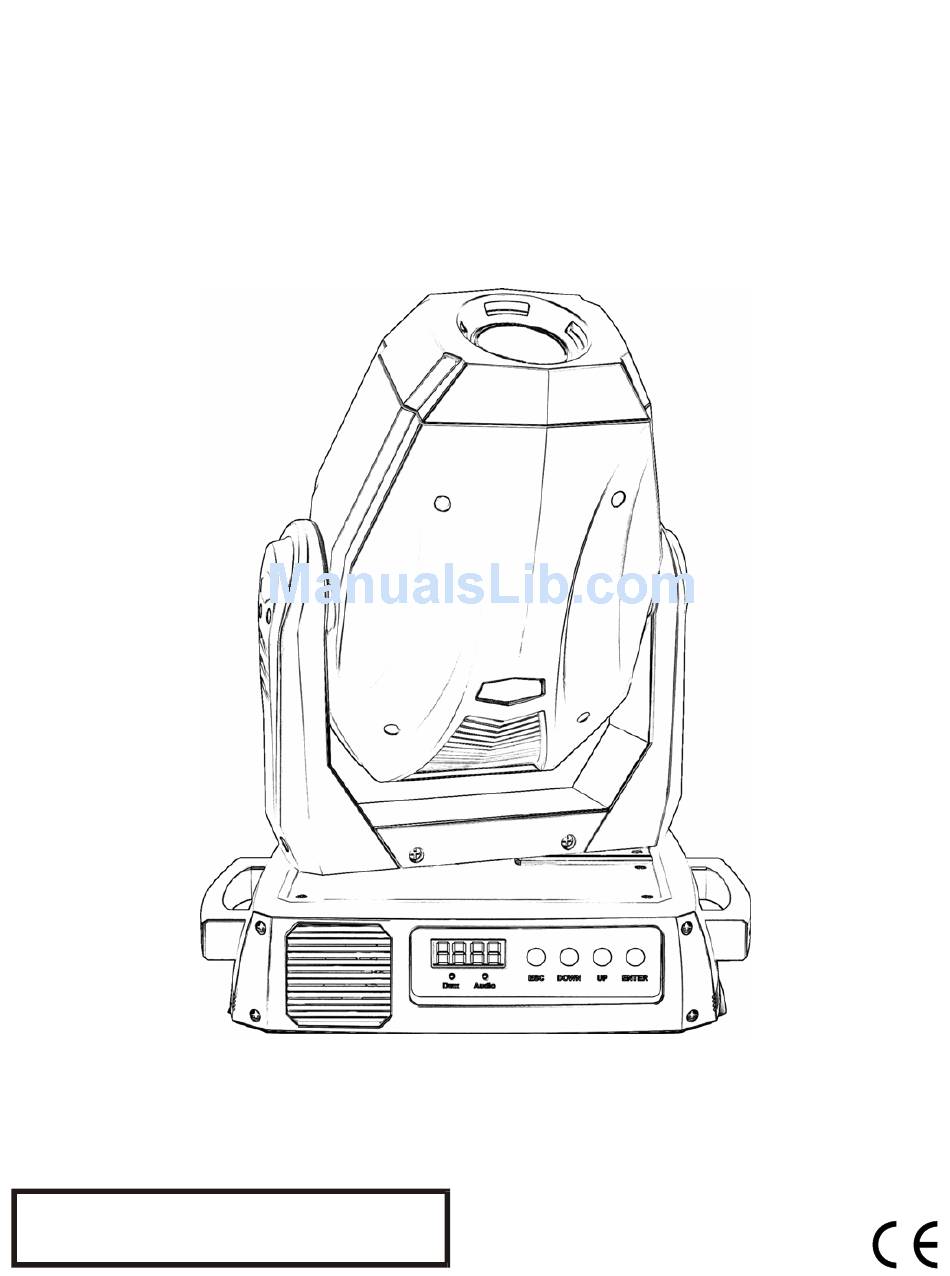

    Unit Parts 1 Head 2 Yoke 3 Base 4 Control Panel 5 Base Bottom 6 Omega Clamp Adapter...
  • Page 8: Unpacking

    Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, retain all packing material for inspection and notify the shipper immediately.
  • Page 9: Power

    Power Power is connected to the fixture with an IEC power inlet and cord. Before applying power to fixture, set the power switch to “OFF” and verify input voltage matches the power source voltage. Check all power cords to verify they are of proper type and sufficient rating for the equipment attached.
  • Page 10: Mounting

    Mounting Always consult a qualified professional when rigging. This fixture may be placed on any flat surface or truss that is capable of safely supporting the weight. When selecting a mounting position, take into consideration access for routine maintenance. This fixture may be mounted in any position provided there is adequate room for movement and ventilation.
  • Page 11: Control Panel Menu

    Control Panel Menu Use the fixture’s Control Panel to access the Control Menu. The MODE Key moves between options, UP/DOWN selects the Action of the option and ENTER confirms the selection. Settings are stored and recalled on subsequent power cycles. ESC moves back in the menu. Menu Function / Option Description...
  • Page 12: Dmx-512 Start Address

    DMX-512 Start Address The Start Address of a fixture is set using the “Addr” mode in the Control Panel Menu. Consult the manual of the system’s DMX512 controller to select a desirable addressing scheme before addressing fixtures. Each fixture connected to the DMX-512 data link requires a Start Address to indicate the first DMX channel containing data designated for that fixture, see DMX-512 Background.
  • Page 13: Ch 1 : Shutter / Strobe / Reset

    CH 1 : Shutter / Strobe / Reset The Shutter channel works directly on the LED Light Engine. It is an electronic shutter that enables instantaneous shutter Open and Closed “movements.” Because no mechanical elements are involved it is completely silent with no wipe effect allowing for incredibly fast strobing effects.
  • Page 14: Ch 4 : Rotating Gobo Wheel

    CH 4 : Rotating Gobo Wheel The Rotating Gobo Wheel contains 7 gobos, 2 are dichroic glass. Adding colors and varying the Focus can create many interesting effects. CH 4 – Rotating Gobo Wheel DMX Value Function 0-15 Open 16-31 Rotating Gobo 1 (Glass) 32-47 Rotating Gobo 2 (Metal)
  • Page 15: Ch 6 : Focus

    CH 6 : Focus The Focus is used to vary the focal point of the projection. CH 6 – Focus DMX Value Function 0-255 Focus – Far to Near CH 7 : Prism / Prism Rotation The Prism effect uses a 3 facet prism to split the beam. The effect can be rotated in either direction at variable speeds or set to fixed positions.
  • Page 16: Dmx-512 Background

    DMX-512 Background DMX-512 is a digital data transmission standard developed by the United States Institute for Theater Technology (USITT). It is designed to enable control of lighting equipment, originally dimmers. DMX deals solely with the formatting of data for transmission and does not dictate how the data is created or used.
  • Page 17: Data Link Dmx-512

    Data Link DMX-512 For data, this fixture uses XLR (Cannon) type connectors and shielded twisted pair cable approved for EIA-422/EIA485 use. Fixtures are connected in Daisy Chain topography with only one data source and no branching. Systems using 3 or 5 pin DMX interfaces can be accommodated by purchasing 3-to-5 pin adapters or building adapter cables.
  • Page 18: Maintenance

    Maintenance Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance.
  • Page 19: Troubleshooting

    Troubleshooting Symptom Possible Cause / Solution No Power Check power switch Check for power on mains Check main fuse and fuse holder No response to DMX Check data cables Check Start Address Check that fixture isn’t in the Demo mode Incorrectly responds to DMX Check Start Address Check for overlapping addresses...
  • Page 20: Accessory Items

    Accessory Items Order Code Description CLAMP-MEGA/B Clamp-Mega Black - Heavy Duty CLAMP-CBHALF Coupler Half Cheeseborough SAFETYCABLE30S Safety Cable Silver 30” SAFETYCABLE30B Safety Cable Black 30” SAFETYCABLE18B Safety Cable Black 18” SAFETYCABLE18S Safety Cable Silver 18” CA-XLR3/1 Pre-made 1’ 3-pin XLR Cable CA-XLR3/5 Pre-made 5’...
