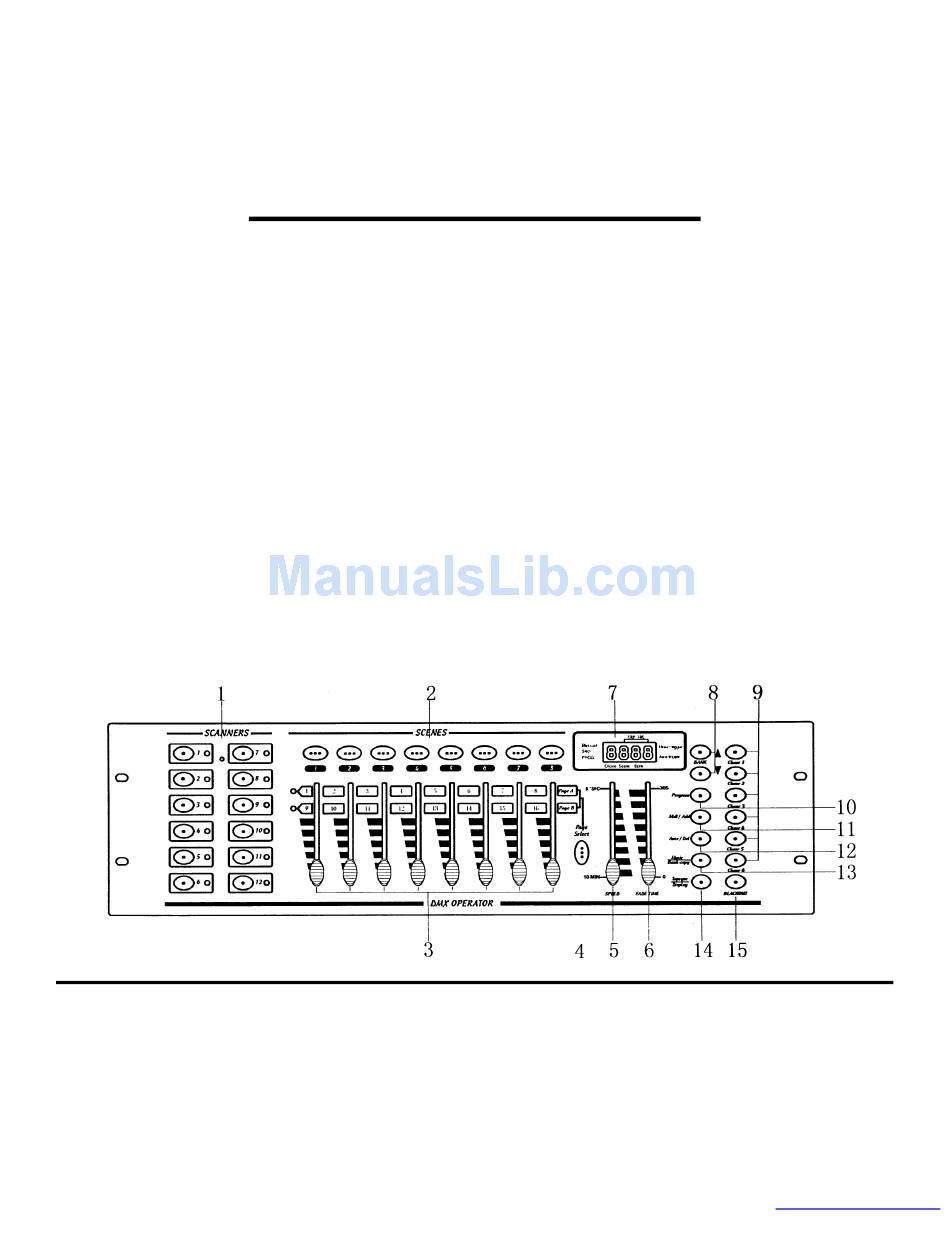

- Page 1 CT-OPERATOR User’s Manual A Quick Guide to the DMX Operator Techni-Lux, Inc. 10779 Satellite Blvd. Orlando, FL 32804 Ph: 407-857-8770 Fax: 407-857-8771 www.Techni-Lux.com CT-OPERATOR_MANUAL_V2.3.doc...
-
Page 2: Table Of Contents
DMX Operator Table of Contents Main Features____________________________________________ 3 Technical Specifications ___________________________________ 3 Physical Connections _____________________________________ 3 Polarity Switch for DMX512_________________________________ 4 Start Address Assignment for Fixtures _______________________ 4 Control Buttons __________________________________________ 4 Scenes and Terminology __________________________________ 4 Programming Scenes ___________________________________ 5 Running Scenes________________________________________ 5 Other Scene Functions __________________________________ 5 Scanner Copy ________________________________________ 5... -
Page 3: Main Features
DMX Operator Main Features 1) 192 DMX Channels divided into 12 Fixtures 2) 30 Banks of 8 Scenes 3) 6 Chases of 240 Steps (Banks) 4) 8 Faders can access all 16 channels per fixture 5) Built-In microphone 6) AUTO speed controlled by fader or TAPSYNC 7) MIDI control input 8) 4 Digit LED display 9) Master BLACKOUT... -
Page 4: Polarity Switch For Dmx512
DMX Operator Polarity Switch for DMX512 The Polarity Switch for DMX512 is located on the back panel between the MIDI and DMX. This switch selects the polarity of the signal on the 3 pin DMX512 Output. Most equipment requires the signal to be sent such that PIN #2 is DATA(-) or Cold and PIN #3 is DATA(+) or Hot, however, some require the signal to be inverted. -
Page 5: Programming Scenes
DMX Operator Programming Scenes 1) Enter the Programming Mode by pressing and holding the PROGRAM button for 3 seconds. The Program LED in the lower left of the display will indicate that the controller is in Programming Mode. 2) Use the BANK UP/DOWN buttons to select a bank for storing Scenes. The two right most digits on the display indicate the selected Bank. -
Page 6: Delete All Scenes
DMX Operator Delete ALL Scenes 1) In Programming Mode, Press PROGRAM and BANK DOWN at the same time, and hold. 2) Cycle power to the controller (OFF then ON) while holding the PROGRAM and BANK DOWN buttons. <Done> Chases A Chase is made with individual Scenes or by one or more Banks. When individual scenes are assigned to a Chase, the Chase will step through the Scenes in the bank by numerical order;... -
Page 7: Running Chases
DMX Operator Running Chases There are two ways to run a Chase; 1) AUTO uses a time between steps set either by the SPEED fader or the TAPSYNC button. 2) Music uses an internal microphone to step the chase to the beat of the music. 1) While in the Run Mode (Programming LED off), select a Trigger Mode for the chase. -
Page 8: Midi Control Mode
DMX Operator MIDI Control Mode A single Midi Channel can be used to control the output functions of the controller. Note numbers are used to turn on/off the Scenes in Banks 1-15, Chases 1-6 or the BLACKOUT function. Set MIDI Channel Number 1) While in the Run Mode (Programming LED off), press and hold the MIDI/ADD button until the right two digits of the display begin to flash.
