1. Introduction

This hybrid PV inverter can provide power to connected loads by utilizing PV power,
utility power and battery power.
PV module
Depending on different power situations, this hybrid inverter is designed to generate
continuous power from PV solar modules (solar panels), battery, and the utility. When MPP
input voltage of PV modules is within acceptable range (see specification for the details),
this inverter is able to generate power to feed the grid (utility) and charge battery. This
inverter is only compatible with PV module types of single crystalline and poly crystalline.
Do not connect any PV array types other than these two types of PV modules to the
inverter. Do not connect the positive or negative terminal of the solar panel to the ground.
See Figure 1 for a simple diagram of a typical solar system with this hybrid inverter.
Note: By following the EEG standard, every inverter sold to German areas is not allowed
to charge battery from Utility. The relevant function is initially disabled by the
software.
Hybrid inverter
Battery

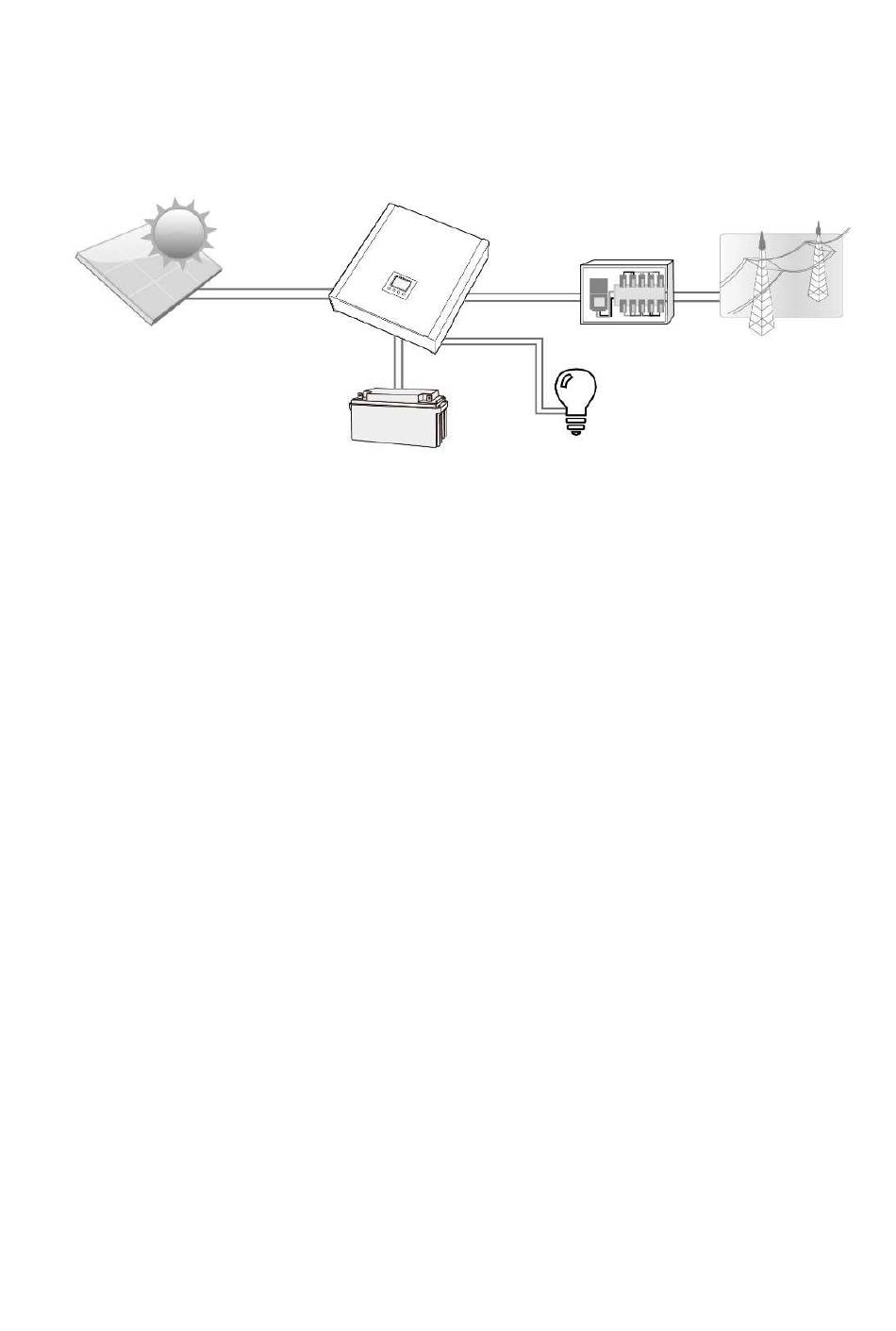

Figure 1: Basic hybrid PV System Overview
Distribution Box
Load
1
Electric grids
