- Page 1 User Manual Solar Hybrid Inverter SP Handy Series 3.5-5.5K Version: 1.0...
-
Page 2: Table Of Contents
Table Of Contents ABOUT THIS MANUAL ........................1 Purpose ..............................1 Scope ..............................1 SAFETY INSTRUCTIONS ........................1 INTRODUCTION ..........................2 Features ............................... 2 Basic System Architecture ........................2 Product Overview ..........................3 INSTALLATION ..........................4 Unpacking and Inspection ........................4 Preparation ............................ -
Page 3: About This Manual
ABOUT THIS MANUAL Purpose This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read this manual carefully before installations and operations. Keep this manual for future reference. Scope This manual provides safety and installation guidelines as well as information on tools and wiring. SAFETY INSTRUCTIONS All safety instructions in this document must be read, understood and WARNING:... -
Page 4: Introduction
INTRODUCTION This is a multi-function inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single package. The comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC or solar charging priority, and acceptable input voltage based on different applications. -

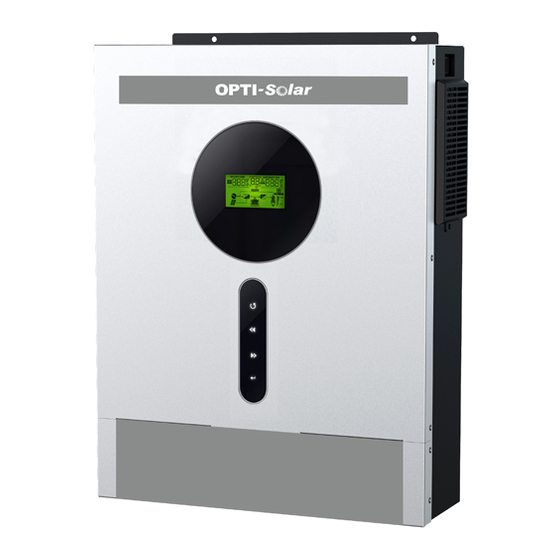

Page 5: Product Overview
Product Overview 1. LCD display 2. Function buttons with status indication 3. Power on/off switch 4. AC input 5. AC output 6. PV input 7. Battery input 8. Circuit breaker 9. USB communication port 10. RS-232 communication port... -
Page 6: Installation
INSTALLATION Unpacking and Inspection Before installation, please inspect the content. Be sure that nothing inside the package is damaged. You should have received the following items inside the package: Inverter x 1 User manual x 1 RS232 Communication cable x 1 Software CD x 1 DC Fuse x 1 Preparation... -
Page 7: Battery Connection
Install the unit by screwing two screws. It’s recommended to use M4 or M5 screws. Battery Connection CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-current protector or disconnection device between battery and the inverter. It may not be necessary to have a disconnection device in some applications, however, it’s still recommended to have over-current protection installed. - Page 8 secure it to the battery terminal block with the bolts properly tightened. Refer to battery cable size for torque value. Make sure polarity at both the battery and the inverter is correctly connected and ring terminals are secured to the battery terminals. SP3500 Handy / SP5500 Handy SP5500 Handy WARNING: Shock Hazard...
-
Page 9: Ac Input/Output Connection
AC Input/Output Connection CAUTION!! Before connecting to AC input power source, please install a separate AC breaker between the inverter and the AC input power source. This will ensure that the inverter can be safely disconnected during maintenance and fully protected from over-current. The recommended spec of AC breaker is 32A CAUTION!! There are two power terminal blocks with “IN”... -
Page 10: Pv Connection
5. Make sure the wires are securely connected. CAUTION: Appliances such as air conditioner required at least 2~3 minutes to spool up because it needs to have enough time to balance refrigerant gas inside of circuits. If a power shortage occurs and recovers in a short period of time, it may cause damage to your connected appliances. - Page 11 Take the 250Wp PV module as an example. After considering above two parameters, the recommended module configurations are listed in the table below. Solar Panel Spec. SOLAR INPUT Total input Q'ty of panels (reference) Min in series: 2 pcs, max. in series: 12 pcs. power - 250Wp 2pcs in series...
-
Page 12: Final Assembly
Final Assembly After connecting all wirings, put the bottom cover back by fixing four screws as shown below. Communication Connection Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and follow on-screen instruction to install the monitoring software. For the detailed software operation, please check user manual of software inside of CD. -
Page 13: Operation
OPERATION Power ON/OFF Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch (located on the side of the inverter) to turn on the unit. Operation and Display Panel The operation and the LCD module, shown in the chart below, includes four touchable buttons with status indication and a LCD display, indicating the operating status and input/output power information. -
Page 14: Lcd Display Icons
LCD Display Icons Icon Function description Input Source Information Indicates the AC input. Indicates the PV input Indicate input voltage, input frequency, PV voltage, charger current, charger power, battery voltage. Configuration Program and Fault Information Indicates the setting programs. Indicates the warning and fault codes. Warning: flashing with warning code. - Page 15 In battery mode, it will present battery capacity. Load Percentage Battery Voltage LCD Display < 1.85V/cell 1.85V/cell ~ 1.933V/cell Load >50% 1.933V/cell ~ 2.017V/cell > 2.017V/cell < 1.892V/cell 1.892V/cell ~ 1.975V/cell Load < 50% 1.975V/cell ~ 2.058V/cell > 2.058V/cell Load Information Indicates overload.
-
Page 16: Lcd Setting
LCD Setting After pressing and holding ENTER button for 3 seconds, the unit will enter setting mode. Press “UP” or “DOWN” button to select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to exit. Setting Programs: Progra Description... - Page 17 User-Defined If “User-Defined” is selected, battery charge voltage and low DC cut-off voltage can be set up in program 26, 27 and 29. Restart disable (default) Restart enable Auto restart when overload occurs Restart disable (default) Restart enable Auto restart when over temperature occurs 50Hz (default) 60Hz...
- Page 18 If this inverter is working in Line, Standby or Fault mode, charger source can be programmed as below: Utility first Utility will charge battery as first priority. Solar energy will charge battery only when utility power is not available. Solar first Solar energy will charge battery as first priority.
- Page 19 SP3500 Handy default setting: 28.2V SP5500 Handy default setting: 56.4V Bulk charging voltage (C.V voltage) If self-defined is selected in program 5, this program can be set up. Setting range is from 25.0V to 31.5V for SP3500 Handy and 48.0V to 61.0V for SP5500 Handy. Increment of each click is 0.1V. SP3500 Handy default setting: 27.0V SP5500 Handy default setting: 54.0V Floating charging voltage...
-
Page 20: Display Setting
Setting range is from 25.0V to 31.5V for SP3500 Handy and 48.0V to 61.0V for SP5500 Handy. Increment of each click is 0.1V. 60min (default) Setting range is from 5min to 900min. Battery equalized time Increment of each click is 5min. 120min (default) Setting range is from 5min to 900 min. - Page 21 Selectable information LCD display Input Voltage=230V, output voltage=230V Input voltage/Output voltage (Default Display Screen) Input frequency=50Hz Input frequency PV voltage=260V PV voltage PV current = 2.5A PV current PV power = 500W PV power AC and PV charging current=50A Charging Current PV charging current=50A...
- Page 22 AC charging current=50A Charging current AC and PV charging power=500W PV charging power=500W Charging power AC charging power=500W Battery voltage=25.5V, output voltage=230V Battery voltage and output voltage Output frequency=50Hz Output frequency Load percent=70% Load percentage...
- Page 23 When connected load is lower than 1kVA, load in VA will present xxxVA like below chart. Load in VA When load is larger than 1kVA (≧1KVA), load in VA will present x.xkVA like below chart. When load is lower than 1kW, load in W will present xxxW like below chart.
-
Page 24: Operating Mode Description
Operating Mode Description Operation mode Description LCD display Charging by utility and PV energy. Charging by utility. Standby mode Note: No output is supplied by the *Standby mode: The inverter unit but it still can charge is not turned on yet but at this batteries. - Page 25 If “solar first” is selected as output source priority and battery is not connected, solar energy and the utility will provide the loads. Power from utility. Power from battery and PV energy. PV energy will supply power to the loads and charge battery at the same time.
-
Page 26: Battery Equalization Description
Battery Equalization Description Battery equalization function is built into the charge controller. It reverses the buildup of negative chemical effects such as stratification, a condition where acid concentration is greater at the bottom of the battery than at the top. Equalization also helps to remove sulfate crystals that may have built up on the plates. If left unchecked, this condition, called sulfation, will reduce the overall capacity of the battery. -
Page 27: Fault Reference Code
However, in Equalize Mode, if the battery equalization timer runs out and the battery voltage doesn’t recover to the battery equalization voltage point, the charge controller will extend the battery equalized time until battery voltage achieves equalization voltage. If the battery voltage is still lower than equalization voltage when the extension runs out, the charge controller will stop equalization and return to the floating charging stage. -
Page 28: Warning Indicator
Warning Indicator Warning Warning Event Audible Alarm Icon flashing Code Beep three times every Fan is locked when inverter is on. second Over temperature None Battery is over-charged Beep once every second Low battery Beep once every second Overload Beep once every 0.5 second Output power derating Beep twice every 3 seconds PV energy is low. -
Page 29: Clearance And Maintenance For Anti-Dust Kit
CLEARANCE AND MAINTENANCE FOR ANTI-DUST KIT Overview Every inverter is already installed with anti-dusk kit from factory. Inverter will automatically detect this kit and activate internal thermal sensor to adjust internal temperature. This kit also keeps dusk from your inverter and increases product reliability in harsh environment. -
Page 30: Specifications
SPECIFICATIONS Table 1 Line Mode Specifications MODEL SP3500 Handy SP5500 Handy Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 230Vac 170Vac±7V (UPS); Low Loss Voltage 90Vac±7V (Appliances) 180Vac±7V (UPS); Low Loss Return Voltage 100Vac±7V (Appliances) High Loss Voltage 280Vac±7V High Loss Return Voltage 270Vac±7V... - Page 31 Table 2 Inverter Mode Specifications MODEL SP3500 Handy SP5500 Handy Rated Output Power 3.6KVA/3.6KW 5.6KVA/5.6KW Pure Sine Wave Output Voltage Waveform 230Vac±5% Output Voltage Regulation 50Hz Output Frequency Peak Efficiency Overload Protection 5s@≥130% load; 10s@105%~130% load 2* rated power for 5 seconds Surge Capacity Nominal DC Input Voltage 24Vdc...
- Page 32 Table 3 Charge Mode Specifications Utility Charging Mode MODEL SP3500 Handy SP5500 Handy Charging Current (UPS) 100Amp(@V =230Vac) @ Nominal Input Voltage Flooded Battery 29.2 58.4Vdc Bulk Charging Voltage AGM / Gel Battery 28.2 56.4Vdc Floating Charging Voltage 27Vdc 54Vdc Charging Algorithm 3-Step Charging Curve...
-
Page 33: Trouble Shooting
TROUBLE SHOOTING Problem LCD/LED/Buzzer Explanation / Possible cause What to do Unit shuts down LCD/LEDs and buzzer automatically will be active for 3 The battery voltage is too low 1. Re-charge battery. during startup seconds and then (<1.91V/Cell) 2. Replace battery. process.
