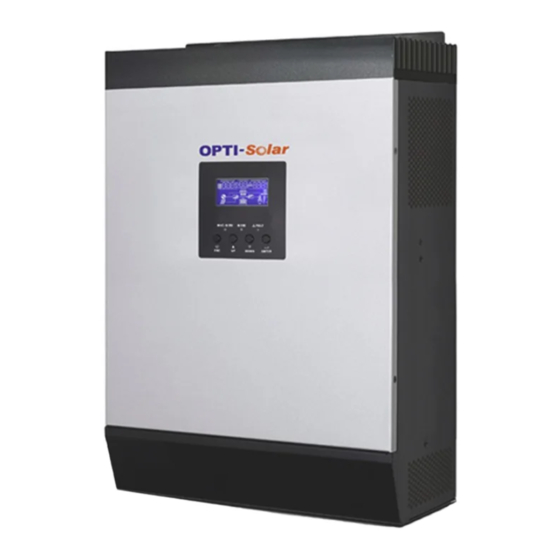

  • Page 1 User Manual Solar Grid Tie Inverter SP Vigor Series...

  • Page 2: Table Of Contents

    Table Of Contents 1. Introduction .......................1 1-1. Overview ......................1 1-1. Affecting Factors for Performance of the Inverter ..........1 2. Important Safety Warning ...................2 3. Unpacking & Overview....................4 3-1. Packing List ......................4 3-2. Product Overview ....................4 4. Installation ........................5 4-1. Selecting Mounting Location.................5 4-2.

  • Page 3: Introduction

    1. Introduction 1-1. Overview This PV inverter is designed to convert solar electric (photovoltaic or PV) power into utility-grade electricity that can be sold to the local power company. This inverter is embedded with smart MPP tracker to allow the PV inverter to operate at optimum power output voltage. PV module 1 PV module 2 (only for 5KW)

  • Page 4: Important Safety Warning

    Important: The inverter will reduce its output generation to protect its electronic circuits from overheating and any damage under high temperature environment. For maximum power output in high temperature, it’s recommended to mount the inverter in a shaded location with good ventilation.
  • Page 5 WARNING! Before installing and using this inverter, read all instructions and cautionary markings on the inverter and all appropriate sections of this guide. WARNING! Normally grounded conductors may be ungrounded and energized when a ground fault is indicated. WARNING! This inverter is heavy. It should be lifted by at least two persons. CAUTION! Authorized service personnel should reduce the risk of electrical shock by disconnecting both the AC and DC power from the inverter before attempting any maintenance or cleaning or working on any circuits connected to the inverter.

  • Page 6: Unpacking & Overview

    3. Unpacking & Overview 3-1. Packing List Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package: Inverter unit PV connectors* AC connector Mounting plate Software Manual USB cable *Note: 1 set of PV connectors for 3KW inverter and two sets of PV connectors for 5KW inverter.

  • Page 7: Installation

    4. Installation 4-1. Selecting Mounting Location Consider the following points before selecting where to install: Do not mount the inverter on flammable construction materials.  Mount on a solid surface  Although the unit is fitted with UV resistant components, direct exposure to sunlight ...
  • Page 8 3. Follow the below figure to place the solar Check if the solar inverter is firmly inverter onto the mounting plate. secured. Screw the inverter in position by screwing the supplied M5 screw, located on the underside of the enclosure. Refer to blow chart. 5KW inverter 1.
  • Page 9 3. Follow the below figure to place the solar Check if the solar inverter is firmly inverter onto the mounting plate. secured. 5. Attach small mounting plate to the unit with supplied 2 pieces of M4 screws. Then, screw the inverter in position by screwing one M5 screw, located on the underside of the enclosure.

  • Page 10: Grid (Ac) Connection

    5. Grid (AC) Connection 5-1. Preparation Before connecting to AC utility, please install a separate AC circuit breaker between inverter and AC utility. This will ensure the inverter can be securely disconnected under load. NOTE1: Although this inverter is equipped with a fuse (F1 point on PCB, 3KW: 250VAC/20A; 5KW: 250VAC/30A), it’s still necessary to install a separate circuit breaker for safety consideration.
  • Page 11 Step 4: Thread the protective element (C) with assembled cable gland over the utility cable. (Refer to Chart 1) Chart 1 Step 5: Remove insulation sleeve 8 mm for three conductors. And shorten phase L and neutral conductor N 3 mm. Step 6: Insert utility cable through socket element (B) and tighten the screw to fix utility cable.

  • Page 12: Pv Module (Dc) Connection

    6. PV Module (DC) Connection CAUTION: Do NOT connect battery or DC source to PV connectors. Otherwise, it will cause inverter damage. CAUTION: Before connecting to PV modules, please install separately a 2P circuit breaker for 3KW, 4P or two 2P DC circuit breakers for 5KW between inverter and PV modules. NOTE: Please use 600VDC/15A circuit breaker for 3KW and 600VDC/17A circuit breaker for 5KW.
  • Page 13 Positive terminal connection Step 2: Check the input voltage of PV array modules. The acceptable input voltage of solar inverter is 125VDC - 500VDC. If this system is only applied with one string of PV array, then please make sure that the maximum current load of each PV input connector is 13A for 3KW and 15A for 5KW.
  • Page 14 WARNING! It's very important for system safety and efficient operation to use appropriate cable for DC connection. To reduce risk of injury, please use the proper recommended cable size as below. Suggested cable requirement for DC wire Model External Conductor cross-section AWG no.

  • Page 15: Communication

    7. Communication This inverter is equipped with a slot for communication interfaces in order to communicate with a PC with corresponding software. This intelligent slot is suitable to install with RS-232/USB combo card and Modbus card. Follow below procedure to connect communication wiring and install the software.
  • Page 16 If it’s equipped with RS-232/USB combo card, you may use supplied USB cable to connect USB port of this inverter and your PC. Or you may use one network cable (RJ-45) to connect RS-232 port of this inverter and your PC. RS-232/USB combo card connection Step 3: Install monitoring software in your PC.

  • Page 17: Commissioning

    8. Commissioning Step 1: Check the following requirements before commissioning: Ensure the inverter is firmed secured  Check if the open circuit DC voltage of PV module meets requirement (Refer to Section  Check if the open circuit utility voltage of the utility is at approximately same to the ...

  • Page 18: Operation

    9. Operation 9-1. Interface This LCD panel shows current status and value of your system. This display is operated by Information/SELECT button. NOTICE: To accurately monitor and calculate the energy generation, please calibrate the timer of this unit via software every one month. For the detailed calibration, please check the user manual of bundled software.

  • Page 19: Operation Button

    Indicates PV module status. Each indicates 150VDC. When input voltage is  below 100VDC, icon will flash. When PV module is not connected, icon will  flash. Indicates the Inverter circuit is working. Indicates grid. 9-3. Operation Button The INFORMATION/SELECT button controls LCD settings and has three functions. Function Operation Description...
  • Page 20 Input voltage of PV module 2 (only available for 5KW) Procedure LCD Display Frequency or voltage of AC output Voltage of AC output Procedure LCD Display Frequency of AC output Procedure LCD Display Power generation Power generation today Procedure LCD Display...

  • Page 21: Operation Mode & Display

    Total power generation since installation Procedure LCD Display 9-5. Operation Mode & Display Mode LCD Display Description Power on The inverter is initializing. mode Grid mode The inverter is feeding power to the grid. Standby The inverter is waiting for mode the DC voltage to reach a certain level so that it can...

  • Page 22: Maintenance & Cleaning

    10. Maintenance & Cleaning Check the following points to ensure proper operation of whole solar system at regular intervals. Heat sink of the inverter should be cleaned from dust.  WARNING: Although the inverter is designed in sealed IP65 enclosure, it is not recommended to use a pressure washer to clean the inverter, or use other high pressure cleaning methods that could allow water or moisture to enter the unit.

  • Page 23: Trouble Shooting

    11. Trouble Shooting When there is no information displayed in the LCD, please check if PV module connection is correctly connected. 11-1. Warning Situation There are 4 situations defined as warnings. When a warning situation occurs, icon will flash and the fault code area will display “WR” wordings. No PV module is connected flash failure Inverter initial failure...
  • Page 24 Situation Fault Icon Solution Fault Event Code (flashing) High voltage on PV module Check if the open circuit voltage of PV modules is higher than 500VDC. If PV open circuit voltage is less than 500VDC and the error message remains, pelase contact your installer.
  • Page 25 Situation Solution Fault Icon Fault Event Code (flashing) Line value consistent fail Please disconnect AC breaker between MCU & DSP first and then disconnect DC breaker. Connection failure between After LCD screen is MCU & DSP completely off, turn on DC Communication failure breaker.

  • Page 26: Specifications

    12. Specifications SP3000 Vigor MODEL SP5000 Vigor INPUT (DC) Max. DC Power 3300 W 5000W Maximum DC Voltage 500 VDC MPP Voltage Range 250 VDC ~ 500 VDC 180 VDC ~ 500 VDC DC Nominal Voltage 370 VDC Start-up Voltage / Initial Feeding...
