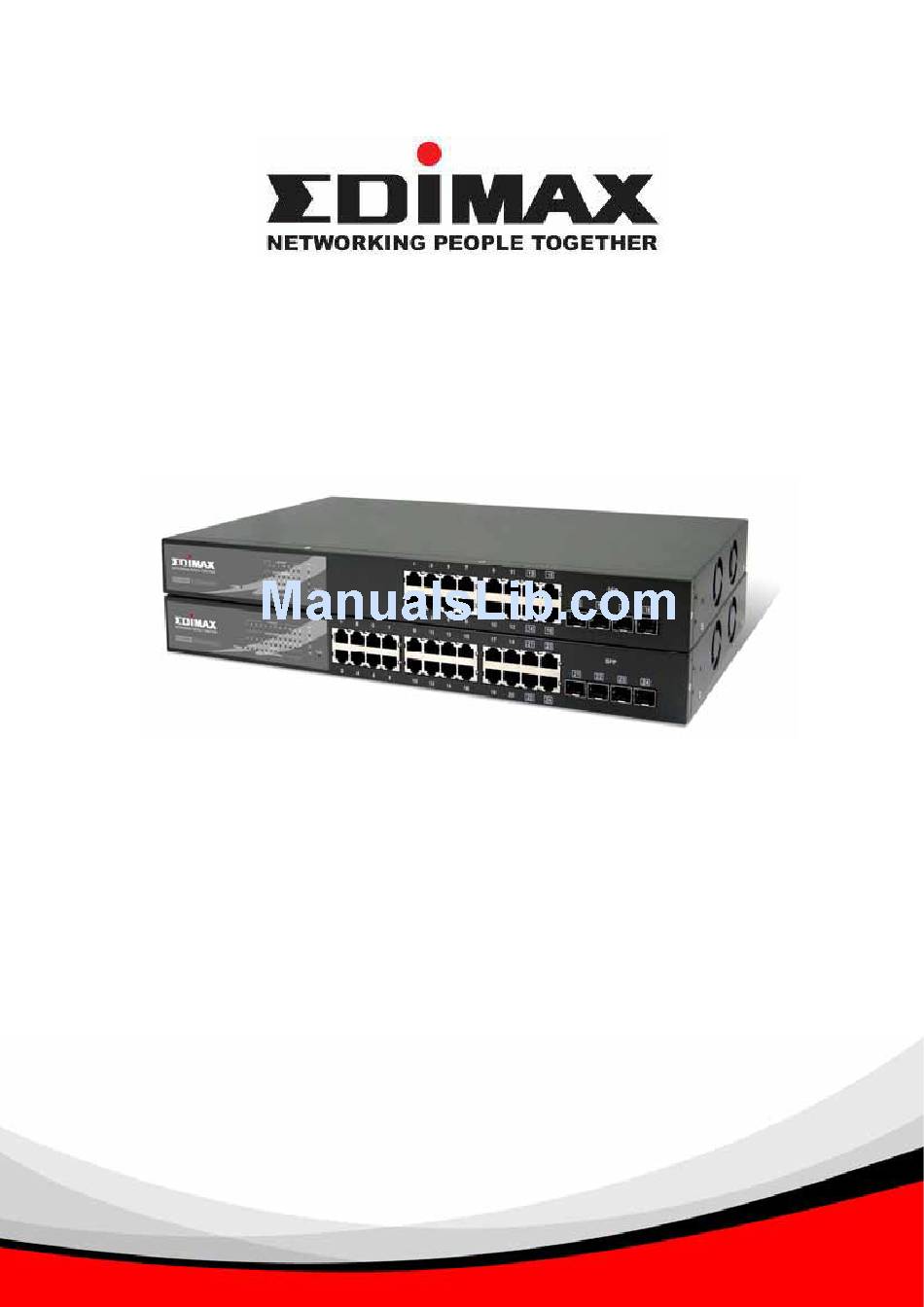

- Page 1 ES-5160G+ / ES-5240G+ Read Me First Version 1.0 / June 2007...
- Page 2 ES-5160G+ / ES-5240G+ complies with IEEE 802.3/u/x/z Gigabit and Fast Ethernet standards. The switch includes 16 or 24 10/100/1000Mbps TP ports and 4 Gigabit SFP fiber slots. The switch can be managed through Ethernet using Web-based management interface. The network administrator can logon to the switch to monitor, configure and control each port’s activity.
- Page 3 10/100/1000Mbps TP is a standard Ethernet port that meets all IEEE 802.3/u/x/z Gigabit/Fast Ethernet standard. 1000Mbps SFP Fiber transceiver is a Gigabit Ethernet port that fully complies with all IEEE 802.3z and 1000Base-SX/LX standards. 1000Mbps Single Fiber WDM (BiDi) transceiver is designed with the optic Wavelength Division Multiplexing (WDM) technology that transmits bi-directional full duplex signals over a single fiber simultaneously.
- Page 4 • Hardware • 16 or 24 10/100/1000Mbps Auto-negotiation Gigabit Ethernet TP ports • 4 1000Mbps SFP fiber slots • 400KB on-chip frame buffer • Supports jumbo frame • Programmable classifier for QoS (Layer 2/Layer 3) • 8K MAC address • Per-port shaping, policing, and broadcast storm control •...
- Page 5 1.3 Package Content: Before you start installing ES-5160G+/ ES-5240G+, please check the package contains the following items: One Gigabit 16 / 24 ports Web Smart switch One AC Power Cord One set of mounting accessory (for 19＂ rack shelf) ...
- Page 6 There are 16 TP Gigabit Ethernet ports and 4 SFP fiber slots for SFP modules on the front panel of the switch. LED display area, locating on the left side of the panel, contains a Power LED, which indicates the power status and 16 ports working status of the switch.
- Page 7 LED Indicators Color POWER Green 10/100/1000Ethernet TP Port 1 to 16 LED LINK/ACT Green Green/ 10/100/1000Mbps Amber 1000SX/LX Gigabit Fiber Port 13, 14, 15, 16 or 21, 22, 23, 24 LED SFP(LINK/ACT) Green Interfaces on the Rear Panel Function System LED Lit when +3.3V power is coming up Lit when connection with remote device is good Blinks when any traffic is present...
- Page 8 IP Address Subnet Mask Default Gateway Password User can use web interface to configure the switch with the default IP address and password. Please refer to User’s Guide in Autorun CD-ROM for details of the parameters setting. : 192.168.1.1 : 255.255.255.0 : 192.168.1.254...
