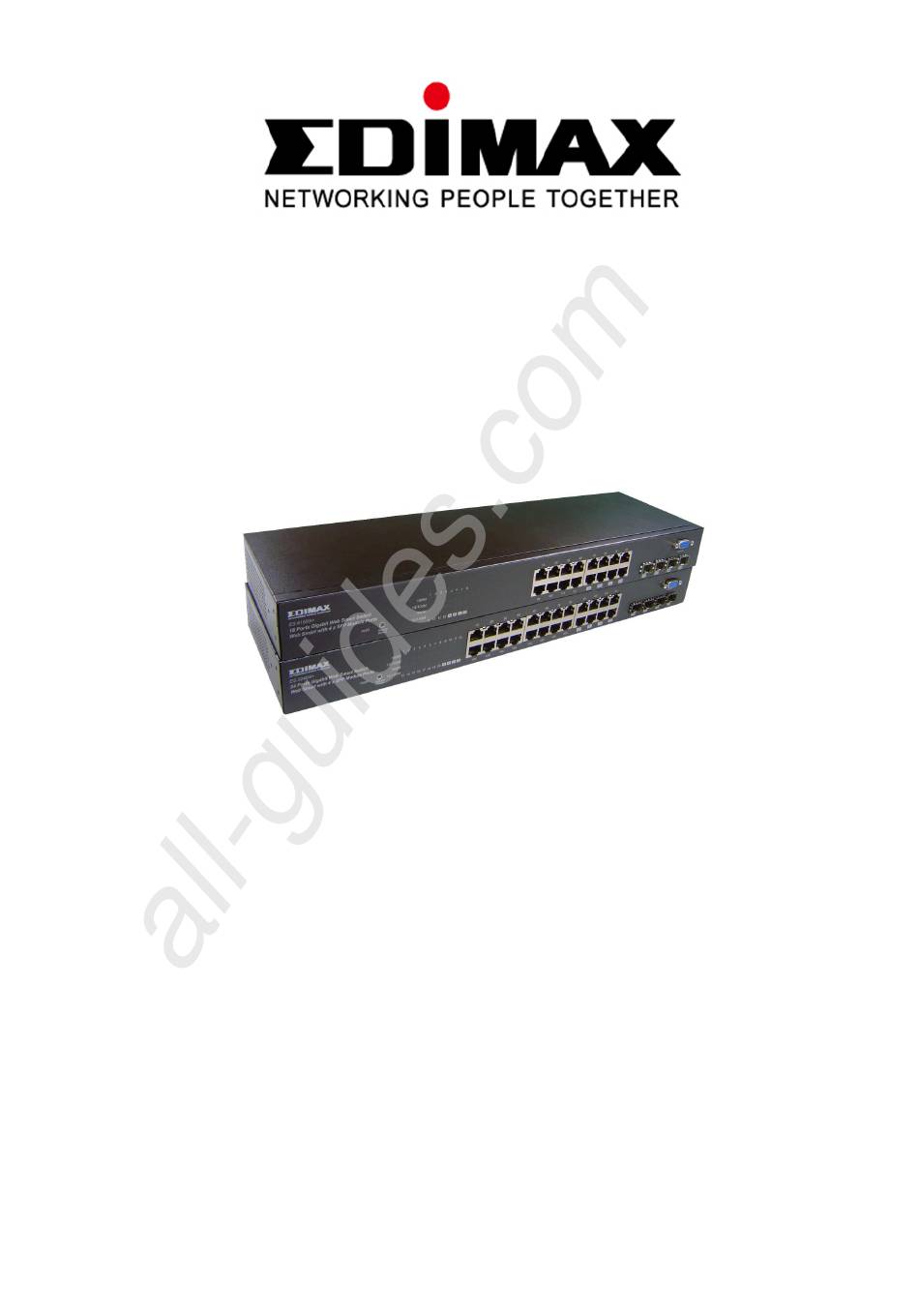

- Page 1 All manuals and user guides at all-guides.com ES-5160G+ v2 / ES-5240G+ v2 16 / 24 Ports Gigabit Web Smart Switch with 4 ports mini-GBIC User’s Manual Version 1.0 / August, 2010...
- Page 2 All manuals and user guides at all-guides.com FCC Certifications This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents Unpacking Information ............. 5 Introduction................5 General Description ..............5 Key Features................6 The Front Panel .................6 LEDs Definition ..............6 The Rear Panel ................8 Installation ................9 Desktop Installation ..............9 Rack-mount Installation .............9 Installing Network Cables ............ - Page 4 All manuals and user guides at all-guides.com PVID ..................19 Aggregation/ Trunk Configuration ..........20 LACP ..................21 RSTP..................22 802.1x ................... 24 IGMP Snooping................ 27 Quality of Service ..............28 Mirror..................30 Rate Limit................31 Storm Control ................. 32 Statistics Overview ..............
- Page 5 All manuals and user guides at all-guides.com MAC Commands..............48 VLAN Commands..............50 Aggregation Commands ............52 LACP Commands ..............53 RSTP Commands..............54 User Group Commands ............57 QoS Commands ..............58 Mirror Commands..............61 IP Commands ..............62 Dot1x Commands..............
-
Page 6: Unpacking Information
All manuals and user guides at all-guides.com Unpacking Information Thank you for purchasing the 16/24-Port Gigabit Web Smart Switch with 4-Port mini-GBIC. Before you start, please verify that your package contains the following items: 1. One 16/24-Port Gigabit Web Smart Switch with 4-Port mini-GBIC. 2. -
Page 7: Key Features
All manuals and user guides at all-guides.com Key Features 16/24 fixed 10/100/1000 Mbps Gigabit Ethernet ports for easy network connecting application. Equips 4 SFP ports for optional fiber connection. Supports auto-detection for mini-GBIC module inset. Supports Port Mirror. Supports 8 groups aggregation. Supports QoS function, tag base, DSCP priority. - Page 8 All manuals and user guides at all-guides.com LED for each port: The switch provides one “1000M” LED and one “10/100M” LED for each port. 1000M LED: Shows the current transmitting/receiving speed of the port. 10/100M LED: Shows the link status and the activities on the port. Status Operation Green...
-
Page 9: The Rear Panel
All manuals and user guides at all-guides.com Restore Default Button You can use this button to reset the switch or restore factory default settings. To reset the switch, press the button once. To restore factory default settings, press and hold the button for three seconds. -
Page 10: Installation
All manuals and user guides at all-guides.com Installation This switch can be placed on your desktop directly, or mounted in a rack. Please refer to the instructions for installation. Before installing the switch, we recommend: The switch is placed with appropriate ventilation environment. A minimum 25 mm space around the unit is recommended. -
Page 11: Installing Network Cables
All manuals and user guides at all-guides.com Installing Network Cables 1. Crossover or straight-through cable: All the ports on the switch support Auto-MDI/MDI-X functionality. Both straight-through crossover cables can be used as the media to connect the switch with PCs as well as other devices like switches, hubs or router. 2. -
Page 12: Functional Description
All manuals and user guides at all-guides.com Functional Description Jumbo Frame With Jumbo Frame supported, it is allowed for the switch to transport identical data in fewer frames. Hence helps to ensure fewer overheads, shorten processing time, and reduce interruptions. Note: To enable Jumbo Frame, Flow Control should be enabled in advance. -
Page 13: Management Guide
All manuals and user guides at all-guides.com Management guide Access the management interface of the Switch This section instructs you how to enter and proceed with the advanced management capability, which can be accessed through console port or Internet Browser over the network (in-band). Manage the device via command line interface To start-up the command line interface, please connect a PC COM port to the RS-232 connector and activate a terminal emulation software (e.g. - Page 14 All manuals and user guides at all-guides.com 1. Running your Web Browser and enter the IP address “192.168.2.1” in the Address field. 2. Key in the password 1234 (default value) to pass the authentication. Also, you can initialize the Password in the configuration of System. 3.
-
Page 15: System
All manuals and user guides at all-guides.com System The System window provides the switch information and allows users to configure the switch properties. - Page 16 All manuals and user guides at all-guides.com Items Functions MAC Address The MAC address of this device.. S/W Version The software version of this device. H/W Version The hardware version of this device. Active IP Address The current IP address of the switch Active Subnet Mask The current Subnet Mask of the switch Active Gateway...
-
Page 17: Port
All manuals and user guides at all-guides.com Port This Port Configuration page shows the link status of each port and allows users to configure speed, flow control for each port. -
Page 18: Vlan
All manuals and user guides at all-guides.com Items Functions Enable Jumbo Frames Check the box to enable jumbo frames. You can enable jumbo frames to support data packets up to 9600 bytes in size. PERFECT_REACH/Power There are four options for power saving mode as the Saving Mode below: Full;... - Page 19 All manuals and user guides at all-guides.com VLAN group 1. Select the VLAN group, click “Modify”, then setup the Port as the members of this VLAN group by clicking those marked checkboxes. Finally, click the “Apply” button to execute. 2. Select the VLAN ID of the VLAN you want in the VLAN Configuration List, then click “Delete”...
-
Page 20: Pvid
All manuals and user guides at all-guides.com PVID When the VLAN-enabled switch receives a tagged packet, the packet will be sent to the port’s default VLAN according to the PVID (port VLAN ID) of the receiving port. Click “Port Config”, the page of VLAN Per Port Configuration pops up. -
Page 21: Aggregation/ Trunk Configuration
All manuals and user guides at all-guides.com Aggregation/ Trunk Configuration This page shows the aggregation groups and the aggregation mode. To set up the Port trunk groups, put the ports number into the same Aggregation group. There are eight groups to choose. Don’t forget to click “Apply”... -
Page 22: Lacp
All manuals and user guides at all-guides.com LACP This switch supports both static trunking and dynamic Link Aggregation Control Protocol (LACP). LACP configured ports can automatically negotiate a trunked link with LACP-configured ports on another device. You can configure any number of ports on the switch as LACP, as long as they are not already configured as part of a static trunk. -
Page 23: Rstp
All manuals and user guides at all-guides.com RSTP Rapid Spanning Tree Protocol (IEEE 802.1w) supports connections to RSTP nodes by monitoring the incoming protocol messages and dynamically adjusting the type of protocol messages the RSTP node transmits If RSTP is using 802.1D BPDUs on a port and receives an RSTP BPDU after the migration delay expires, RSTP restarts the migration delay timer and begins using RSTP BPDUs on that port. - Page 24 All manuals and user guides at all-guides.com Items Functions System Priority Used in selecting the root device, root port, and designated port. The device with the highest priority becomes the STA root device. Hello Time Interval (in seconds) at which the root device transmits a configuration message Max Age The maximum time (in seconds) a device can wait without...
-
Page 25: 802.1X
All manuals and user guides at all-guides.com 802.1x The IEEE 802.1X standard defines a port-based access control procedure that prevents unauthorized access to a network by requiring users to first submit credentials for authentication. When 802.1X is enabled, you need to configure the parameters for the authentication process that runs between the client and the switch (i.e., authenticator), as well as the client identity lookup process that runs between the switch and authentication server. - Page 26 All manuals and user guides at all-guides.com Items Functions Mode Indicates if authentication is enabled or disabled on the port. (Default: Disabled) RADIUS IP Set the RADIUS server IP Address RADIUS UDP Port Set the RADIUS server network port RADIUS Secret Set the RADIUS encryption key Admin State Sets the authentication mode to one of the following...
- Page 27 All manuals and user guides at all-guides.com Some other parameters would be indicated after click button “Parameters” as the following: Items Functions Reauthentication Set Reauthentication to be enabled or disabled on the Enabled port. Reauthentication Set the time period after which a connected client must Period be re-authenticated.
-
Page 28: Igmp Snooping
All manuals and user guides at all-guides.com IGMP Snooping You can configure the switch to forward multicast traffic intelligently. Based on the IGMP query and report messages, the switch forwards traffic only to the ports that request multicast traffic. This prevents the switch from broadcasting the traffic to all ports and possibly disrupting network performance. -
Page 29: Quality Of Service
All manuals and user guides at all-guides.com Quality of Service QoS enhances the communication quality by giving different precedence to classified packets. This switch provides QoS Disabled, 802.1P and DSCP modes: Select the QoS Mode (1) 802.1p In IEEE 802.1p priority mode, when a switch port receives an untagged frame (a frame without priority tag), the port's default priority tag will be inserted into the frame before any other process. - Page 30 All manuals and user guides at all-guides.com (2) DSCP This page is revealed when the “DSCP” mode is configured as shown below. The DSCP mode QoS gives packet priority by the types of the incoming packets. DSCP value’s range is between 0 and 63. Give the priorities as normal/high/low for each precedence types, then click “Apply”...
-
Page 31: Mirror
All manuals and user guides at all-guides.com Mirror The Mirror function copies all the packets that are transmitted by the source port to the destination port. It allows administrators to analyze and monitor the traffic of the monitored ports. Mirror Configuration: 1. -
Page 32: Rate Limit
All manuals and user guides at all-guides.com Rate Limit This function allows the network manager to control the maximum rate for traffic transmitted or received on an interface. Rate limiting is configured on interfaces at the edge of a network to limit traffic into or out of the switch. Traffic that falls within the rate limit is transmitted, while packets that exceed the acceptable amount of traffic are dropped. -
Page 33: Storm Control
All manuals and user guides at all-guides.com Storm Control This “storm Control” page allows users to configure the rules for Storm Control. The allowed frame rates for ICMP frames, learn frames, multicasts, broadcasts and flooded unicasts are controlled using a central storm controller. -
Page 34: Detailed Statistics
All manuals and user guides at all-guides.com Detailed Statistics The Detailed Statistics is provided for users to see the detailed transmitting and receiving status of each port. Please click the hyperlinks above to select a port. You may also click the “Clear” button to clean all statistics or click the “Refresh”... -
Page 35: Lacp Status
All manuals and user guides at all-guides.com LACP Status LACP Status is provided for users to see the detailed LACP Aggregation status of each port. You may also click the “Refresh” button to renew the info. -
Page 36: Rstp Status
All manuals and user guides at all-guides.com RSTP Status RSTP Status is provided for users to see the detailed RSTP VLAN Bridge status for each port. You may also click the “Refresh” button to renew the info. Bridge ID – A unique identifier for this bridge, consisting of the bridge priority and MAC address (where the address is taken from the switch system). -
Page 37: Igmp Status
All manuals and user guides at all-guides.com IGMP Status IGMP Status is provided for users to see the detailed status of each port. You may also click the “Refresh” button to renew the info. IGMP Querier: Set or Show IGMP querier state per VLAN. -
Page 38: Ping
All manuals and user guides at all-guides.com Ping The ping function is to test the connectedness of the link between the switch and destination. Configure the following parameters, then click “Apply” to ping the connectedness. Target IP Address: Indicates the IP Address of the test destination. Count: Number of echo requests to send (default: 1). -
Page 39: Warm Restart
All manuals and user guides at all-guides.com Warm Restart To restart the system, click the “Yes” button. The system restarts and shows the authentication window. Please fill in the username and password to continue. Factory Default Restore Factory Default: To restore the factory default value, click the Yes button. Note: The IP address of the device will also be configured as factory-default setting, which is 192.168.2.1. -
Page 40: Product Specifications
All manuals and user guides at all-guides.com Product Specifications IEEE802.3 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3x full-duplex operation and flow control Standard IEEE802.3ab/z 1000 BASE-T IEEE802.1Q VLAN interoperability IEEE802.1p Priority Operation 16/24* 10/100/1000 Mbps auto MDI/MDI-X RJ-45 switching ports Interface 4* SFP (mini-GBIC) port 1 * Restore Default Button RJ-45 (10 BASE-T): Category 3,4,5 UTP/STP... -
Page 41: Appendix- Command Line Interface
All manuals and user guides at all-guides.com Appendix- Command Line Interface Start-up and Terminal configuration To start-up the command line interface, please connect a PC COM port to the RS-232 connector and activate a terminal emulation software (e.g. HyperTerminal of Windows). The terminal emulation software should be started as the following configuration: 1. -
Page 42: Command Hierarchy
All manuals and user guides at all-guides.com Command Hierarchy After logging in, press ? + <enter> to show the 9 command groups. Press ? or help to get help. The help depends on the context: - At top level, a list of command groups will be shown. - At group level, a list of the command syntaxes will be shown. -
Page 43: Command Description
All manuals and user guides at all-guides.com CVS Tag: sw_8051_2_34d Compile Date: Sep 21 2009 11:26:36 H/W Version: 1.0 MAC address: 00-08-54-00-00-31 SNMP: enabled Trap IP: 0.0.0.0 Readcommunity: public Writecommunity: private Trapcommunity: public You can type “up” and press <enter> to go back to upper level. Command Description The following session introduces the command structure of the command line interface. - Page 44 All manuals and user guides at all-guides.com System Configuration [all] Description: Show system name, software version, hardware version and management MAC address. Optionally show the full configuration [all]: Show the total switch configuration (default: System configuration only) System Restore Default [keepIP] Description: Restore factory default configuration.
- Page 45 All manuals and user guides at all-guides.com Readcommunity [<community string>] Description: Set or show SNMP read community string. [<community string>]: New community string. (default: Show current value). Writecommunity [<community string>] Description: Set or show SNMP write community string. [<community string>]: New community string. (default: Show current value).
-
Page 46: Console Commands
All manuals and user guides at all-guides.com Console Commands Commands at Console level: Console Configuration Console Password [<password>] Console Timeout [<timeout>] Console Prompt [<prompt string>] Console Configuration Description: Show configured console password and timeout. Console Password [<password>] Description: Set or show the console password. The empty string ("") disables the password check. -
Page 47: Port Commands
All manuals and user guides at all-guides.com Port Commands Commands at Port level: Port Configuration [<portlist>] Port Mode [<portlist>] [<mode>] Port Flow Control [<portlist>] [enable|disable] Port State [<portlist>] [enable|disable] Port MaxFrame [<portlist>] [<framesize>|reset] Port Statistics [<portlist>] [clear] Port Excessive Collisions Drop [enable|disable]------ #Note: If you want to change maxframe bigger than 1518, the [Flow Control] should be enabled! Port Configuration [<portlist>]... - Page 48 All manuals and user guides at all-guides.com Port State [<portlist>] [enable/disable] Description: Set or show the state for the port. [<portlist>] : Port list (default: All ports). [enable|disable]: Enable or disable port state (default: Show state). Port MaxFrame [<portlist>] [<framesize>|reset] Description: Set or show the maximum frame size in bytes (including FCS) for frames received on the port.
-
Page 49: Mac Commands
All manuals and user guides at all-guides.com MAC Commands Commands at MAC level: MAC Configuration MAC Add <macaddress> <portlist>|none [<vid>] MAC Delete <macaddress> [<vid>] MAC Lookup <macaddress> [<vid>] MAC Table <vidlist> MAC Flush MAC Agetime [<agetime>] MAC Configuration Description: Show the permanently stored MAC table and the MAC ageing timer. MAC Add <macaddress>... - Page 50 All manuals and user guides at all-guides.com dashes or colons (e.g. 010203ABCDEF or 01-02-03-AB-CD-EF or 01:02:03:AB:CD:EF). [<vid>] : VLAN ID, 1-4094 (default: 1). MAC table <vidlist> Description: Show the MAC address table for VLAN ID list. <vidlist> : VLAN ID list. MAC Flush Description: Removes non-locked entries from the switch MAC table.
-
Page 51: Vlan Commands
All manuals and user guides at all-guides.com VLAN Commands Commands at VLAN level: VLAN Configuration [<portlist>] VLAN Add <vidlist> [<portlist>] VLAN Delete <vidlist> VLAN Lookup <vidlist> VLAN Aware [<portlist>] [enable|disable] VLAN PVID [<portlist>] [<vid>|none] VLAN Frame Type [<portlist>] [all|tagged] VLAN Ingress Filtering [<portlist>] [enable|disable] VLAN Configuration [<portlist>] Description: Show the VLAN aware mode, port VLAN ID and accepted frame type for the... - Page 52 All manuals and user guides at all-guides.com VLAN Aware [<portlist>] [enable|disable] Description: Set or show the VLAN awareness mode for the port. VLAN aware ports will strip the VLAN tag from received frames and insert the tag in transmitted frames (except PVID). VLAN unaware ports will not strip the tag from received frames or insert the tag in transmitted frames.
-
Page 53: Aggregation Commands
All manuals and user guides at all-guides.com Aggregation Commands Commands at Aggr level: Aggr Configuration Aggr Add <portlist> Aggr Delete <portlist> Aggr Lookup <portlist> Aggr Mode [smac|dmac|xor] Aggr Configuration Description: Shows the aggregation groups and the aggregation mode. Aggr Add <portlist> Description: Add link aggregation group including ports. -
Page 54: Lacp Commands
All manuals and user guides at all-guides.com LACP Commands Commands at LACP level: LACP Configuration [<portlist>] LACP Mode [<portlist>] [enable|disable] LACP Key [<portlist>] [<key>|auto] LACP Status LACP Statistics LACP Configuration [<portlist>] Description: Show LACP configuration. [<portlist>]: Port list (Default: All ports). LACP Mode [<portlist>] [enable|disable] Description: Enable or disable the LACP protocol on ports <portlist>. -
Page 55: Rstp Commands
All manuals and user guides at all-guides.com RSTP Commands Commands at RSTP level: RSTP Configuration [<portlist>] RSTP sysprio [<sysprio>] RSTP hellotime [<secs>] RSTP maxage [<hops>] RSTP fwddelay [<secs>] RSTP version [normal|compat] RSTP Mode [<portlist>] [enable|disable] RSTP Aggr [enable|disable] RSTP Edge [<portlist>] [enable|disable] RSTP Pathcost [<portlist>] [<pathcost>|auto] RSTP mcheck <portlist>... - Page 56 All manuals and user guides at all-guides.com RSTP maxage [<hops>] Description: Set or show the RSTP System Max Age. [<hops>]: Number between 6 - 40 (default is 20) RSTP fwddelay [<secs>] Description: Set or show the RSTP System Forward delay. [<secs>]: Number between 4 - 30 (default is 15) RSTP version [normal|compat] Description:...
- Page 57 All manuals and user guides at all-guides.com RSTP pathcost [<portlist>] [<pathcost>|auto] Description: Set the RSTP pathcost on ports <portlist>. [<portlist>]: Port list (Default: All ports). [<pathcost>]: Number between 1 - 200000000. Auto means auto generated pathcost RSTP mcheck <portlist> Description: Force a recheck of the RSTP protocol on the ports in <portlist>.
-
Page 58: User Group Commands
All manuals and user guides at all-guides.com User Group Commands Commands at User Group level: User Group Configuration User Group Add <grouplist> [<portlist>] User Group Delete <grouplist> User Group Lookup <grouplist> User Group Configuration Description: Show the user groups. User Group Add <grouplist> [<portlist>] Description: Add user group entry including the ports. -
Page 59: Qos Commands
All manuals and user guides at all-guides.com QoS Commands Commands at QoS level: QoS Configuration [<portlist>] QoS Mode [<portlist>] [tag|port|diffserv] QoS Default [<portlist>] [<class>] QoS Tagprio [<portlist>] [<tagpriolist>] [<class>] QoS DiffServ [<dscpno>] [<class>] QoS Userprio [<portlist>] [<tagprio>] QoS Shaper [<portlist>] [enable|disable] [<rate>] QoS Policer [<portlist>] [enable|disable] [<rate>] QoS Storm Control [<traffic type>] [enable|disable] [<rate>] <class>... - Page 60 All manuals and user guides at all-guides.com QoS Tagprio [<portlist>] [<tagpriolist>] [<class>] Description: Set or show the VLAN user priority mapping. [<portlist>] : Port list (default: All ports). [<tagpriolist>]: VLAN user priority list, 0-7 (default: All user priorities). [<class>] : Internal class of service (default: Show class). QoS DiffServ [<dscpno>] [<class>] Description: Set or show the IP Differentiated Services mapping.
- Page 61 All manuals and user guides at all-guides.com [<portlist>] : Port list (default: All ports). [enable|disable] : Enable or disable policer. [<rate>] : Disable or set leaky bucket rate in Kbit/s [0k,128k,256k,384k,512k,640k,768k,896k,1024k,1152k,1280k 1408k,1536k,1664k,1792k,1920k,2048k,2176k,2304k,2432k 2560k,2688k,2816k,2944k,3072k,3200k,3328k,3456k,3584k 3712k,3840k,3968k] (default: Show policer rate 0k is disable ). QoS Storm Control [<traffic type>] [enable|disable] [<rate>] Description: Set or show the storm control configuration.
-
Page 62: Mirror Commands
All manuals and user guides at all-guides.com Mirror Commands Commands at Mirror level: Mirror Configuration Mirror Port [<port>] Mirror Source [<portlist>] [enable|disable] Mirror Configuration Description: Show the mirror destination port and mirror mode for source ports. Mirror Port [<port>] Description: Set or show the mirror destination port. -
Page 63: Ip Commands
All manuals and user guides at all-guides.com IP Commands Commands at IP level: IP Configuration IP Status IP Setup [<ipaddress> [<ipmask> [<ipgateway>]]] [<vid>] IP Mode [enable|disable] IP Ping [-n <count>] [-w <timeout>] <ipaddress> IP Arp IP Dhcp [enable|disable] IP Configuration Description: Show IP configured IP address, mask, gateway, VLAN ID and mode. - Page 64 All manuals and user guides at all-guides.com IP Arp Description: Show the content of the ARP table. IP DHCP [enable|disable] Description: Activate or deactivate the DHCP protocol. [enable|disable]: Enable/disable DHCP (default: Show DHCP mode).
-
Page 65: Dot1X Commands
All manuals and user guides at all-guides.com Dot1x Commands Commands at Dot1x level: Dot1x Configuration Dot1x Mode [enable|disable] Dot1x State [<portlist>] [Auto|ForceAuthorized|ForceUnauthorized] Dot1x Server [<IP Address>] Dot1x UDP Port [<value>] Dot1x Secret [<Shared Secret>] Dot1x Statistics [<portlist>] Dot1x Reauthenticate [<portlist>] [now] Dot1x Parameters [<parameter>] [<value>] Dot1x Configuration Description:... - Page 66 All manuals and user guides at all-guides.com Dot1x UDP Port [<value>] Description: Set up UDP Port for the external RADIUS server. [<value>]: The UDP port the RADIUS server listens to (default: Show current configuration). Dot1x Secret [<Shared Secret>] Description: Set or show the secret shared with the RADIUS server. [<Shared Secret>]: Shared secret shared with external RADIUS server.
-
Page 67: Igmp Commands
All manuals and user guides at all-guides.com IGMP Commands Commands at IGMP level: IGMP Configuration IGMP Status IGMP Groups <vidlist> IGMP Mode [enable|disable] IGMP State <vidlist> [enable|disable] IGMP Querier <vidlist> [enable|disable] IGMP Router ports [<portlist>] [enable|disable] IGMP Unregistered Flood [enable|disable] Ratelimit Configuration IGMP Configuration Description:... -
Page 68: Debug Commands
All manuals and user guides at all-guides.com IGMP Router ports [<portlist>] [enable|disable] Description: Set or show IGMP administrative router ports. (default: Show current router ports) IGMP Unregistered Flood [enable|disable] Description: Set or show forwarding mode for unregistered (not-joined) IP multicast traffic.
