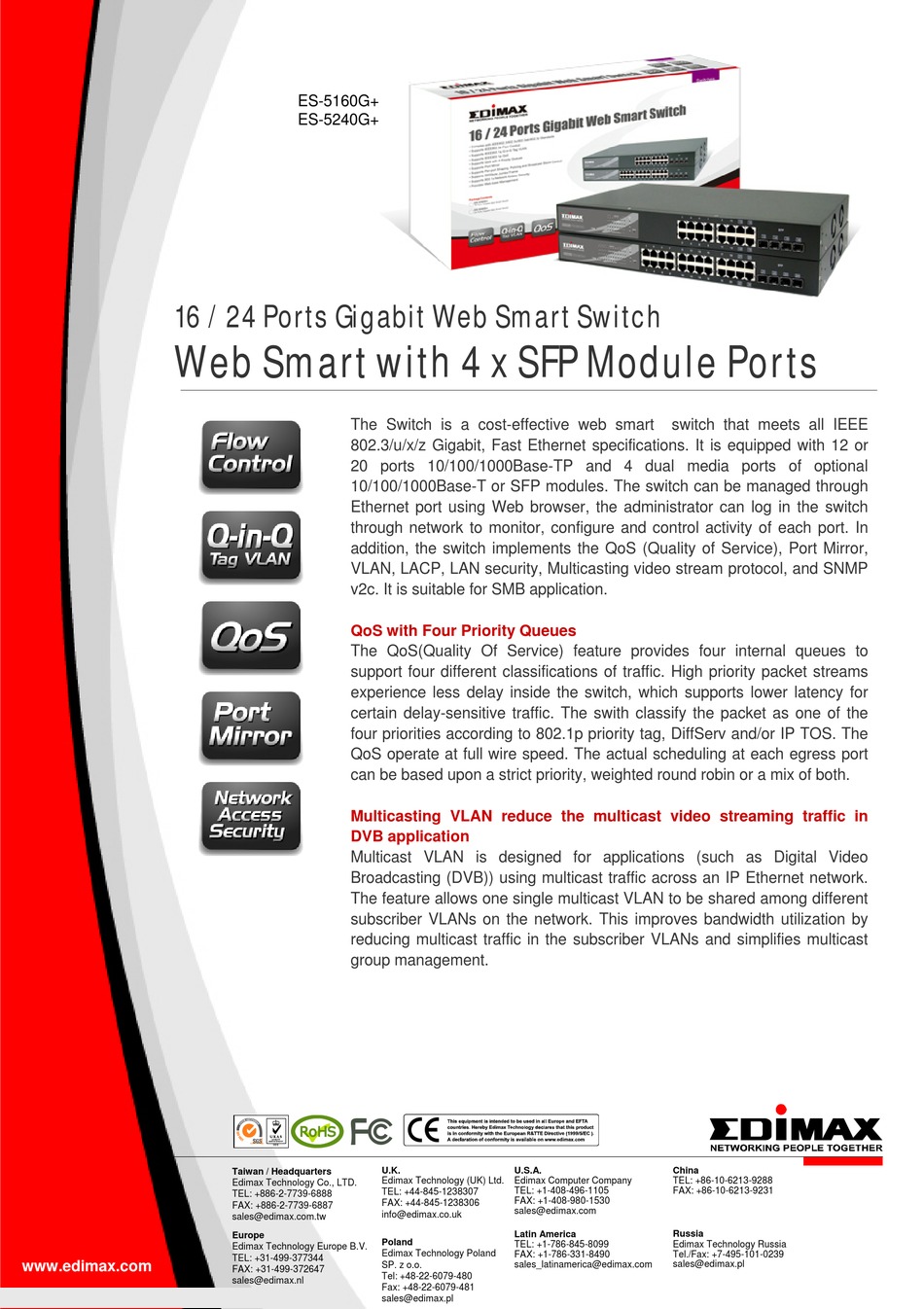

Edimax ES-5160G+ Specifications

16 / 24 Ports Gigabit Web Smart Switch
Web Smart with 4 x SFP Module Ports
www.edimax.com
ES-5160G+
ES-5240G+
The Switch is a cost-effective web smart
802.3/u/x/z Gigabit, Fast Ethernet specifications. It is equipped with 12 or
20 ports 10/100/1000Base-TP and 4 dual media ports of optional
10/100/1000Base-T or SFP modules. The switch can be managed through
Ethernet port using Web browser, the administrator can log in the switch
through network to monitor, configure and control activity of each port. In
addition, the switch implements the QoS (Quality of Service), Port Mirror,
VLAN, LACP, LAN security, Multicasting video stream protocol, and SNMP
v2c. It is suitable for SMB application.

QoS with Four Priority Queues

The QoS(Quality Of Service) feature provides four internal queues to
support four different classifications of traffic. High priority packet streams
experience less delay inside the switch, which supports lower latency for
certain delay-sensitive traffic. The swith classify the packet as one of the
four priorities according to 802.1p priority tag, DiffServ and/or IP TOS. The
QoS operate at full wire speed. The actual scheduling at each egress port
can be based upon a strict priority, weighted round robin or a mix of both.
Multicasting VLAN reduce the multicast video streaming traffic in
DVB application
Multicast VLAN is designed for applications (such as Digital Video
Broadcasting (DVB)) using multicast traffic across an IP Ethernet network.
The feature allows one single multicast VLAN to be shared among different
subscriber VLANs on the network. This improves bandwidth utilization by
reducing multicast traffic in the subscriber VLANs and simplifies multicast
group management.
