EIPL K100E Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
K100E

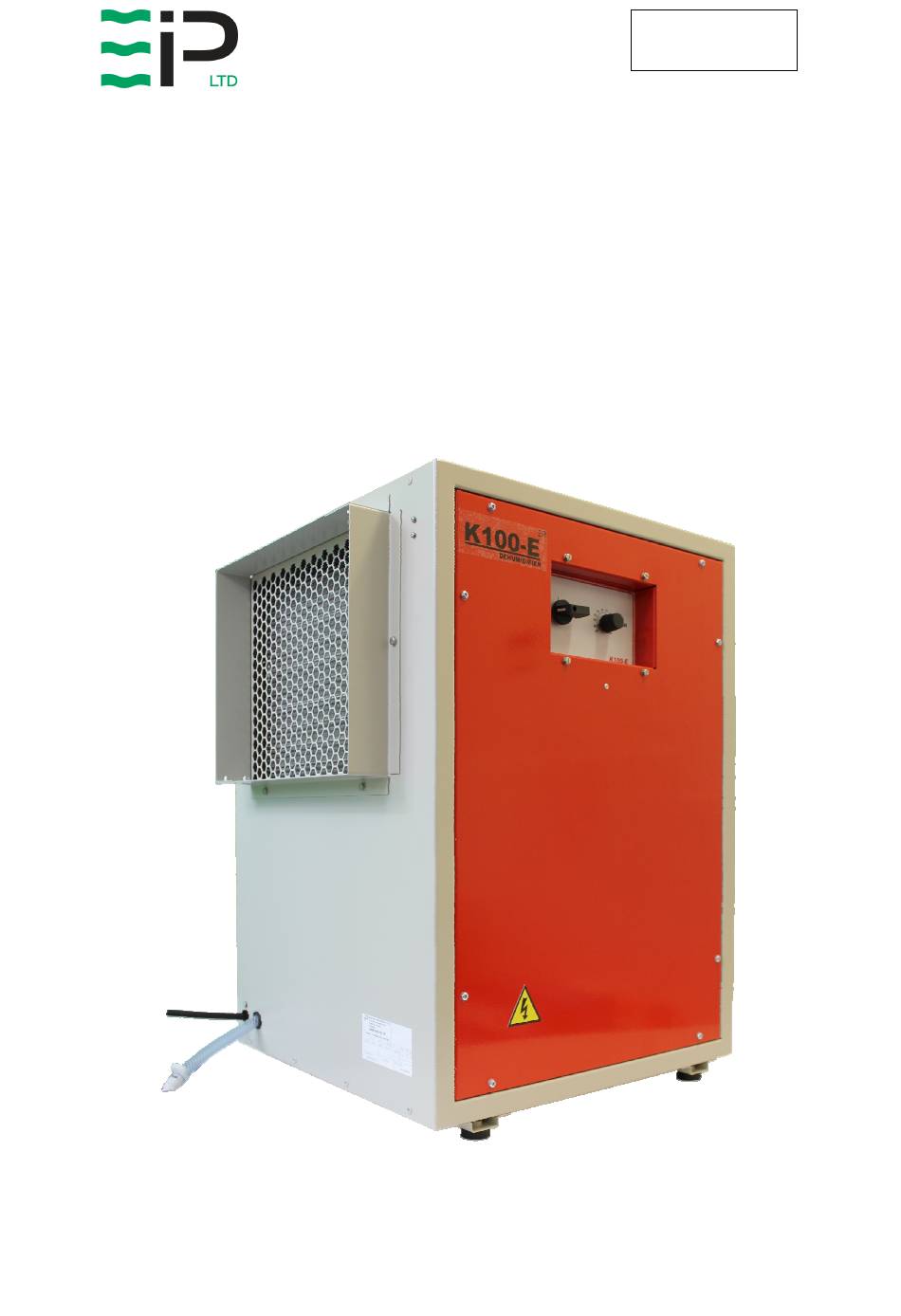

DEHUMIDIFIER
OWNER'S MANUAL
www.eipl.co.uk
Page 1 of 16
Drawing : - TPC452
Issue
: - 2
Date
: - 23/05/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K100E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EIPL K100E

Summary of Contents for EIPL K100E

  • Page 1 Drawing : - TPC452 Issue : - 2 Date : - 23/05/16 K100E DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 16...

  • Page 2: Package Contents

    Drawing : - TPC452 Issue : - 2 Date : - 23/05/16 K100E PACKAGE CONTENTS Item Description Quantity 10185GE-US Dehumidifier 1 off 3086144 Quick release hose coupling 1 off 3944110 PVC Tube – 3/8” I/D 7.8M TPC452 Manual 1 off...
  • Page 3 The K100E controls consist of an electronic humidity controller, incorporating Bluetooth connectivity and Real Time Clock, allowing the unit to interface with Android and IOS smart phones and provide additional control and data logging features.
  • Page 4 : - 2 Date : - 23/05/16 The K100E dehumidifier is a rugged reliable drying unit designed to operate effectively over a broad range of temperature and humidity conditions. A powerful and reliable reverse cycle defrost system, controlled by an electronic timer, guarantees positive de-icing and thereby optimizing operation at low temperatures.

  • Page 5: Specifications

    Drawing : - TPC452 Issue : - 2 Date : - 23/05/16 SPECIFICATIONS : 10185GE-US ODEL : 27.2” (692mm) EIGHT : 22.8” (580mm) IDTH : 18.3” (464mm) EPTH : 117 Lbs (53Kg) EIGHT : 300 CFM (510 M3/Hr) IRFLOW : 110V 1Ph 60Hz OWER UPPLY 1500 W (max)

  • Page 6: Installation

    Earth (ground) DRAINAGE: The K100E has a water pump fitted as standard which is capable of discharging the condensate water 20ft vertical lift away from the unit & 100ft horizontal. The water can, therefore, be discharged into a drain some distance away.

  • Page 7: Operation

    : - 2 Date : - 23/05/16 OPERATION The following procedures should be followed to test the K100E for correct operation: After unpacking, examine all external features to confirm damage- free shipment. Report all defects and damage at once. Connect the power cable to a grounded electrical outlet.
  • Page 8 Drawing : - TPC452 Issue : - 2 Date : - 23/05/16 If, after carrying out the above procedures, the unit does not appear to function properly, refer to the Trouble Shooting section, which follows, or contact the Factory Service Center. CAUTION: ONCE THE UNIT HAS BEEN SWITCHED OFF, WAIT AT LEAST FIVE MINUTES BEFORE RESTARTING.

  • Page 9: Routine Maintenance

    Drawing : - TPC452 Issue : - 2 Date : - 23/05/16 ROUTINE MAINTENANCE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE MAINTENACE ON ITEMS 1, 2, 3, AND 4. To ensure continued full efficiency of the dehumidifier, maintenance procedures should be performed as follows: 1.
  • Page 10 Drawing : - TPC452 Issue : - 2 Date : - 23/05/16 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the correct replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.

  • Page 11: Troubleshooting

    Drawing : - TPC452 Issue : - 2 Date : - 23/05/16 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Tighten fan 1. Loose fan on shaft 2. Replace the fan motor 2. Fan motor burnt out 3. See Routine Maintenance Little or no airflow 3.
  • Page 12 Drawing : - TPC452 Issue : - 2 Date : - 23/05/16 K100E SPARE PARTS LIST UMBER ESCRIPTION UANTITY UMBER HUMIDITY SENSOR 1619514 DEFROST TIMER 1619516 48” x2 CAPILLIARY TUBE .047 2pcs. 3014251 COMPRESSOR (R407c) 3944915 CONDENSER COIL 3020727 EVAPORATOR COIL...

  • Page 13: Limited Warranty

    Drawing : - TPC452 Issue : - 2 Date : - 23/05/16 LIMITED WARRANTY Our products carry a one-year unconditional warranty against any defects in workmanship or material. This warranty will cover all parts and labor required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit.
  • Page 14 Drawing : - TPC452 Issue : - 2 Date : - 23/05/16 Page 14 of 16...
  • Page 15 Drawing : - TPC452 Issue : - 2 Date : - 23/05/16 Page 15 of 16...
  • Page 16 DL14 9AD Germany Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Tel: +49 3043 557241 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 Fax: +49 3043 557240 www.eipl.co.uk www.ebacusa.com www.eip-ltd.de sales@eipl.co.uk sales@ebacusa.com sales@eip-ltd.de Page 16 of 16...
