Summary of Contents for EIPL ECO150

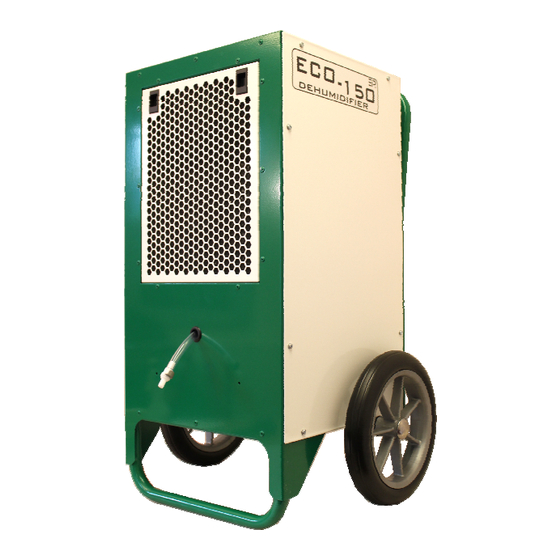

- Page 1 Drawing : - TPC378 Issue : - 1 Date : - 24/11/11 ECO150 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 12...
- Page 2 Date : - 24/11/11 INTRODUCTION Designed for a wide range of applications, the ECO150 dehumidifier is a rugged, industrial unit which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying. The ECO150 has a number of special features: •...
-
Page 3: Specifications
Drawing : - TPC378 Issue : - 1 Date : - 24/11/11 SPECIFICATIONS : ECO150 ODEL : 895mm EIGHT : 550mm IDTH : 485mm EPTH 55 kg EIGHT : 650 M IRFLOW : 36L / DAY XTRACTION 27° C / 60%RH... -
Page 4: Operation
ONCE THE UNIT HAS BEEN SWITCHED OFF, WAIT AT LEAST FIVE MINUTES BEFORE RESTARTING. After using the ECO150, turn it off for 5 minutes to allow the condensate on the coils to drain into the pump reservoir, then turn it back on and press the momentary purge switch for twenty to thirty seconds to evacuate the water from the pump reservoir. -
Page 5: Routine Maintenance
Drawing : - TPC378 Issue : - 1 Date : - 24/11/11 ROUTINE MAINTENANCE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE MAINTNENANCE To ensure continued full efficiency of the dehumidifier, maintenance procedures should be performed as follows: Clean the surface of the evaporator and condenser coils by blowing the dirt out from behind the fins with compressed air. - Page 6 Drawing : - TPC378 Issue : - 1 Date : - 24/11/11 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
-
Page 7: Troubleshooting
Drawing : - TPC378 Issue : - 1 Date : - 24/11/11 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from Unit inoperative 1. No power to unit power supply panel 1. Replace the fan motor 2. See Routine Maintenance 1. - Page 8 Drawing : - TPC378 Issue : - 1 Date : - 24/11/11 ECO150 SPARE PARTS LIST ESCRIPTION UMBER UANTITY UMBER Defrost Timer 1619508 Terminal Block 3031460 Capillary Tube 3014251 19” Solenoid Valve 3020833 Filter Dryer 3020957 Compressor 3944933 Run Capacitor...
- Page 9 Drawing : - TPC378 Issue : - 1 Date : - 24/11/11 Page 9 of 12...
- Page 10 Drawing : - TPC378 Issue : - 1 Date : - 24/11/11 Page 10 of 12...
- Page 11 Drawing : - TPC378 Issue : - 1 Date : - 24/11/11 Page 11 of 12...
- Page 12 DL14 9AD Germany Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Tel: +49 3043 557241 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 Fax: +49 3043 557240 www.eipl.co.uk www.ebacusa.com www.eip-ltd.de sales@eipl.co.uk sales@ebacusa.com sales@eip-ltd.de Page 12 of 12...
