- Page 1 Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 ECO150 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 13 To Buy: Contact Sylvane at 800-934-9194 or visit www.sylvane.com For Product Support: Contact Ebac Industrial Products at (757) 873 6800...
-
Page 2: Package Contents

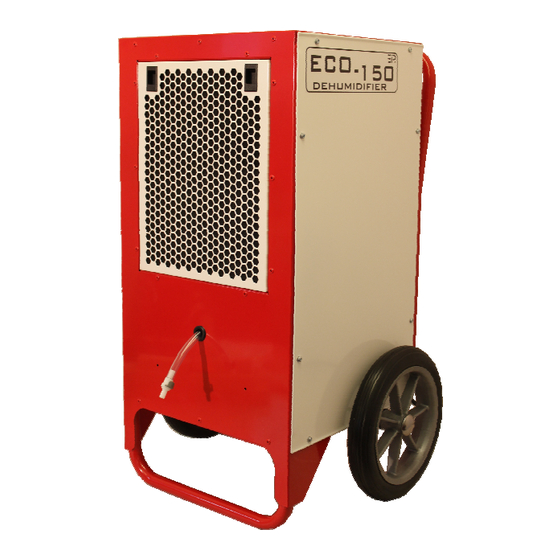

Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 UNIT PACKAGE CONTENTS Item Description Quantity 10531GR-US Dehumidifier 3086144 Quick release hose coupling 3944110 PVC Tube – 3/8” I/D 7.8M TPC380 Manual Page 2 of 13... - Page 3 Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 INTRODUCTION Designed for a wide range of applications, the ECO150 dehumidifier is a rugged, industrial unit which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying.
-
Page 4: Specifications
Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 SPECIFICATIONS : ECO150 ODEL : 35.25” EIGHT : 21.65” IDTH : 19.09” EPTH 121 lbs (55 kg) EIGHT : 383 CFM (650 M /Hr) IRFLOW : 76 Pints/day (36 L/day) XTRACTION 27°... -
Page 5: Operation
Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 OPERATION The following procedures should be followed to test the ECO150 for correct operation: After unpacking, examine all external features to confirm damage- free shipment. Report all defects and damage at once. Connect the power cable to a grounded electrical outlet. -
Page 6: Routine Maintenance
Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 ROUTINE MAINTENANCE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE MAINTNENANCE To ensure continued full efficiency of the dehumidifier, maintenance... - Page 7 Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
-
Page 8: Troubleshooting
Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from Unit inoperative 1. No power to unit power supply panel 1. Replace the fan motor 2. See Routine Maintenance 1. - Page 9 Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 ECO150 SPARE PARTS LIST ESCRIPTION UMBER UANTITY UMBER Defrost Timer 1619508 Terminal Block 3031460 Capillary Tube 3014251 19” Solenoid Valve 3020833 Filter Dryer 3020957 Compressor 3944932 Run Capacitor...
-
Page 10: Limited Warranty
Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 LIMITED WARRANTY Our products carry a one-year unconditional warranty against any defects in workmanship or material. This warranty will cover all parts and labor required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit. - Page 11 Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 Page 11 of 13...
- Page 12 Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 Page 12 of 13...
- Page 13 Drawing : - TPC380 Issue : - 2 Date : - 03/10/11 UK Head Office American Sales Office German Sales Office Ebac Industrial Products Ltd Ebac Industrial Products Inc Ebac Industrial Products Ltd St Helens Trading Estate 700 Thimble Shoals Blvd.
