Ntroduction; System Components - DAVIS Weather Monitor II Owner's Manual

1. I
N T R O D U C T I O N
The Weather Monitor II provides sophisticated monitoring and logging of
essential weather conditions such as inside and outside temperature, baromet-
ric pressure, wind direction, wind speed and wind chill. This instruction man-
ual takes you step-by-step through the process of assembling, testing, and
installing your Weather Monitor II so you can begin collecting data as soon as
possible.
The standard station comes with all the sensors necessary to monitor the essen-
tial weather conditions described above. For instructions on how to install and
operate optional accessories, such as the Rain Collector or the External Temper-
ature/Humidity Sensor, please refer to the appropriate manual.
If you have a non-standard station (e.g. Wireless or EZ-Mount), please refer to
the separate installation manual provided before continuing with this installa-
tion.
S C
YSTEM OMPONENTS

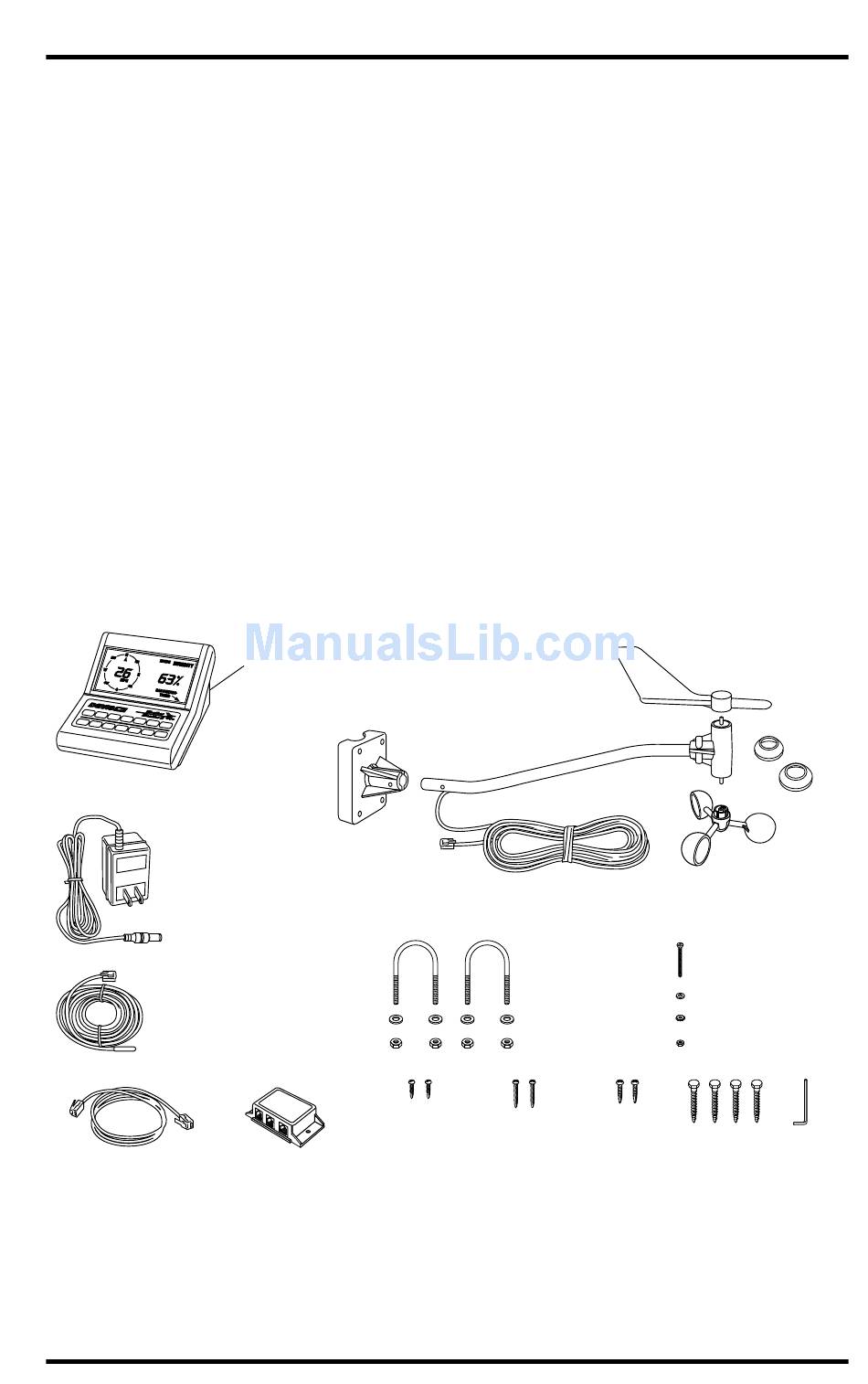

Your Weather Monitor II consists of the following components. Please check to
be sure you have all of the components listed before proceeding.
Weather Station Console
AC-Power
Adapter
External Temperature Sensor
with 25 feet (7.6 meters)
of cable
Cable Labels (not shown)
Junction Box Cable
8 feet (2.4 meters) long
Weather Monitor II
Mounting Base
attached to
bottom
of Console
Anemometer
Base
#6 x 1/2"
Pan Head
Junction Box
Self-Threading
Screws
Anemometer Arm
with 40 feet (12.2 meters)
of cable
U-Bolts
1/4" Flat Washers
1/4"– 20 Hex Nuts
#6 x 1" #8 x 3/4"
Pan Head Pan Head
Self-Threading Self-Threading
Screws

System Components

Wind Vane
Wind Cups
4–40 x 1-1/8" Pan Head
Self-Threading Screw
#4 Flat Washer
#4 Lock Washer
4–40 Hex Nut
1/4" x 1-1/2"
Lag Screws
Screws
Drip
Rings
Allen
Wrench
Page 1
