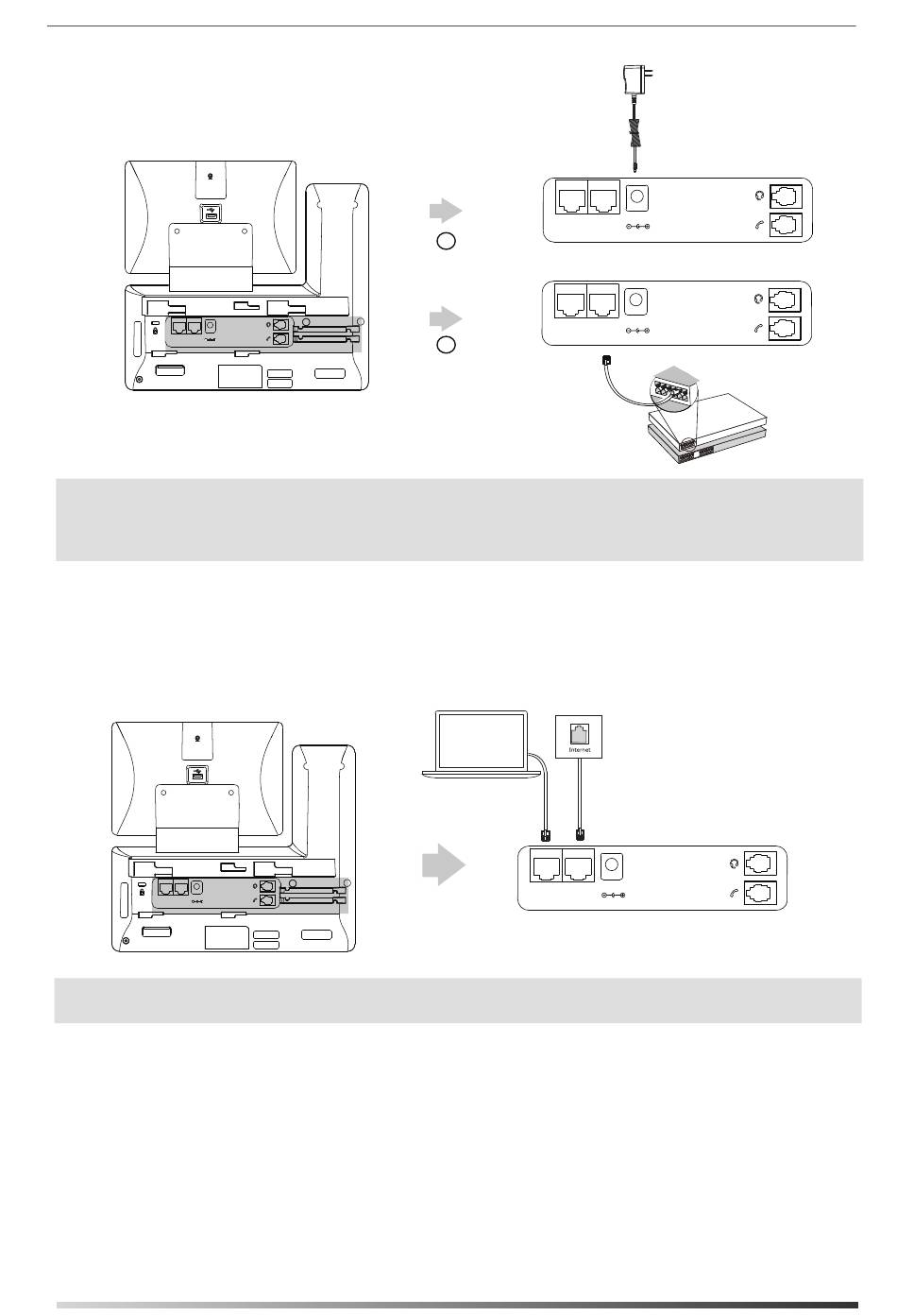

6. Connect the AC power or PoE, as shown below:
ＤＣ５Ｖ
ＰＣ
Ｉｎｔｅｒｎｅｔ
Note: The IP phone should be used with Matrix original power adapter (5V/2A) only. The use of any third-party
power adapter may cause damage to the phone.
If inline power (PoE) is provided, you do not need to connect the power adapter. Make sure the hub/switch
is PoE compliant.
7. Connect to the network, as shown below:
You have two options for network connection. You can select one of them according to the current office
environment.
a) Connect to the wired network:
ＤＣ５Ｖ
ＰＣ Ｉｎｔｅｒｎｅｔ
Note: If you are connecting a PC to your phone, we recommend that you use the Ethernet cable provided by
Matrix.
b) Connect to the wireless network:
1) Swipe down from the top of the screen to enter the control center.
2) Tap Setting->Basic->Wi-Fi.
3) Tap the On radio box in the Wi-Fi field.
The phone will automatically search for available wireless networks in your area.
4) Select an available wireless network from the list of networks.
5) If the network is secure, enter its password in the Password field.
6) Tap Connect to connect to the wireless network.
3
A
AC Power Option
B
PoE ( Power over
Ethernet ) Option
IEEE 802.3af compliant
PoE Hub/Switch
PC
PC Connection
(Optional)
ＰＣ
Power Adapter
(DC 5V)
ＤＣ５Ｖ
ＰＣ
Ｉｎｔｅｒｎｅｔ
ＤＣ５Ｖ
ＰＣ Ｉｎｔｅｒｎｅｔ
ＤＣ５Ｖ
Ｉｎｔｅｒｎｅｔ
