Dynamic Mounting DOWN AND OUT Installation And Assembly Manual page 7

3. PLACE THE MOUNT. continued
Over a shelf, cabinet, or mantel, it may be necessary to find
the mounting position that will give the greatest top to bot-
tom movement of the TV.
a. Usually the greatest vertical movement over a shelf will
be achieved when the swivel arm is at a 45º angle in the
down position.
b. In this case, attach the base of the Mount at a height
above the shelf, approximately equal to the width of the
self itself.
NOTE: In all cases check that the TV will clear the shelf
when lowered. Make sure there is at least an appropriate
'minimum clearance' .
(See "Minimum clearances" in the Appendixes.)

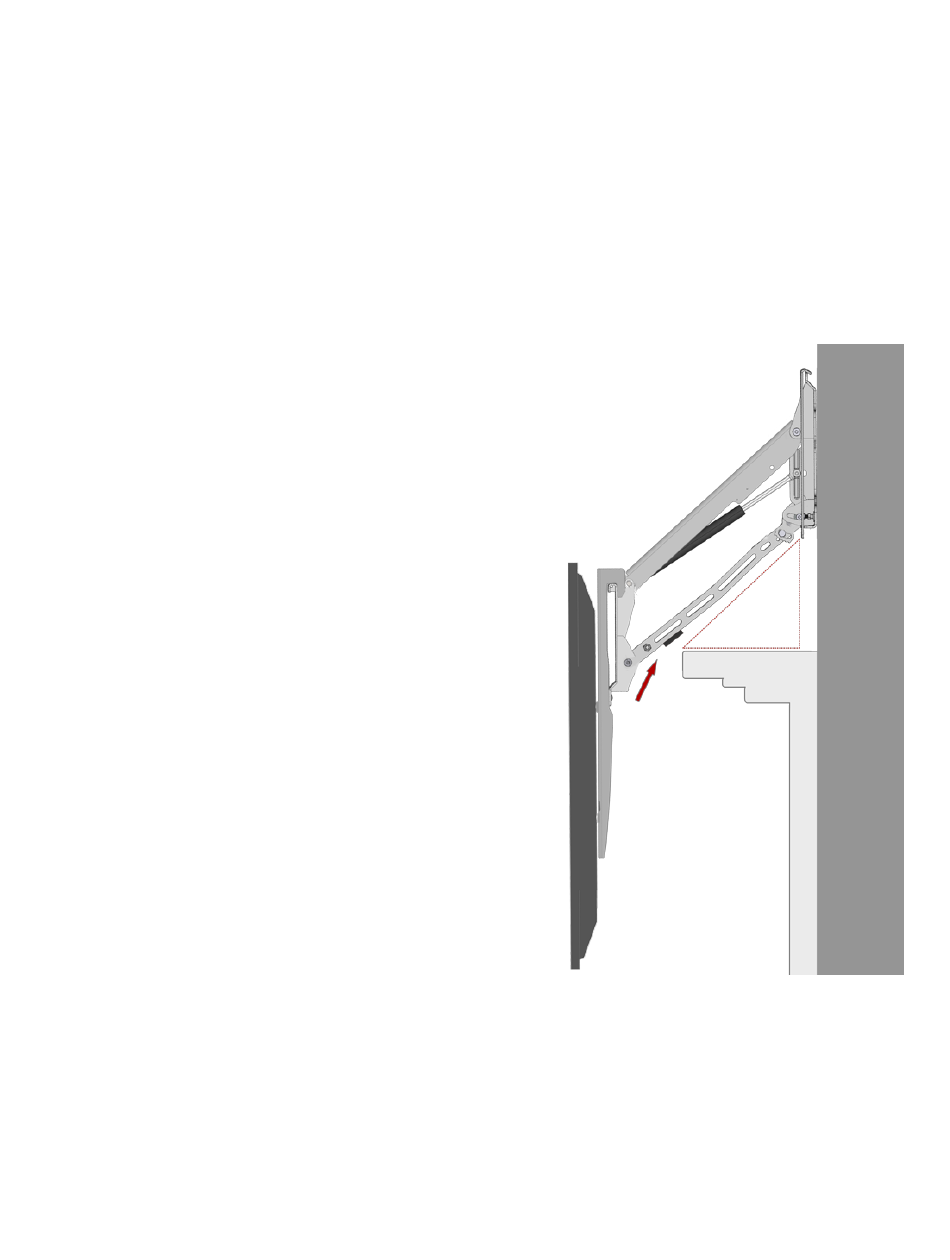

c. Attach the adhesive rubber bumpers to the underside of
the arm to protect the shelf from damage.
In most cases, the best mounting position over a shelf will be
achieved when the Mount Arm rests at a 45˙ angle in the down/
Down and Out Mount, installation and assembly.
www.DynamicMounting.com
45˚
Bumper
out position.
7
