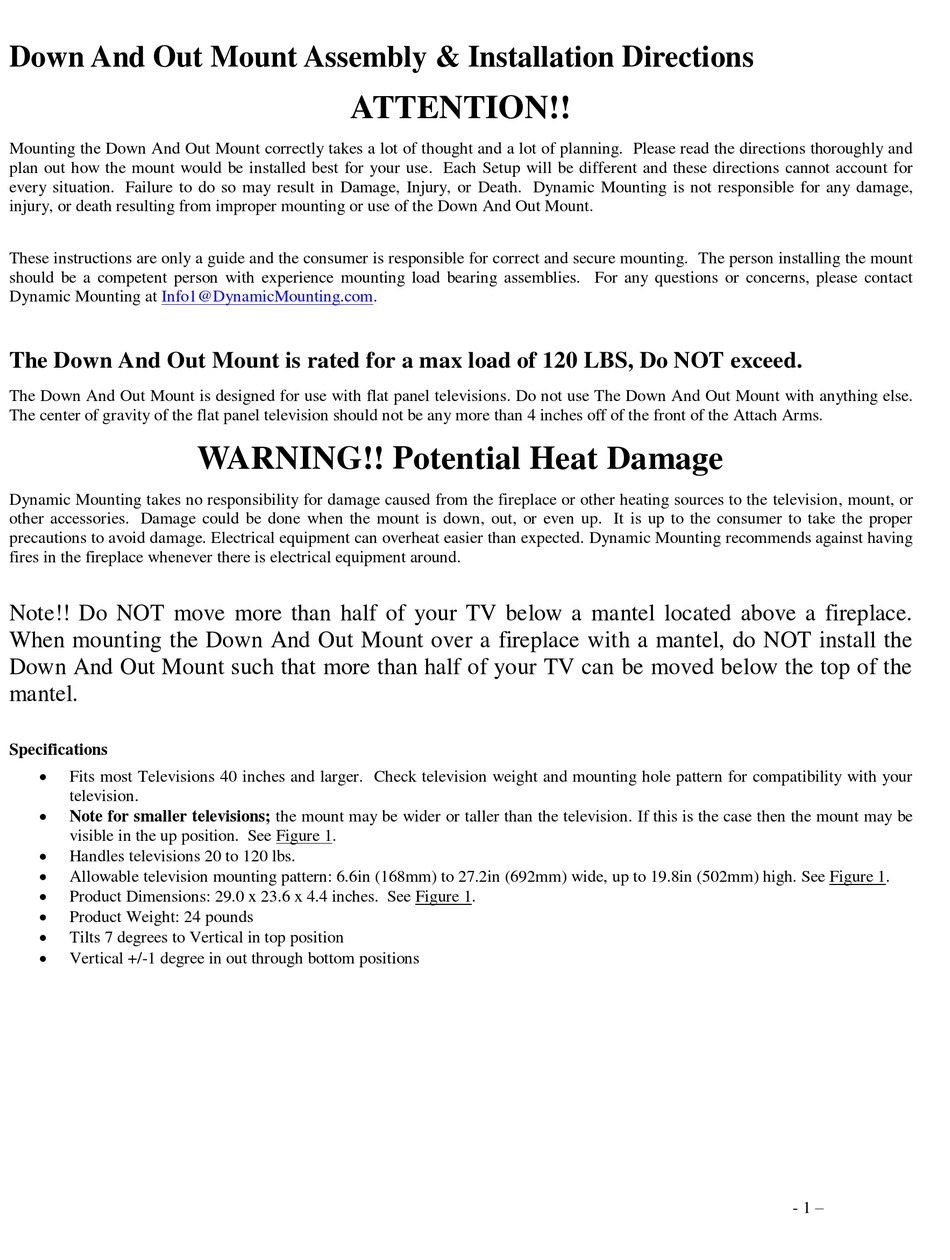

Down And Out Mount Assembly & Installation Directions
Mounting the Down And Out Mount correctly takes a lot of thought and a lot of planning. Please read the directions thoroughly and
plan out how the mount would be installed best for your use. Each Setup will be different and these directions cannot account for
every situation. Failure to do so may result in Damage, Injury, or Death. Dynamic Mounting is not responsible for any damage,
injury, or death resulting from improper mounting or use of the Down And Out Mount.
These instructions are only a guide and the consumer is responsible for correct and secure mounting. The person installing the mount
should be a competent person with experience mounting load bearing assemblies. For any questions or concerns, please contact
Dynamic Mounting at Info1@DynamicMounting.com.
The Down And Out Mount is rated for a max load of 120 LBS, Do NOT exceed.
The Down And Out Mount is designed for use with flat panel televisions. Do not use The Down And Out Mount with anything else.
The center of gravity of the flat panel television should not be any more than 4 inches off of the front of the Attach Arms.
Dynamic Mounting takes no responsibility for damage caused from the fireplace or other heating sources to the television, mount, or
other accessories. Damage could be done when the mount is down, out, or even up. It is up to the consumer to take the proper
precautions to avoid damage. Electrical equipment can overheat easier than expected. Dynamic Mounting recommends against having
fires in the fireplace whenever there is electrical equipment around.
Note!! Do NOT move more than half of your TV below a mantel located above a fireplace.
When mounting the Down And Out Mount over a fireplace with a mantel, do NOT install the
Down And Out Mount such that more than half of your TV can be moved below the top of the
mantel.
Specifications
Fits most Televisions 40 inches and larger. Check television weight and mounting hole pattern for compatibility with your
television.
Note for smaller televisions; the mount may be wider or taller than the television. If this is the case then the mount may be
visible in the up position. See Figure 1.
Handles televisions 20 to 120 lbs.
Allowable television mounting pattern: 6.6in (168mm) to 27.2in (692mm) wide, up to 19.8in (502mm) high. See Figure 1.
Product Dimensions: 29.0 x 23.6 x 4.4 inches. See Figure 1.
Product Weight: 24 pounds
Tilts 7 degrees to Vertical in top position
Vertical +/-1 degree in out through bottom positions
ATTENTION!!
WARNING!! Potential Heat Damage
- 1 –
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dynamic Mounting Down And Out Mount
Summary of Contents for Dynamic Mounting Down And Out Mount
- Page 1 The Down And Out Mount is rated for a max load of 120 LBS, Do NOT exceed. The Down And Out Mount is designed for use with flat panel televisions. Do not use The Down And Out Mount with anything else.
- Page 2 2 Attach Arms 2 #10 x 7/8 inch long machine screw with washer for mounting the Attach Arms to the Down And Out Mount (These are threaded into the Attach Arms, you need to remove before attaching TV to attach arms) ...
- Page 3 Figure 1 Mount Overall Size, Television Mounting Hole Pattern Range, Wall Mounting Hole Pattern Range Note: Mount Only Comes with 2 television Mounting Arms, Not the 4 Shown Figure 2 Side Views of Mount, Shown in the Top, Bottom, and All the Way Out Positions Top Position Out Position Bottom Position...
- Page 4 5. The mount must be securely fastened to a structure that can support 4 times the total weight of the television and mount. Dynamic Mounting assumes no responsibility for damage from an improperly installed mount. 6. The television should be centered on the mount as much as possible. If not the television will sag to one side. The heavier the TV and the more off center, the more unlevel the TV will be through its range of motion.
- Page 5 Figure 4 Mount Test Fitting Positions Mount Will Stay At The Down and Out Mount has a range of positions the mount will hold the TV at. The general range is shown in Figure 5. The mount can always stay in the top position.
- Page 6 Above Shelf Mounting To get as much downward travel as possible when mounting above a shelf it is very important that you put extra thought into the mounting process. In general, the higher the Down and Out Swivel Mount is above the shelf the more downward travel you will get.
- Page 7 Note: All measurements shown on Dynamic Mounting are approximate. The measurements could vary depending on how the mount is setup, manufacturing tolerances, and the weight of the television. Attaching the television to the Down And Out Mount After the above steps are finished you are ready to put the television on the mount.
- Page 8 Adjusting the Counterbalance The counterbalance comes out of the box set for maximum force and will need to be adjusted for the mount to work properly with your television. To adjust the counterbalance, turn the bottom of the counterbalance screw with only one 9/16 inch box or ratcheting wrench, see Figure 8.
- Page 9 Moving the Television Up and Down If the counterbalance is set up correctly the TV should be able to be pushed all of the way up into the top/locked position with reasonable effort. To unlock from this position simple pull out on the bottom of the television. To get the television all the way to the bottom position you may need to push down on the television.
-
Page 10: Warranty
Dynamic Mounting is not liable for any damage or injury caused from the use of or the inability to use our mount. To the maximum extent permitted by applicable law, Dynamic Mounting disclaims any responsibility for incidental or consequential damages.
