7. ADJUST THE TOP AND BOTTOM TILT

There are separate adjustments for the tilt in the UP and
the DOWN/OUT position. Both the left and right side of
the arm must be adjusted separately. Make sure the set-
tings on the left and right sides match.
To adjust the tilt in the UP/LOCKED position:
a. With the arm in the OUT position. Loosen the lock nut
on the top tilt adjustment cam.
b. Turn the cam and tighten the lock nut. With the cam in
the lowest position you will have the most forward tilt.
c. Adjust both the left and right sides to the same setting.
d. If you find that after adjusting the top tilt the TV no
longer locks in the UP position reduce the amount of
top tilt and retry.
To adjust the tilt for the DOWN/OUT position:
a. With the arm in the DOWN/OUT position.
b. Loosen the lock-nut on the adjustment bolt.
c. Turn the adjustment bolt to the desired tilt. Make sure
both the left and right sides are set to the same posi-
tion.
d. Tighten the lock nuts on both sides.

8. ATTACH RUBBER BUMPERS

Attach the adhesive rubber bumpers to the undersides of
the arms to protect a shelf or cabinet at the point of con-
tact.

9. ATTACH AND DRESS CABLES

You may use the zip ties as shown. Be careful not to place
the cables such that they may be pinched by the movement
of the arm.

10. HANG THE PAINTABLE WALL PLATES

The wall plates are supplied to improve the appearance of
the wall Mount when the TV is in the down position.
Down and Out Mount, installation and assembly.
www.DynamicMounting.com

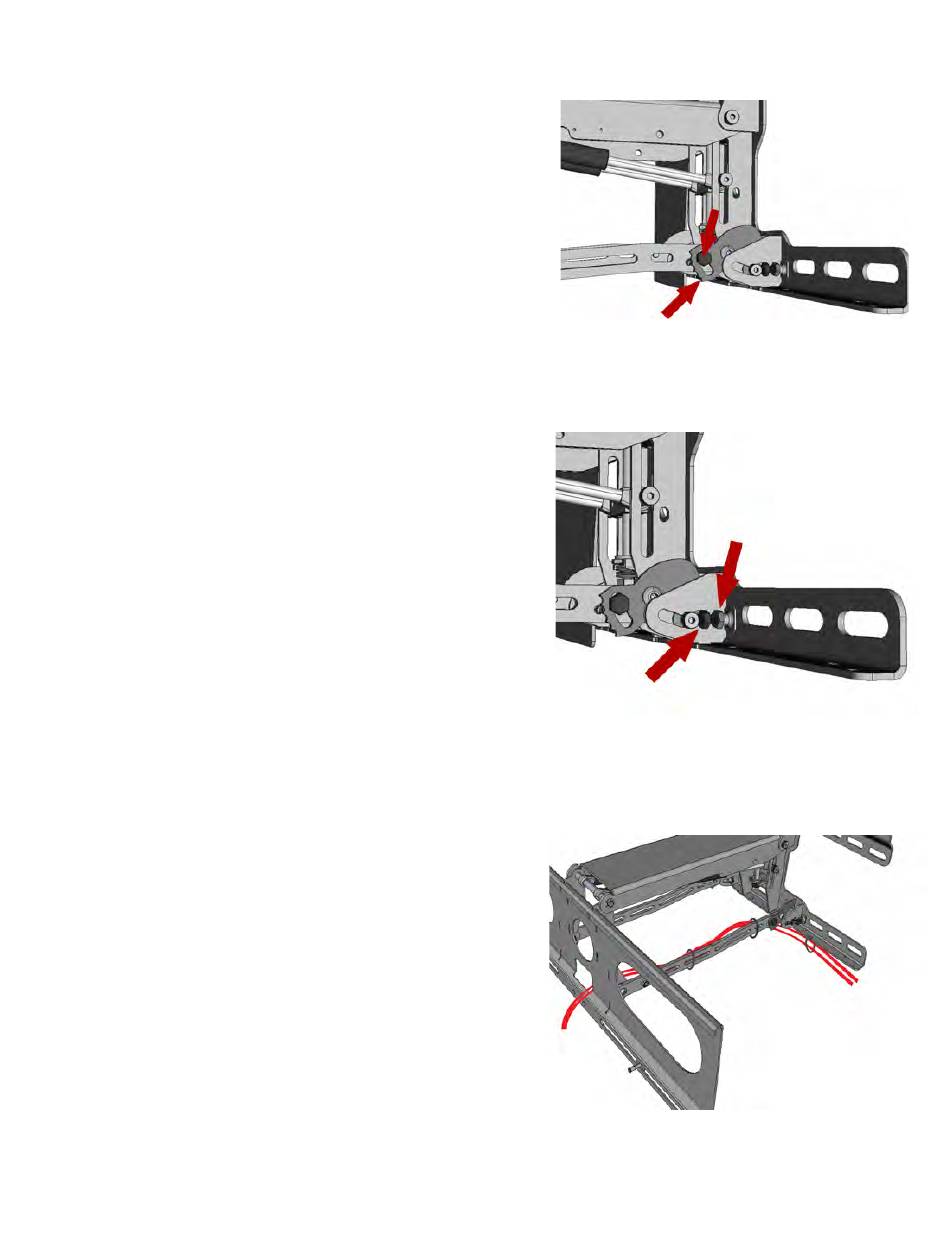

Cam
To adjust the tilt in the UP position. First loosen
lock-nut on the cam. Adjust cam position. Ad-
just both sides to the same setting.
Adjustment
To adjust tilt in the DOWN or OUT position,
loosen the lock-nut, before turning the adjusting
bolt. Adjust both sides to the same setting.
Use the zip ties to dress TV cables.
Lock-nut
Lock-nut
