Dynamic Mounting DOWN AND OUT Installation And Assembly Manual

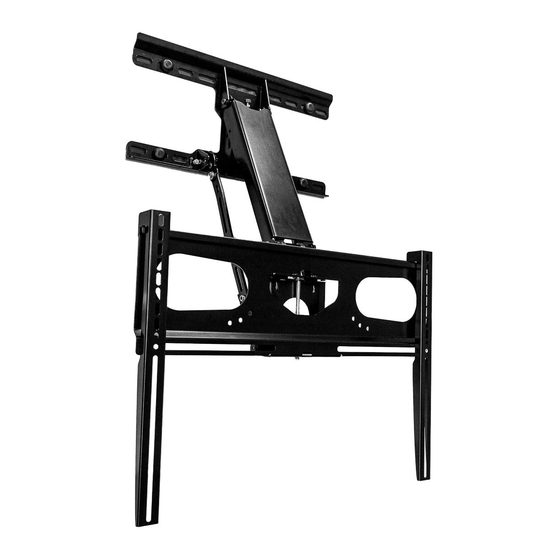

The DOWN AND OUT MOUNT, from Dynamic Mounting, offers an efficient
mounting solution for large flat screen TVs. Primarily designed for use over
shelves or fireplaces, offering up to 32 inches of vertical travel and adjustable tilt.
ATTENTION! It is important to study these instructions carefully. Read all the instruc-
tions before starting. Pay special attention to proper placement and adjustment. Fol-
lowing these instructions in sequence will save time and avoid problems.
Proper and safe installation of this product will require professional level tools
and experience; if you are not competent, engage the services of a professional.
WARNINGS!
These instructions are intended as an overall guide, and may not cover all possible
circumstances.
The consumer is responsible for correct and secure mounting. Dynamic Mount-
ing is not responsible for any damage, injury, or death resulting from improper
mounting or use of the Down And Out Mount.
The Down And Out Mount is rated for a maximum load of 125 lbs. Do NOT
exceed.
The Down And Out Mount is only designed for use with flat panel televisions.
For assistance, contact Dynamic Mounting at:
HEAT DAMAGE!
cal equipment or television to undue heat. Take all necessary precautions when mounting equipment over or near a
fireplace. Dynamic Mounting takes no responsibility for damage from a fireplace or other heat source to the television,
the mount, or other accessories.
FIREPLACES! When mounting the Down And Out Mount over a fireplace with a mantel, do NOT install the Down
And Out Mount such that more than half of the TV can be moved below the mantel.
CONTENTS:
SPECIFICATIONS
PACKAGE CONTENTS
REQUIRED TOOLS AND
EQUIPMENT
BEFORE YOU START
PLACEMENT
SEE OUR INSTRUCTIONAL VIDEO at
DOWN AND OUT MOUNT
Installation and Assembly
Electrical equipment placed near a heat source is at risk of damage. Do not expose your electri-
SET UP AND INSTALLATION:
1. ATTACH HANGERS TO SCREEN
2. ADJUST COUNTER-WEIGHT STRENGTH
3. PLACE THE MOUNT
4. ATTACH THE MOUNT TO THE WALL
5. HANG THE TV ON THE MOUNT
6. FINE-TUNE THE COUNTERBALANCE
7. ADJUST THE TOP AND BOTTOM TILT
8. ATTACH RUBBER BUMPERS
9. ATTACH AND DRESS CABLES
10. HANG THE PAINTABLE WALL PLATES
Down and Out Mount, installation and assembly.
