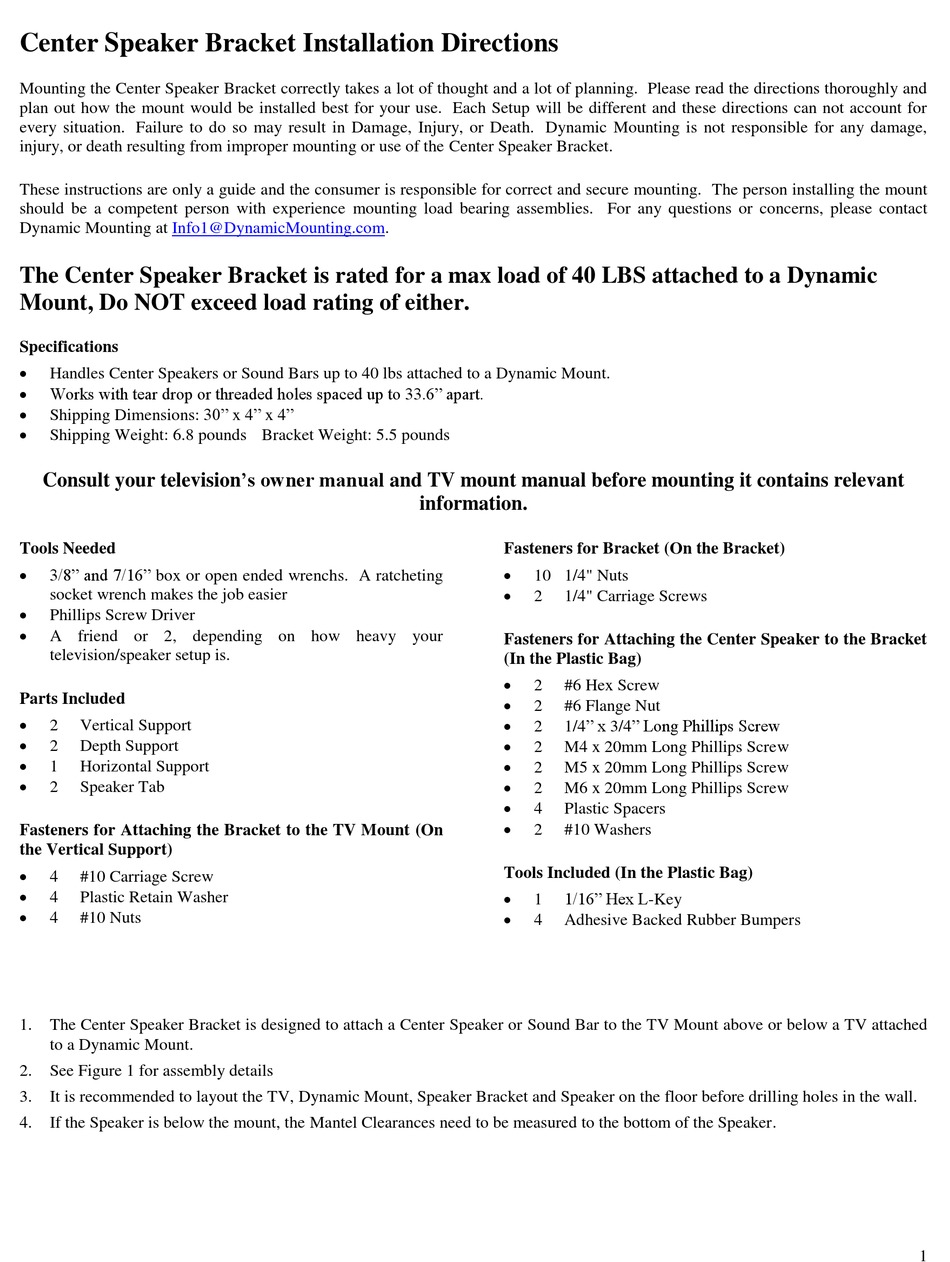

Center Speaker Bracket Installation Directions
Mounting the Center Speaker Bracket correctly takes a lot of thought and a lot of planning. Please read the directions thoroughly and
plan out how the mount would be installed best for your use. Each Setup will be different and these directions can not account for
every situation. Failure to do so may result in Damage, Injury, or Death. Dynamic Mounting is not responsible for any damage,
injury, or death resulting from improper mounting or use of the Center Speaker Bracket.
These instructions are only a guide and the consumer is responsible for correct and secure mounting. The person installing the mount
should be a competent person with experience mounting load bearing assemblies. For any questions or concerns, please contact
Dynamic Mounting at Info1@DynamicMounting.com.
The Center Speaker Bracket is rated for a max load of 40 LBS attached to a Dynamic
Mount, Do NOT exceed load rating of either.
Specifications

Handles Center Speakers or Sound Bars up to 40 lbs attached to a Dynamic Mount.

Works with tear drop or threaded holes spaced up to 33.6" apart.

Shipping Dimensions: 30" x 4" x 4"

Shipping Weight: 6.8 pounds Bracket Weight: 5.5 pounds
Consult your television's owner manual and TV mount manual before mounting it contains relevant
Tools Needed

3/8" and 7/16" box or open ended wrenchs. A ratcheting
socket wrench makes the job easier

Phillips Screw Driver

A friend or 2, depending on how heavy your
television/speaker setup is.
Parts Included

2 Vertical Support

2 Depth Support

1 Horizontal Support

2 Speaker Tab
Fasteners for Attaching the Bracket to the TV Mount (On
the Vertical Support)

4 #10 Carriage Screw

4 Plastic Retain Washer

4 #10 Nuts
1. The Center Speaker Bracket is designed to attach a Center Speaker or Sound Bar to the TV Mount above or below a TV attached
to a Dynamic Mount.
2. See Figure 1 for assembly details
3. It is recommended to layout the TV, Dynamic Mount, Speaker Bracket and Speaker on the floor before drilling holes in the wall.
4. If the Speaker is below the mount, the Mantel Clearances need to be measured to the bottom of the Speaker.
information.
Fasteners for Bracket (On the Bracket)

10 1/4" Nuts

2 1/4" Carriage Screws
Fasteners for Attaching the Center Speaker to the Bracket
(In the Plastic Bag)

2 #6 Hex Screw

2 #6 Flange Nut

1/4" x 3/4" Long Phillips Screw
2

2 M4 x 20mm Long Phillips Screw

2 M5 x 20mm Long Phillips Screw

2 M6 x 20mm Long Phillips Screw

4 Plastic Spacers

2 #10 Washers
Tools Included (In the Plastic Bag)

1/16" Hex L-Key
1

4 Adhesive Backed Rubber Bumpers
