Set Up And Installation; Attach Hangers To Screen - Dynamic Mounting DOWN AND OUT Installation And Assembly Manual

1. ATTACH HANGERS TO SCREEN

a. Locate the mounting points on the back of the screen.
(It may be necessary to remove manufacturer's plugs.)
b. Use M6 or M8 screws to attach hanger brackets to
back of screen.
depending on the size.)
c. Align the Hanger as close to top of screen as possible.
d. Use spacers and/or washers to ensure a firm connec-
tion. The Hangers must be tight to the back of the
screen.
(A selection of washers, spacers, and screws of differ-
ent sizes are supplied.)
e. Use at least one plastic spacer between the Hanger and
TV.
f. Make a note of the distance between the bottom of the
Hanger and the bottom of the TV. This measurement
maybe needed later. (This will be length ' A ' in figures
below.)

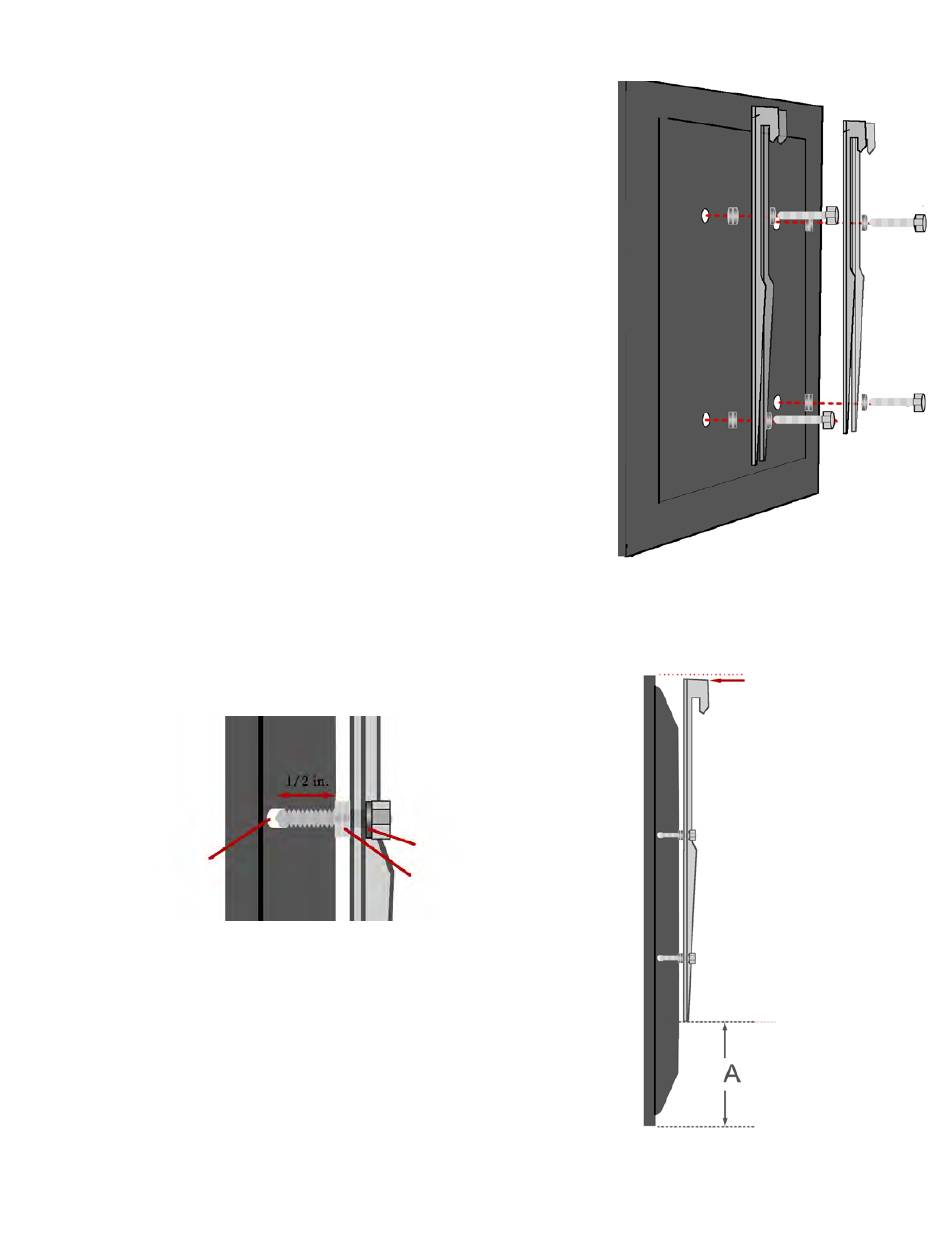

A minimum screw depth of 1/2 in. is required for a safe
installation.
Minimum 1/2
in. screw depth
1 or 2 turns space
Do not bottom out screws into the TV. Leave 1 or 2 turns
of free space by using a combination of washers and screws
of an appropriate length.

SET UP AND INSTALLATION.

(Most screens will require either M6 or M8
IMPORTANT!
IMPORTANT!
Down and Out Mount, installation and assembly.
www.DynamicMounting.com
Washer
Spacers
Align Hanger as close as pos-
sible to top of TV.
Take note of distance 'A'
5
