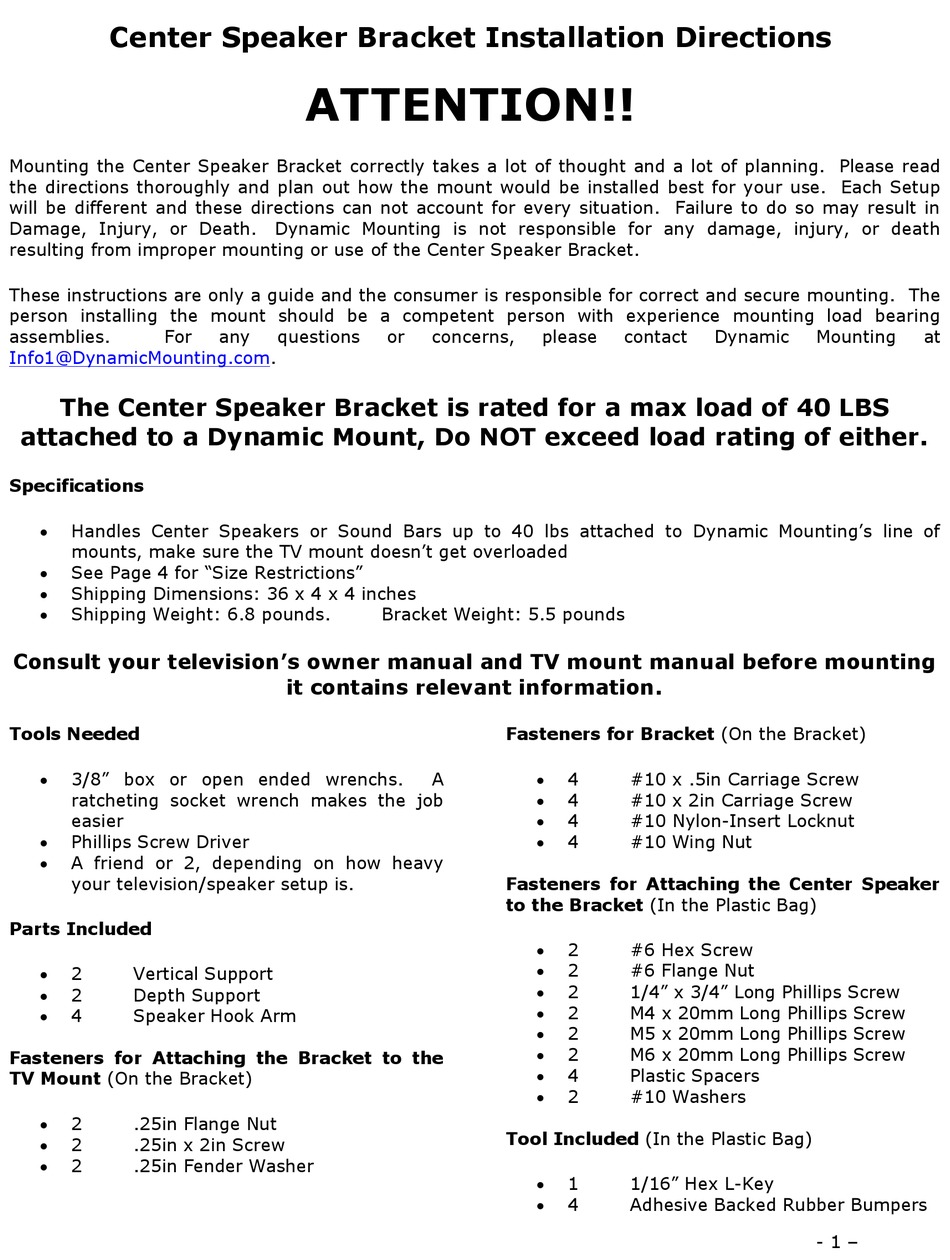

Dynamic Mounting Center Speaker Bracket Installation Directions

Center Speaker Bracket Installation Directions
Mounting the Center Speaker Bracket correctly takes a lot of thought and a lot of planning. Please read
the directions thoroughly and plan out how the mount would be installed best for your use. Each Setup
will be different and these directions can not account for every situation. Failure to do so may result in
Damage, Injury, or Death. Dynamic Mounting is not responsible for any damage, injury, or death
resulting from improper mounting or use of the Center Speaker Bracket.
These instructions are only a guide and the consumer is responsible for correct and secure mounting. The
person installing the mount should be a competent person with experience mounting load bearing
assemblies. For
Info1@DynamicMounting.com.
The Center Speaker Bracket is rated for a max load of 40 LBS
attached to a Dynamic Mount, Do NOT exceed load rating of either.

Specifications

 Handles Center Speakers or Sound Bars up to 40 lbs attached to Dynamic Mounting's line of
mounts, make sure the TV mount doesn't get overloaded
 See Page 4 for "Size Restrictions"
 Shipping Dimensions: 36 x 4 x 4 inches
 Shipping Weight: 6.8 pounds.
Consult your television's owner manual and TV mount manual before mounting

Tools Needed

 3/8" box or open ended wrenchs.
ratcheting socket wrench makes the job
easier
 Phillips Screw Driver
 A friend or 2, depending on how heavy
your television/speaker setup is.

Parts Included

 2 Vertical Support
 2 Depth Support
 4 Speaker Hook Arm
Fasteners for Attaching the Bracket to the
TV Mount (On the Bracket)
 2 .25in Flange Nut
 2 .25in x 2in Screw
 2 .25in Fender Washer
ATTENTION!!
any questions or
Bracket Weight: 5.5 pounds
it contains relevant information.
concerns, please
Fasteners for Bracket (On the Bracket)
A  4
 4
 4
 4
Fasteners for Attaching the Center Speaker
to the Bracket (In the Plastic Bag)
 2
 2
 2
 2
 2
 2
 4
 2
Tool Included (In the Plastic Bag)
 1
 4
contact Dynamic
#10 x .5in Carriage Screw
#10 x 2in Carriage Screw
#10 Nylon-Insert Locknut
#10 Wing Nut
#6 Hex Screw
#6 Flange Nut
1/4" x 3/4" Long Phillips Screw
M4 x 20mm Long Phillips Screw
M5 x 20mm Long Phillips Screw
M6 x 20mm Long Phillips Screw
Plastic Spacers
#10 Washers
1/16" Hex L-Key
Adhesive Backed Rubber Bumpers
Mounting at
- 1 –
