Dynamic Mounting DOWN AND OUT Installation And Assembly Manual page 2

SPECIFICATIONS
• All Dynamic Mounting products are compatible with most flat panel
and curved TV's that weigh between 20 and 125 lbs.
• The allowable mounting hole pattern is 7.1in (190mm) to 27.2in
(692mm) wide, up to 22.3in (566mm) high.
• This includes VESA mounting hole patterns 200×100, 200×200,
300×200, 300×300, 400×300, 400×400, 500×300, 600×400 (Width x
Height, in mm).
• Product Dimensions: 29.0 x 23.6 x 4.4 in.
• Product Weight: 24 lbs.
• Tilt: 7º from vertical in top position. +/- 1º in out through bottom
positions.

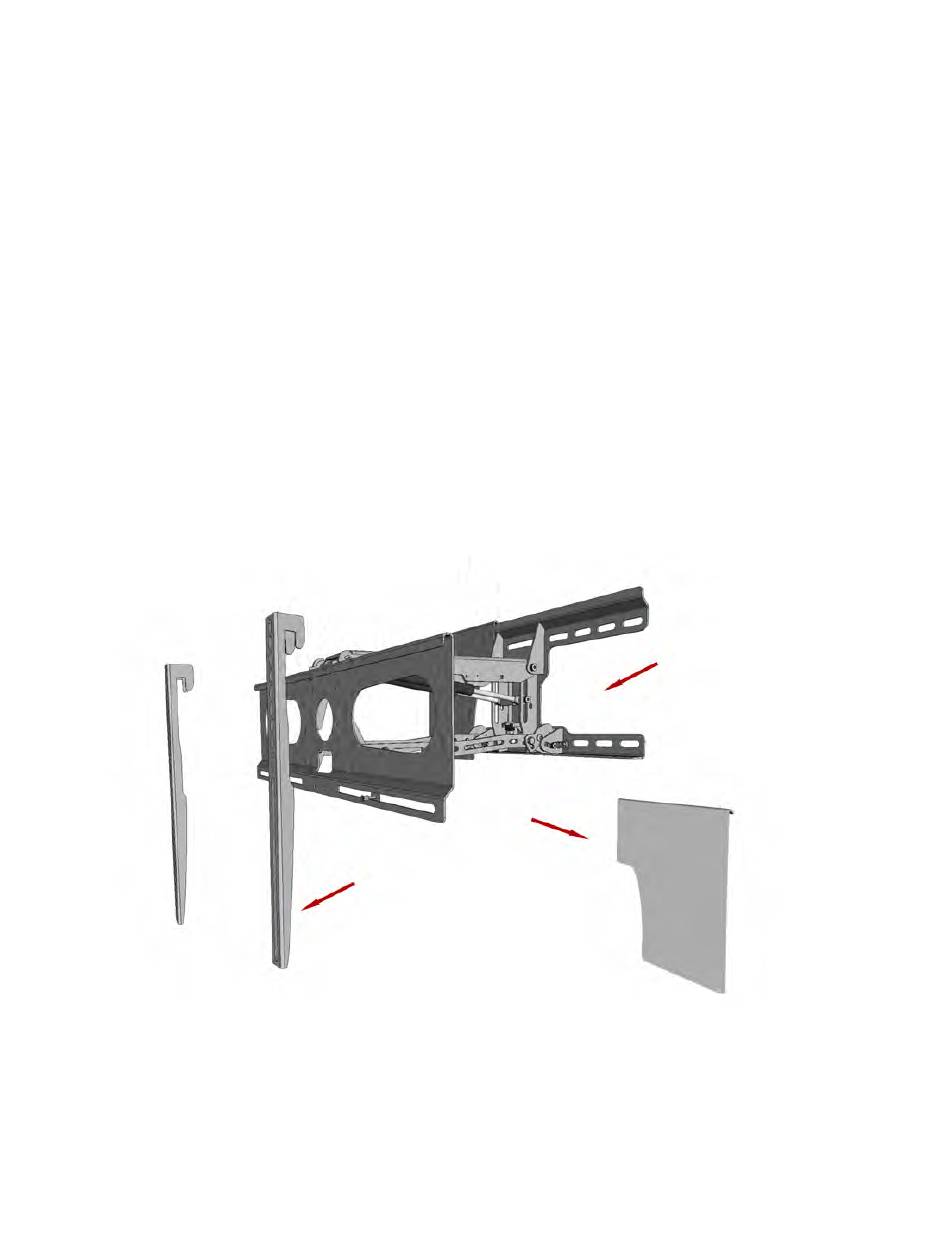

PACKAGE CONTENTS
Paintable covers x2
Hangers x2
Down and Out Mount, installation and assembly.
www.DynamicMounting.com
Mount
2
