This user's guide describes the operational use of the TPS7A84EVM-753 evaluation module (EVM) as a

reference design for engineering demonstration and evaluation of the TPS7A8400RGR, low-dropout linear

regulator (LDO). Included in this user's guide are setup and operating instructions, thermal and layout

guidelines, a printed circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM).

Throughout this document, the terms demonstration kit, evaluation board, and evaluation module are

synonymous with the TPS7A84EVM-753.

The following related documents are available through the Texas Instruments web site at www.ti.com.

All trademarks are the property of their respective owners.

SBVU028 – March 2016

Submit Documentation Feedback

TPS7A84EVM-753 Evaluation Module

Need help?

Do you have a question about the TPS7A84EVM-753 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TPS7A84EVM-753

Page 1 SBVU028 – March 2016 TPS7A84EVM-753 Evaluation Module This user’s guide describes the operational use of the TPS7A84EVM-753 evaluation module (EVM) as a reference design for engineering demonstration and evaluation of the TPS7A8400RGR, low-dropout linear regulator (LDO). Included in this user’s guide are setup and operating instructions, thermal and layout guidelines, a printed circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM).
Page 2: Table Of Contents
Top Layer Routing ...................... Signal Layer 1 Routing ...................... Signal Layer 2 Routing ....................... Bottom Layer Routing ..................... TPS7A84EVM-753 Schematic List of Tables ....................TPS7A84EVM-753 BOM TPS7A84EVM-753 Evaluation Module SBVU028 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 3: Introduction

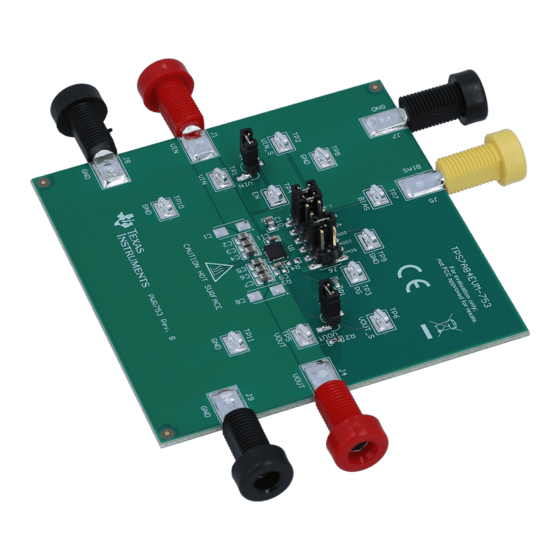

Introduction Texas Instruments' TPS7A84EVM-753 EVM helps design engineers evaluate the operation and performance of the TPS7A84 family of linear regulators for possible use in their own circuit application. This particular EVM configuration contains a single low-noise, high-PSRR linear regulator for high-speed communication systems.
Page 4: Evm Setup
EVM Setup www.ti.com EVM Setup This section describes how to properly connect and setup the TPS7A84EVM-753, including the jumpers and connectors on the EVM board. Input/Output Connectors and Jumper Descriptions 2.1.1 J1 – VIN Input power-supply voltage connector. Twist together the positive input lead and ground return lead from the input power supply, and keep them as short as possible to minimize input inductance.
Page 5: Soldering Guidelines
2. Enable the output by jumping J3 (the EN pin) to VIN. 3. Vary the respective load and input voltage as necessary for test purposes. SBVU028 – March 2016 TPS7A84EVM-753 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 6: Pcb Layout
PCB layout for this EVM. Figure 1. Assembly Layer Figure 2. Top Layer Routing Figure 3. Signal Layer 1 Routing Figure 4. Signal Layer 2 Routing TPS7A84EVM-753 Evaluation Module SBVU028 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 7: Bottom Layer Routing
PCB Layout www.ti.com Figure 5. Bottom Layer Routing SBVU028 – March 2016 TPS7A84EVM-753 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 8: Schematic
100 mV 50 mV TPS7A8400RGRR TP10 TP11 NOTE: Capacitors C1 and C8 and resistors R3 and R4 do not come populated. Figure 6. TPS7A84EVM-753 Schematic TPS7A84EVM-753 Evaluation Module SBVU028 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
Page 9: Bill Of Materials
These assemblies must be clean and free from flux and all contaminants. Use of no-clean flux is not acceptable. These assemblies must comply with workmanship standards IPC-A-610 Class 2. SBVU028 – March 2016 TPS7A84EVM-753 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
