Summary of Contents for AMC iA 2X250

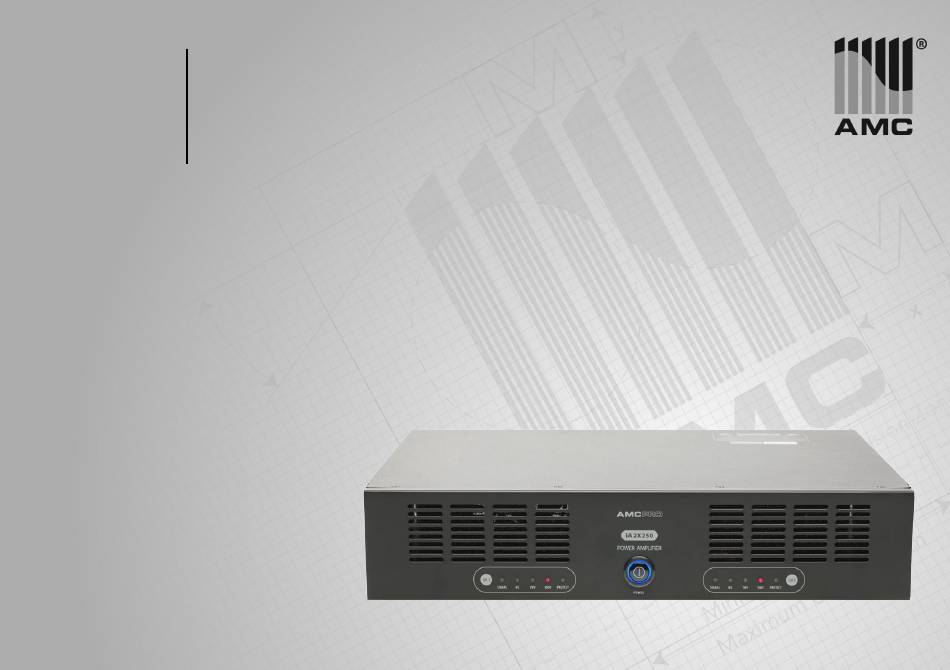

- Page 1 User iA 2X250 Manual Installation Amplifier...
- Page 2 ON. When the power switch is turned ON, the main power is turned ON.The only operation to disconnect the power supply from the grid, unplug the power cord. USER MANUAL iA 2X250 Installation amplifier...
-
Page 3: Table Of Contents
Table of contents Before you start Introduction ..............................2 Features ................................2 Operation Front panel ................................3 Rear panel................................3 Front and rear panel functions ......................4 Specifications General specifications ..........................5 USER MANUAL iA 2X250 Installation amplifier... -
Page 4: Before You Start
Before you start iA 2X250 is a professional 100 V installation amplifier for contractor market. It features 2 outputs, fan powered cooling system, rack mount. Amplifier is designed to work under heavy conditions and requires minimal maintenance after installation. For use in medium or large public address or voice evacuation systems. -
Page 5: Operation
1. Signal indicator | 2. Channel output voltage LED indicator | 3. Protection LED indicator | 4. Power switch Rear Panel 1. Mains lead socket and fuse holder 2. Output terminals 3. Channel input and gain control 4. Output voltage switch 5. Input mode switch 6. Filter switch USER MANUAL iA 2X250 Installation amplifier... -
Page 6: Front And Rear Panel Functions
Connector is combined with fuse holder. using gain control knob. INPUT MODE Dual mode: all amplifier outputs work independently. Single mode: allows two channels operate in parallel with same signal. In this mode two channel inputs are internally connected. USER MANUAL iA 2X250 Installation amplifier... -
Page 7: General Specifications
General Specifications iA 2X250 installation amplifier Power supply AC 230 V / 50 Hz Output power 2 x 250 W Total harmonic distortions < 0,1 % Input sensitivity 0 dBu Max input level +20 dBu Min position -∞ Gain control Max position 0 dB S/N ratio...
