- Page 1 User iComC 2X20 Manual Communication Amplifier...
- Page 2 ON. When the power switch is turned ON, the main power is turned ON.The only operation to disconnect the power supply from the grid, unplug the power cord. USER MANUAL iComC 2X20 Communication Amplifier...
-
Page 3: Table Of Contents
Table of contents Before you start Introduction ..............................2 Features ................................2 Operation Front panel ................................3 Rear panel................................3 Remote control ...............................4 Functions ................................5 Control protocol ............................6 Specifications General specifications ..........................7 USER MANUAL iComC 2X20 Communication Amplifier... -
Page 4: Before You Start

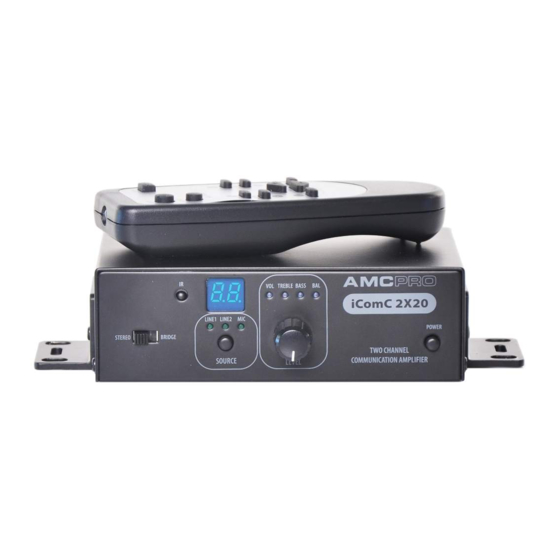

Before you start iComC 2X20 is a two channel communication amplifiers with RS232 interface and IR remote control (sold separately). Designed for small size applications. D class power amplifier, limiter, stereo and bridge mode, tone control, line input, balanced microphone input, phoenix output connector, phantom power and loudness function. -
Page 5: Operation
5. Selected function indicator and level adjustment knob 6. Power switch Rear Panel 1. RS-232 interface 2. Dip switch for loudness, limiter and phantom power functions | 3. Balanced MIC input | 4. Stereo RCA line input 5. Stereo 3.5 mm TRS LINE input | 6. Loudspeaker output connector | 7. DC power input USER MANUAL iComC 2X20 Communication Amplifier... -
Page 6: Remote Control
1. Open the battery cover. 4. Volume control 5. Balance control 6. Tone control (bass) 2. Insert two AAA batteries in accordance with marks in the remote control 7. On/off button battery compartment. 3. Close the battery cover. USER MANUAL iComC 2X20 Communication Amplifier... -
Page 7: Functions
Stereo and Bridge mode wiring is marked on the amplifier panel. Treble and bass levels can be adjusted in 15 steps from -7 to 7. POWER CONNECTOR Balance adjusting limits from L9 to R9. DC 24V 1.5A power supply input. USER MANUAL iComC 2X20 Communication Amplifier... -
Page 8: Control Protocol
Bass xx <CR> Default bass level is 0. Balance control Balance xx<CR> Example: RS232 command “Bass +4<CR>“ sets bass level +4. Example: RS232 command “Bass 0<CR> sets bass level to default. Save settings Save<CR> USER MANUAL iComC 2X20 Communication Amplifier... -
Page 9: General Specifications
General Specifications iComC 2X20 Communication Amplifier iComC 2X20 Power supply 24 V DC 1,5 A Output power 2 x 20 W Phantom power voltage 24 VDC Line input impedance 10 kΩ Line input sensitivity -7 dBu Mic input impedance 600 Ω Mic input sensitivity -60 dBu Total harmonic distortions <...
