Summary of Contents for AMC iAC

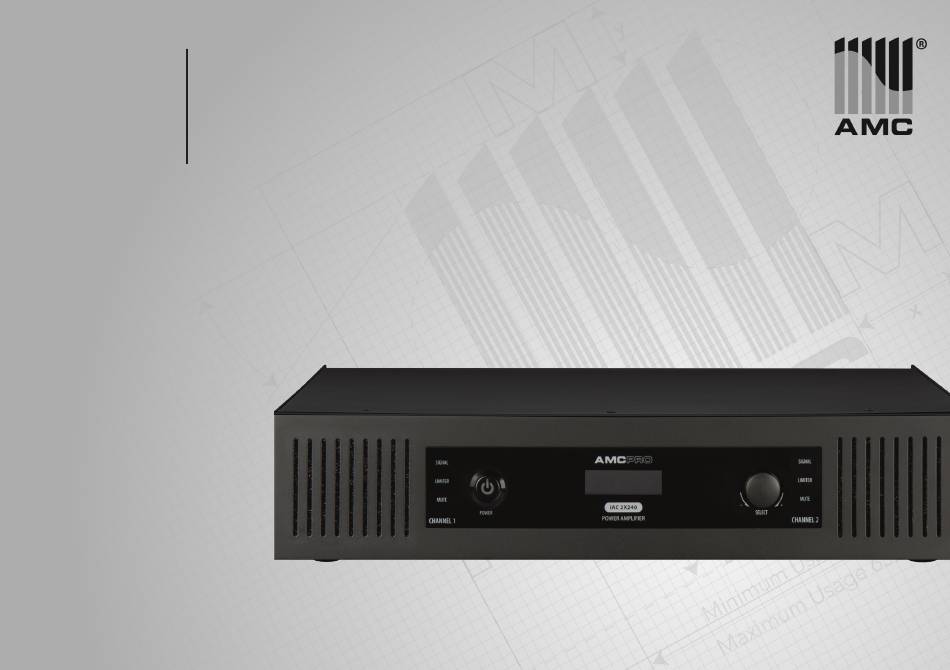

- Page 1 User Manual Installation Power Amplifier...
- Page 2 ON. When the power switch is turned ON, the main power is turned ON.The only operation to disconnect the power supply from the grid, unplug the power cord. USER MANUAL iAC Installation Power Amplifier...
- Page 3 Before you start Introduction ..............................2 Features ................................2 Operation Front/rare panel of iAC 120 ........................3 Front/rare panel of iAC 240 and iAC 360 ..................4 Front/rare panel of iAC 2X240 ......................5 Front panel functions ..........................6 Rear panel functions ...........................6 Parameters controls .............................7 Control protocol ............................8...
- Page 4 Before you start iAC amplifiers with an integrated signal processor are designed for 100 V and low impedance background music systems. The model line consists of single-channel and two-channel amplifiers. They all have an RS 232 control port for integration amplifier with third-party automation systems.
- Page 5 Operation Front Panel | iAC 10 1. Power button 2. LCD display 3. Rotary encoder 4. Signal, limiter & mute indicators Rear Panel | iAC 120 1. Stereo RCA & balanced Phoenix inputs 2. Link output 3. RS232 serial interface 4.
- Page 6 Operation Front Panel | iAC 240, iAC 360 1. Power button 2. LCD display 3. Rotary encoder 4. Signal, limiter & mute indicators Rear Panel | iAC 240, iAC 360 1. Stereo RCA & balanced Phoenix inputs 2. Link output 3.
- Page 7 Operation Front Panel | iAC 2X240 1. Signal, limiter & mute indicators 2. Power button 3. LCD display 4. Rotary encoder Rear Panel | iAC 2X240 1. Mode switch 2. Stereo RCA & balanced Phoenix inputs 3. Link outputs 4. RS232 serial interface 5.
- Page 8 LCD screen displays main information about amplifiers: volume level, tone controls levels, muting, locking, stand by status or sync settings. RS232 SERIAL INTERFACE Designed to control main function of iAC aplifiers by using serial interface. ROTARY ENCODER RS232 protocol is listed in page 8.
- Page 9 One Knob To Control Everything 3 band EQ In normal operating mode iAC serie features a graphic LCD display and a single rotary/push encoder allowing easy control of all device parameters. EQ adjustments can be made for each LCD shows volume of each channel...
- Page 10 69 41 43 55 0D FA 01 00 AA 69 41 43 55 02 06 01 01 AA Middle - Ch1 and Ch2 For iAC 120/240/360 models Firmware Version Treble - Ch2 69 41 43 54 02 11 01 02 AA...
- Page 11 5D 06 (= -8) (= +8) (= -6) (= +10) MANUAL ON 69 41 43 55 5D 10 (= -4) (= +12) (= -2) MANUAL OFF 69 41 43 55 5D 10 (= +14) USER MANUAL iAC Installation Power Amplifier...
- Page 12 (= 47 db) The following RS232 sequence means that amlifier’ s Channel 1 volume is set to 10 dB: (= 23 db) (= 48 db) 69 41 43 55 01 5D 02 0A AA USER MANUAL iAC Installation Power Amplifier...
- Page 13 General Specifications iAC Installation Power Amplifier Technical Specifications iAC 120 iAC 240 iAC 360 iAC 2X240 Output power 1 x 120 W 1 x 240 W 1 x 360 W 1 x 360 W Power consumption 165 VA 300 VA...
- Page 14 Notes AMC is a registered trademark of AMC Baltic www.amcpro.eu...
