Summary of Contents for AMC iA 4X125

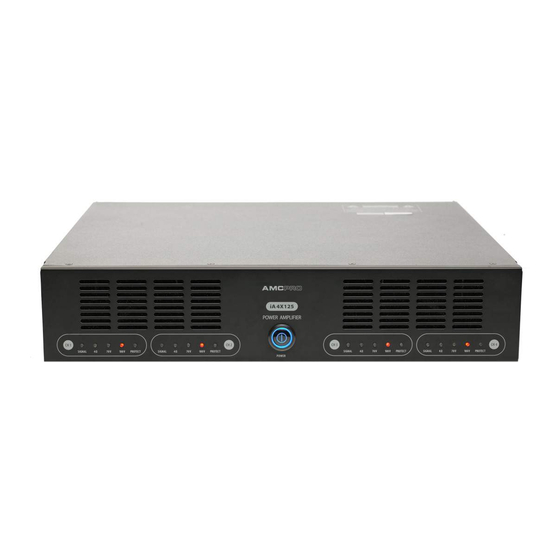

- Page 1 User iA 4X125 Manual Installation Amplifier...
- Page 2 The product should be located away from heat sources such as radiators, heat vents, or other devices that produce heat. The product should be connected to a power supply that is described in the operating instructions or are marked on the product. USER MANUAL iA 4X125 Installation amplifier...
-
Page 3: Table Of Contents
Table of contents Before you start Introduction ..............................2 Features ................................2 Operation Front panel ................................3 Rear panel................................3 Front and rear panel functions ......................4 Specifications General specifications ..........................5 USER MANUAL iA 4X125 Installation amplifier... -
Page 4: Before You Start
Before you start iA 4X125 is a professional 100 V omstallation amplifier for contractor market. It features 4 outputs, fan powered cooling system, rack mount. Amplifier is designed to work under heavy conditions and requires minimal maintenance after installation. For use in medium or large public address or voice evacuation systems. -
Page 5: Operation
Operation Front Panel 1. Signal indicator | 2. Channel output mode LED indicator | 3. Protection LED indicator | 4. Power switch Rear Panel 1. Input mode switch 2. Filter switch 3. Output mode switch 4. Channel input and gain control 5. Output terminals 6. Mains lead socket and fuse holder USER MANUAL iA 4X125 Installation amplifier... -
Page 6: Front And Rear Panel Functions
Connector is combined with fuse holder. using gain control knob. INPUT MODE Dual mode: all amplifier outputs work independently. Single mode: allows two channels operate in parallel with same signal. In this mode two channel inputs are internally connected. USER MANUAL iA 4X125 Installation amplifier... -
Page 7: General Specifications
General Specifications iA 4X125 installation amplifier Power supply AC 230 V / 50 Hz Output power 4 x 125 W Total harmonic distortions < 0,1 % Input sensitivity 0 dBu Max input level +20 dBu Min position -∞ Gain control Max position 0 dB S/N ratio 95 dB Frequency response 20 Hz – 20 kHz...
