Summary of Contents for AMC iComC 2x20
- Page 2 IMPORTANT SAFETY INSTRUCTIONS When using this electronic device, basic precautions should always be taken, including the following: 1. Read all instructions before using the product. 2. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement or near a swimming pool etc).
-
Page 3: Table Of Contents
CONTENTS: Before you start What's in the box Hints on installation Controls and connections Front panel Rear panel Optional accessory Batteries changing Settings and functions Functions RS-232 commands Specifications General... -
Page 4: What's In The Box
What’s in the box The accessories which are included in the box are: Instruction manual Power supply Hints on installation Do… Use in a well-ventilated room. Place on a solid, flat, level surface, such as a table, shelf or stereo rack Don’t…... -

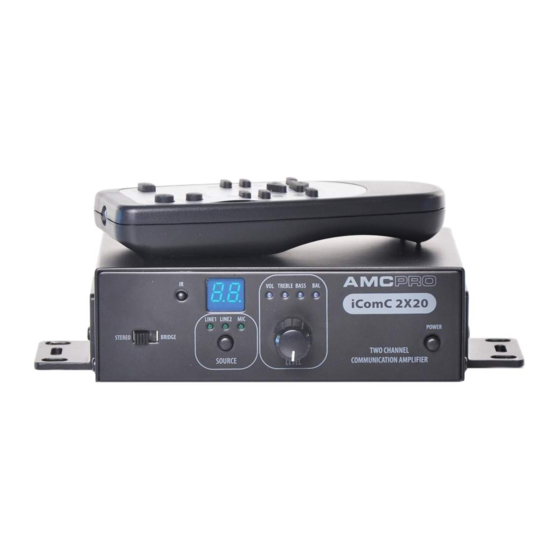

Page 5: Front Panel
Front Panel Stereo/Bridge mode selector Level indicator IR detector Function indicator Input indicator Level control Input selector On/off button Rear Panel RS-232 interface connector 3.5mm stereo Jack input DIP switch Output connector Balanced MIC input Power connector Stereo RCA input... -
Page 6: Optional Accessory
Optional accessory: IR remote control 1. Mute 2. Input selector 3. Tone control (treble) 4. Volume control 5. Balance control 6. Tone control (bass) 7. On/off button Batteries changing 1. Open the battery cover. 2. Insert two AAA batteries in accordance with marks in the remote control battery compartment. -
Page 7: Functions
Functions STEREO/BRIDGE MODE There are available 2 modes of operation: stereo and bridge. Don’t use this switch when amplifier is turned on, change mode when amplifier is turned off. Stereo mode: This is generally used mode. In stereo mode both amplifiers channels work independently. - Page 8 BALANCED MIC INPUT This phoenix connector is designed to connect dynamic or condenser microphone to the amplifier. If condenser microphone is used, phantom power (+48V) must be enabled by using DIP switch located near the connector. STEREO RCA INPUT Stereo RCA inputs for line level audio. 3.5mm.
-
Page 9: Rs-232 Commands
RS-232 commands Baud rate 9600, 8 data bits, no parity, 1 stop bit, no flow control. Notes: Amplifiers respond prompt: PA> Symbols xx in the volume control row mean volume level. Volume level range is 0-63. Example: RS232 command “Volume 15<CR>“ sets volume level 15. Symbol x in the “Source selector”... -
Page 10: Specifications
SPECIFICATIONS GENERAL 1. Power supply DC 24V 1,5A 20W x 2 (4 Ω) 2. Rated power 3. Line inputs gain -7 dBu 10k Ω 4. Line input impedance 5. MIC input gain -60 dBu 6. MIC input impedance 600Ω 7. Frequency response 35Hz –... - Page 11 NOTES...
- Page 12 AMC is a registered trademark of AMC Baltic www.amcpro.eu...
