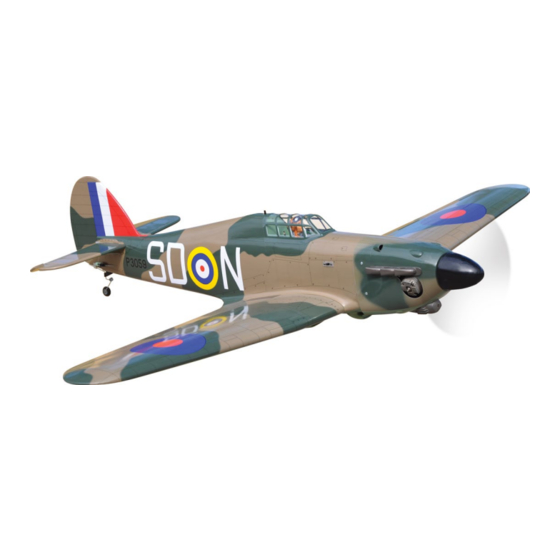

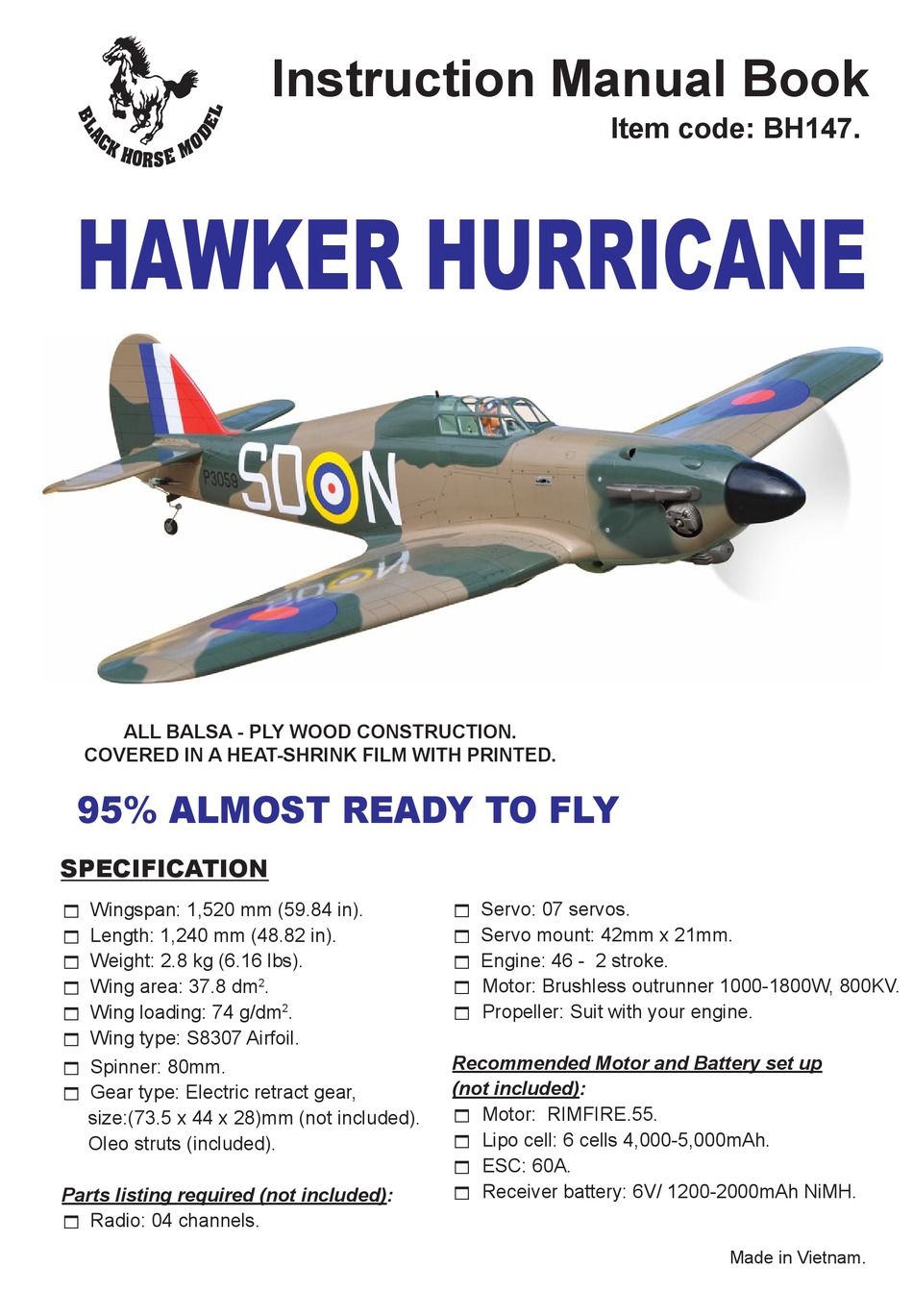

HAWKER HURRICANE
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
95% ALMOST READY TO FLY
SPECIFICATION
 Wingspan: 1,520 mm (59.84 in).
 Length: 1,240 mm (48.82 in).
 Weight: 2.8 kg (6.16 lbs).
 Wing area: 37.8 dm
 Wing loading: 74 g/dm
 Wing type: S8307 Airfoil.
 Spinner: 80mm.
 Gear type: Electric retract gear,
size:(73.5 x 44 x 28)mm (not included).
Oleo struts (included).
Parts listing required (not included):
 Radio: 04 channels.
Instruction Manual Book
.
2
.
2
Item code: BH147.
 Servo: 07 servos.
 Servo mount: 42mm x 21mm.
 Engine: 46 - 2 stroke.
 Motor: Brushless outrunner 1000-1800W, 800KV.
 Propeller: Suit with your engine.
Recommended Motor and Battery set up
(not included):
 Motor: RIMFIRE.55.
 Lipo cell: 6 cells 4,000-5,000mAh.
 ESC: 60A.
 Receiver battery: 6V/ 1200-2000mAh NiMH.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BH147 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model BH147

Summary of Contents for Black Horse Model BH147

  • Page 1 Instruction Manual Book Item code: BH147. HAWKER HURRICANE ALL BALSA - PLY WOOD CONSTRUCTION. COVERED IN A HEAT-SHRINK FILM WITH PRINTED. 95% ALMOST READY TO FLY SPECIFICATION  Servo: 07 servos.  Wingspan: 1,520 mm (59.84 in).  Length: 1,240 mm (48.82 in).

  • Page 2: Tools And Supplies Needed

    HAWKER HURRICANE Item code: BH147. Instruction Manual This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly HAWKER HURRICANE before starting assembly of your . Use the parts listing below to identify all parts.

  • Page 3: Safety Precaution

    HAWKER HURRICANE Item code: BH147. Instruction Manual Caution: necessary. If the air or the iron is too hot, the film may This model is not a toy! melt and holes may be formed. If you are a beginner to this type of powered model,...

  • Page 4: Installing The Aileron Servos

    HAWKER HURRICANE Item code: BH147. Instruction Manual REPLACEMENT SMALL PARTS 3x15mm 3x25mm 3 x 12mm 2x10mm 4x25mm 5x35mm 3x15mm 4x70mm 3x12mm 1. Oleo struts. 2. Wheels. Temporary pin to 3. Plastic parts for bottom fuselage. keep hinge centered. 4. Plastic - engine mount.

  • Page 5: Installing The Aileron Linkages

    HAWKER HURRICANE Item code: BH147. Instruction Manual Remove the covering Drill a hole 1.5mm Servo tray Drill a hole 1.5mm Secure 2x10mm  5) Repeat the procedure to install the aileron servos in the opposite wing half. 3. INSTALLING THE AILERON CONTROL HORN 1) Remove the covering from the slot on the ...
  • Page 6 HAWKER HURRICANE Item code: BH147. Instruction Manual Attach the clevis to the outer hole in the servo arm. III. INSTALLING ELECTRIC GEAR Install a silicone tube on the clevis. RETRACTS PARTS REQUIRED Using pliers, carefully make a 90 degree bend down at the mark made.

  • Page 7: Installing The Engine Mount

    HAWKER HURRICANE Item code: BH147. Instruction Manual Repeat the procedure to install the opposite gear. IV. INSTALLING THE ENGINE MOUNT OPTION 2: ENGINE MOUNT See pictures below: There are two options: 1. Electric motor 2. Engine mount. 3x25mm 4x30mm OPTION 1: ELECTRIC MOTOR...

  • Page 8: Installing The Stopper Assembly

    HAWKER HURRICANE Item code: BH147. Instruction Manual  5) Test fit the stopper assembly into the tank. It may 115mm be necessary to remove some of the flashing around the tank opening using a modeling knife. If flashing is present, make sure none of it falls into the tank.

  • Page 9: Installing The Throttle Pushrod

    HAWKER HURRICANE Item code: BH147. Instruction Manual Cowl area cutout Rudder servo for engine head. Throttle servo Elevator servo Cowl area cutout for muffler INSTALLING THE THROTTLE PUSHROD  1) Slide the fiberglass cowl over the engine and line up the back edge of the cowl with the marks you Install one adjustable metal connector through the third made on the fuselage.
  • Page 10 HAWKER HURRICANE Item code: BH147. Instruction Manual  1) Elevator install as same as the way of aileron.  5) With the horizontal stabilizer correctly aligned, Please see pictures below. mark the shape of the fuselage on the top and bottom of the tail plane using a water soluble / non permanent felt-tip pen.

  • Page 11: Installing Vertical Stabilizer

    HAWKER HURRICANE Item code: BH147. Instruction Manual Bottom side. Elevator pushrod Drill a hole 1.5 mm Silicone Tube Elevator control horn  1) Using pliers, carefully make a 90 degree bend When you are sure that everything is aligned correctly, down at the mark made.

  • Page 12: Rudder Control Horn Installation

    HAWKER HURRICANE Item code: BH147. Instruction Manual  2) Slide the vertical stabilizer into the slot in the mounting platform in the top of the fuselage. Mark the shape of the fuselage on the left and right sides of the vertical stabilizer using a felt-tip pen.

  • Page 13: Mounting The Tail Wheel Bracket

    HAWKER HURRICANE Item code: BH147. Instruction Manual XI. MOUNTING THE TAIL WHEEL BRACKET  1) Set the tail wheel assembly in place on the ply- wood plate.The pivot point of the tail wheel wire should Secure be even with the rudder hinge line and the tail wheel bracket should be centered on the plywood plate.

  • Page 14: Installing The Switch, Receiver And Battery

    HAWKER HURRICANE Item code: BH147. Instruction Manual XIII. INSTALLING THE SWITCH, RECEIVER AND BATTERY  1) Cut out the switch hole using a modeling knife. Use a 2mm drill bit and drill out the two mounting holes through the fuselage side.

  • Page 15: Installing The Spinner

    HAWKER HURRICANE Item code: BH147. Instruction Manual BALANCING  1) It is critical that your airplane be balanced cor- rectly. Improper balance will cause your plane to lose control and crash. Close and Push in THE CENTER OF GRAVITY IS LOCATED...

  • Page 16: Control Throws

    HAWKER HURRICANE Item code: BH147. Instruction Manual CONTROL THROWS PRE-FLIGHT CHECK  1) We highly recommend setting up a plane  1) Completely charge your transmitter and using the control throws listed. receiver batteries before your first day of flying.
  • Page 17 HAWKER HURRICANE Item code: BH147. Instruction Manual I/C FLINGT WARNINGS Always operate in open areas, away adjust the engine from ALWAYS from factories, hospitals, schools, NEVER fly near power lines, behind the propeller, and do not buildings and houses etc. NEVER...
