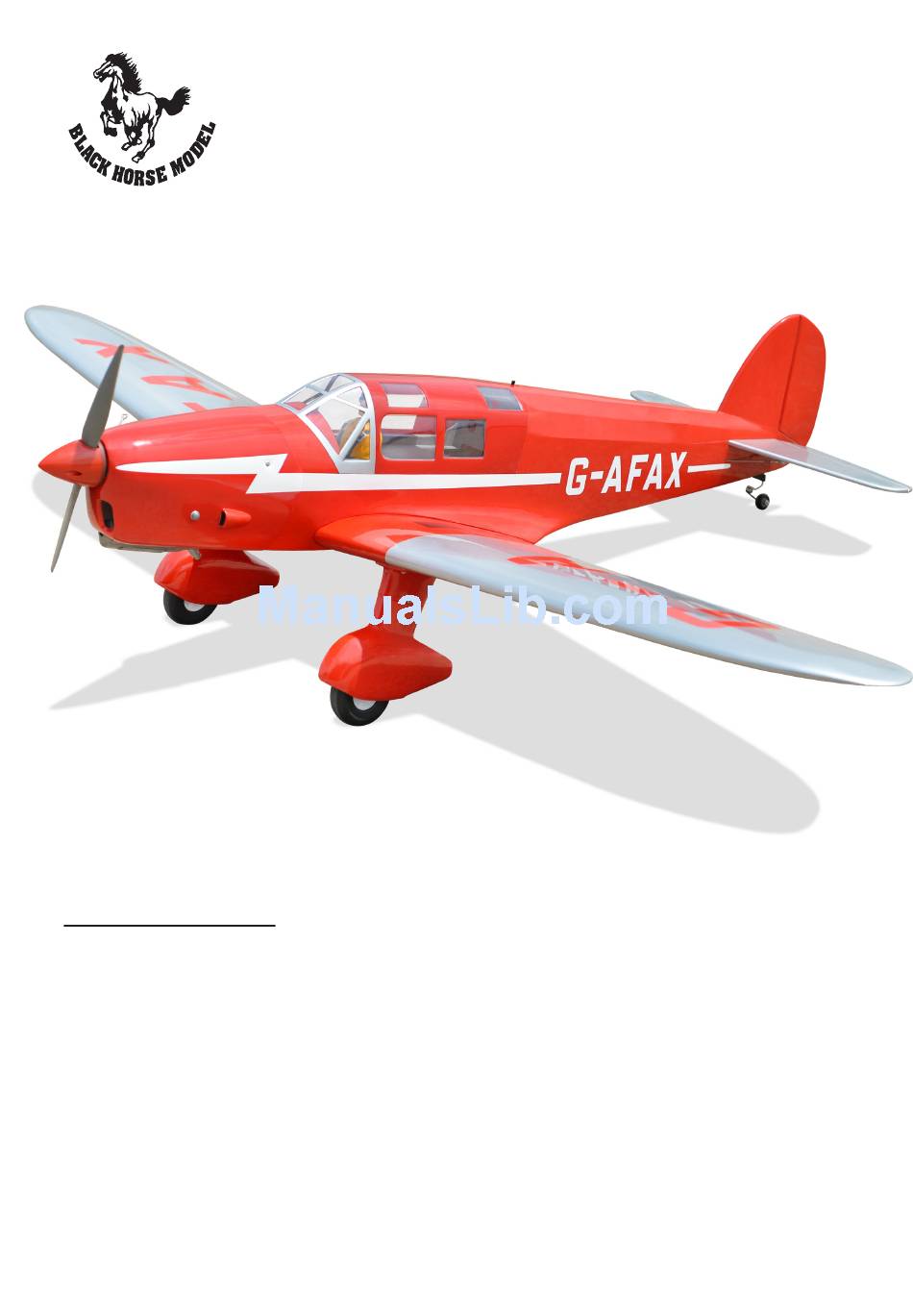

B.A.Eagle
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER
95% ALMOST READY TO FLY
SPECIFICATION
- Wingspan: 1,790mm (70.47in).
- Length: 1,340mm (52.76in.)
- Weight: 4kg (8.8lbs).
- Wing area: 45.7dm
- Wing loading: 87.53g/dm
- Wing type: Naca Airfoil.
- Gear type: Oleo struts (included).
- Spinner: 58mm.
- Servo mount: 42mm x 21mm.
Instruction Manual Book
.
2
.
2
Item code: BH158.
Parts listing required (not included):
- Radio: 05 channels.
- Servo: 07 servos.
- Engine: 61 - 2 stroke; 15cc Gas.
- Motor: Brushless outrunner 1200-2200W, 650KV.
- Propeller: Suit with your engine.
Recommended motor
and battery set up (not included):
- Motor: RIMFIRE.60.
- Lipo cell: 6 cells 4,000-5,000mAh.
- Receiver battery: 6V/ 1200-2000mAh NiMH.
- ESC: 80A.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B.A.EAGLE bh158 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model B.A.EAGLE bh158

Summary of Contents for Black Horse Model B.A.EAGLE bh158

  • Page 1 Instruction Manual Book Item code: BH158. B.A.Eagle ALL BALSA - PLY WOOD CONSTRUCTION. COVERED WITH ORACOVER 95% ALMOST READY TO FLY SPECIFICATION - Wingspan: 1,790mm (70.47in). Parts listing required (not included): - Length: 1,340mm (52.76in.) - Radio: 05 channels. - Weight: 4kg (8.8lbs). - Servo: 07 servos.

  • Page 2: Tools And Supplies Needed

    B.A.Eagle. Item code: BH158. Instruction Manual This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly B.A.Eagle before starting assembly of your Use the parts listing below to identify all parts. WARNING Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.

  • Page 3: Safety Precaution

    B.A.Eagle. Item code: BH158. Instruction Manual Caution: This model is not a toy! This model is highly pre-fabricated and can be built in If you are a beginner to this type of powered model, a very short time. However, the work which you have to please ask an experienced model flyer for help and carry out is important and must be done carefully.

  • Page 4: Installing The Aileron Servos

    B.A.Eagle. Item code: BH158. Instruction Manual REPLACEMENT SMALL PARTS 4x15 mm 3x12mm 3x15mm 3x10mm 5x33mm 3x12mm 2x10mm 1. Oleo Strut 4x20mm 2. Wheels. 3. Plastic fairing for landing gear. 4. Wheel pants. 6. Spinner 4x70mm 7. Tail gear set. 4x30mm 8.

  • Page 5: Installing The Aileron Linkages

    B.A.Eagle. Item code: BH158. Instruction Manual 3) Place the servo into the servo tray. Center  the servo within the tray and drill 1.5mm pilot holes through the block of wood for each of the four mount- ing screws provided with the servo. Secure Drill a hole 1.5mm...
  • Page 6 B.A.Eagle. Item code: BH158. Instruction Manual 4x15 mm Silicone Tube 3x15mm 3x10mm 5x33mm Bend and cut. Using a modeling knife, carefully remove the film cov- ering from the gear slots at the wing. Make sure that you do not remove any wood from the slots. Bottom side.

  • Page 7: Installing The Engine Mount

    B.A.Eagle. Item code: BH158. Instruction Manual Install and secure the wheel. IV. INSTALLING THE ENGINE MOUNT There are two options: Collar 1. Electric motor 5x33mm 2. Engine mount. OPTION 1: ELECTRIC MOTOR See pictures below: Apply threadlocker (screw cement). Secure 4x70mm 4x20mm Secure the wheel pants.

  • Page 8: Option 2: Engine Mount

    B.A.Eagle. Item code: BH158. Instruction Manual OPTION 2: ENGINE MOUNT See pictures below: Be sure to equip Not included. 4x30mm air vent pipe. Tygon tubing (Gas). And silicone tubing (Methanol). To carburetor Locate the long piece of wire used for the throttle fuel inlet Tubing for pushrod.

  • Page 9: Installing The Fuselage Servos

    B.A.Eagle. Item code: BH158. Instruction Manual 2.INSTALLING THE FUSELAGE SERVOS Secure Throttle pushrod  1) Install the rubber grommets and brass collets into the elevator, rudder and throttle servos. Test fit the servos into the servo tray. Trim the tray if neces- sary to fit your servos.

  • Page 10: Installing Horizontal Stabilizer

    B.A.Eagle. Item code: BH158. Instruction Manual  3) Check the fit of the horizontal stabilizer in its slot. Make sure the horizontal stabilizer is square and centered to the fuselage by taking measurements, but don’t glue anything yet. VII. INSTALLING HORIZONTAL STABILIZER Check to mark sure the wing and stabilizer are paralell.

  • Page 11: Elevator Control Horn Installation

    B.A.Eagle. Item code: BH158. Instruction Manual Secure. Cut. Bend Elevator pushrod Flaslink 1. ELEVATOR CONTROL HORN servo arm Pushrod wire INSTALLATION Secure. Elevator control horn install as same as the way of aileron control horn. Snap keeper Please see pictures below. Elevator servo Bottom side.
  • Page 12 B.A.Eagle. Item code: BH158. Instruction Manual RUDDER CONTROL HORN PUSHROD INSTALLATION Secure Rudder control horn and pushrod install as same as method of elevator. Rudder pushrod Rudder control horn Silicone Tube Pushrod Rudder install as same as the way of aileron. Control horn Please see pictures below.

  • Page 13: Installing The Switch, Receiver And Battery

    B.A.Eagle. Item code: BH158. Instruction Manual *** Test fit the aluminium tube dihedral brace into each IX. INSTALLING THE SWITCH, wing haft. The brace should slide in easily. If not, use RECEIVER AND BATTERY 220 grit sand around the edges and ends of the brace until it fits properly.

  • Page 14: Installing The Spinner

    B.A.Eagle. Item code: BH158. Instruction Manual Installing the fuselage hatch as same as picture below. Adhesive tape. Pilot XII. INSTALLING THE SPINNER A/B Epoxy glue. Install the spinner backplate, propeller and spinner cone. Open and Close Position the canopy so the rear frame on the canopy is aligned with the rear edge of the cockpit opening.

  • Page 15: Control Throws

    B.A.Eagle. Item code: BH158. Instruction Manual BALANCING CONTROL THROWS  1) We highly recommend setting up a plane using  1) It is critical that your airplane be balanced cor- rectly. Improper balance will cause your plane to lose the control throws listed. control and crash.
  • Page 16 I/C FLINGT WARNINGS Always operate in open areas, away ALWAYS adjust the engine from from factories, hospitals, schools, NEVER fly near power lines, behind the propeller, and do not buildings and houses etc. NEVER aerials or other dangerous areas allow any part of your body to be in fly your aircraft close to people or including airports, motorways etc.
