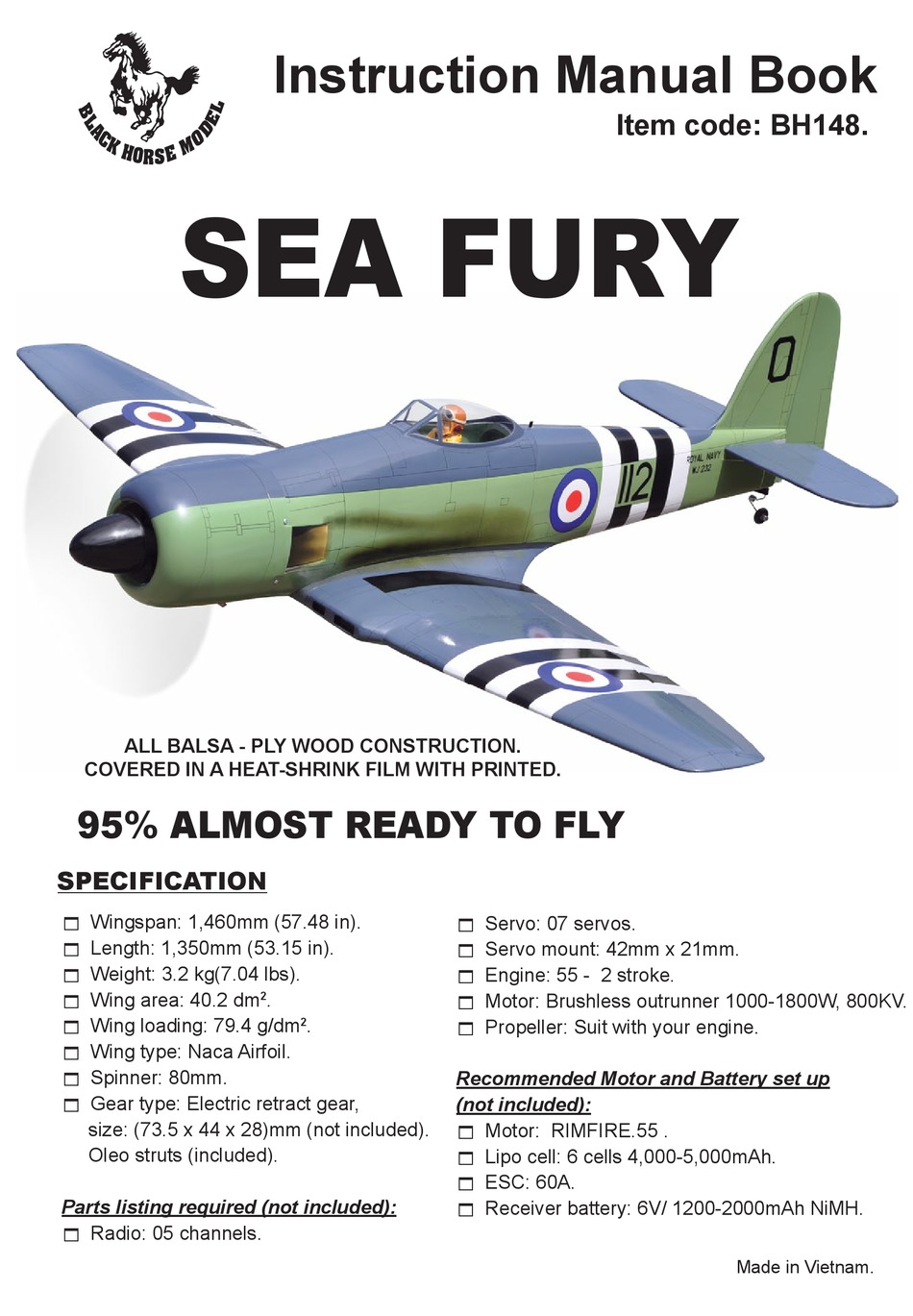

SEA FURY
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
95% ALMOST READY TO FLY
SPECIFICATION
 Wingspan: 1,460mm (57.48 in).
 Length: 1,350mm (53.15 in).
 Weight: 3.2 kg(7.04 lbs).
 Wing area: 40.2 dm
 Wing loading: 79.4 g/dm
 Wing type: Naca Airfoil.
 Spinner: 80mm.
 Gear type: Electric retract gear,
size: (73.5 x 44 x 28)mm (not included).
Oleo struts (included).
Parts listing required (not included):
 Radio: 05 channels.
Instruction Manual Book
.
2
.
2
Item code: BH148.
 Servo: 07 servos.
 Servo mount: 42mm x 21mm.
 Engine: 55 - 2 stroke.
 Motor: Brushless outrunner 1000-1800W, 800KV.
 Propeller: Suit with your engine.
Recommended Motor and Battery set up
(not included):
 Motor: RIMFIRE.55 .
 Lipo cell: 6 cells 4,000-5,000mAh.
 ESC: 60A.
 Receiver battery: 6V/ 1200-2000mAh NiMH.
Made in Vietnam.
