Summary of Contents for Ecler VEO-XPT44

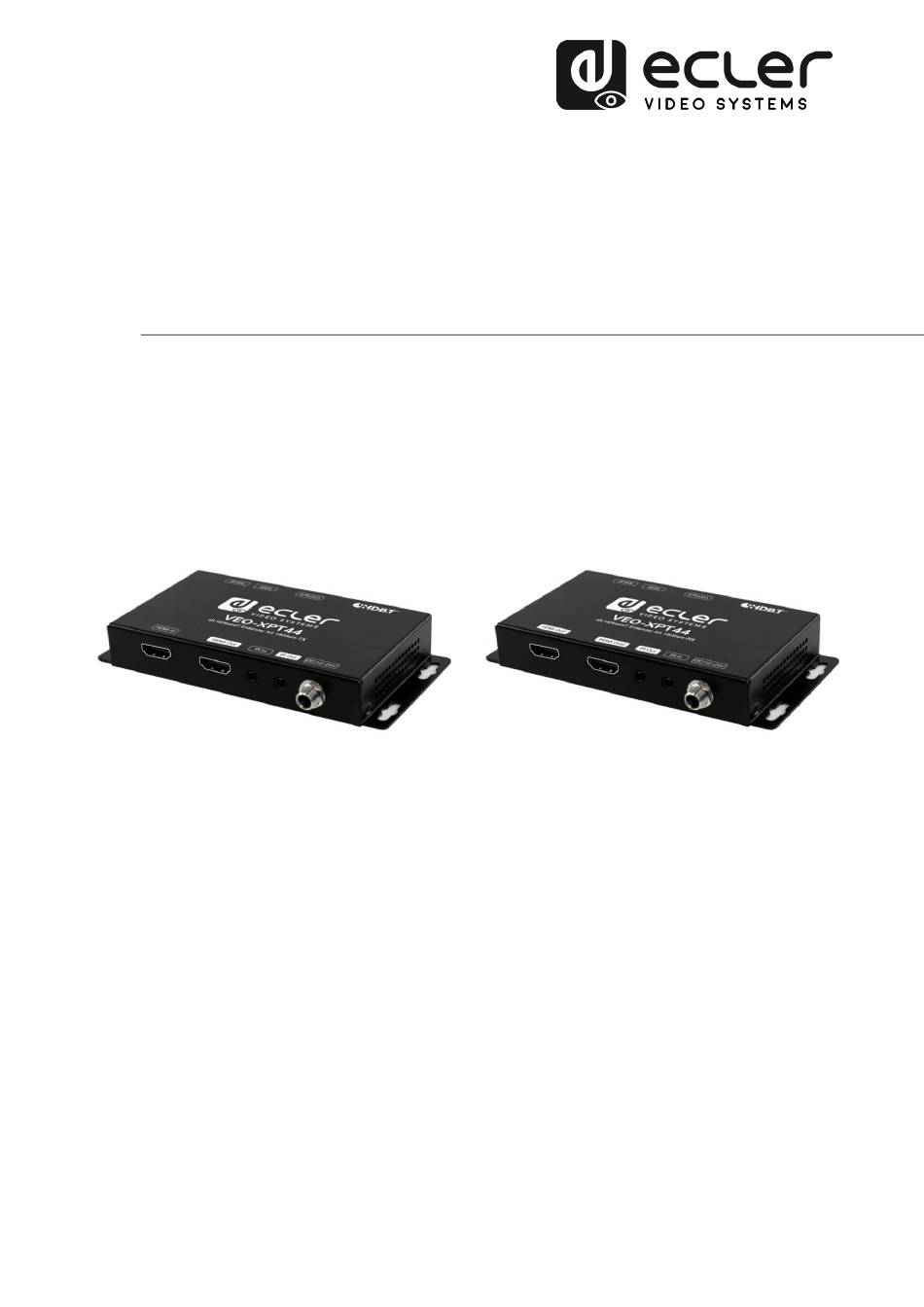

- Page 1 VEO-XPT24 4K HDBaseT EXTENDER HDMI 2.0 HDBaseT Extender Kit 18GBPS USER MANUAL...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 PACKAGE CONTENTS ......................6 PANEL DESCRIPTIONS ......................6 6.1. Transmitter Frontal Panel and Rear Panel ................. 6 6.2. Receiver Frontal and Rear Panel ................... 7 CONNECTION AND INSTALLATION ................. -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note
3. IMPORTANT NOTE Thank you for choosing our VEO-XPT44 4K HDBaseT EXTENDER. It is VERY IMPORTANT to carefully read this manual and to fully understand its contents before any connection in order to maximize your use and get the best performance from this equipment. -
Page 6: Package Contents
5. PACKAGE CONTENTS 1 x Transmitter Unit 1 x Receiver Unit 1 x 24VDC International Power Supply (One PSU for both units) 1 x IR Blaster unit 1 x IR Receiver unit 2 x Phoenix plugs for RS232 cable termination 6. -
Page 7: Receiver Frontal And Rear Panel
7. CONNECTION AND INSTALLATION 1. Connect a HDMI signal source (such as Blue Ray Player, STB etc) into the HDMI input of VEO-XPT44. 2. Connect a CAT. 5e/6a/7 cable from RJ45 output of TX to RJ45 input of RX. 3. Connect a HDMI display device (such as a 4K or Full HD display) to the HDMI output of VEO-XPT44 4. -
Page 8: Application Diagram
5. Phoenix RS232 Ports can be connected to DTE-DCE devices for pass-through RS232 transmission. 6. Connect the 24VDC power supply to the VEO-XPT44 Transmitter. 8. APPLICATION DIAGRAM... -
Page 9: Technical Specifications
40 meters up to 130 feet CAT.5e/6 @ 1080p up to 60 meters up to 197 feet CAT.6a/7 @ 1080p up to 70 meters up to 230 feet Distance HDMI up to 10 meters with Ecler VEO cables... - Page 10 Temperature Operating -10 to +50°C (14 to +122 °F) Humidity 5 to 90 % RH (no condensation) Power Consumption 12 W (Max, TX+RX) Supply Input: AC100~240V 50/60Hz Output: DC 24VDC 1A Dimension H x W x D 140 × 67 × 20 (mm) Weight 0.7Kg / 1.54lb (Pairs)
- Page 11 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
