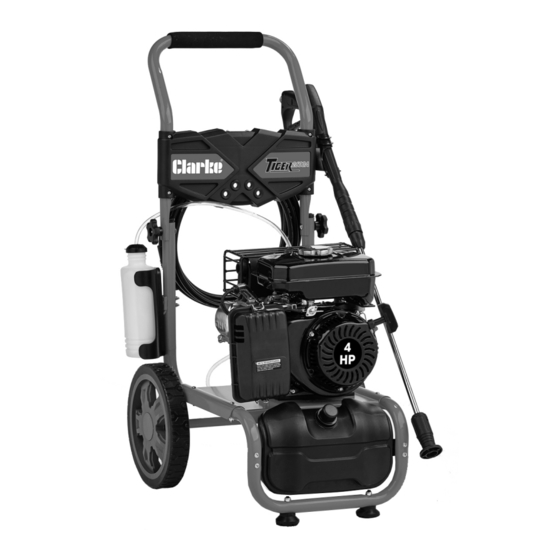

- Page 1 WARNING: Do not use the machine without reading this manual PETROL DRIVEN POWER WASHER MODEL NO: TIGER 3000B PART NO: 7320212 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0521...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE Petrol driven power washer. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
3. DO NOT let children or untrained personnel use this machine. 4. DO NOT operate the machine with any of the covers removed. 5. DO NOT try to repair this machine. Always refer to your CLARKE service department for all repairs. -
Page 4: Safety Symbols
SAFETY SYMBOLS WARNING: Risk of injection or severe injury. Do not direct discharge stream at persons or animals. Keep clear of nozzle. This machine is to be used only by qualified operators. WARNING: Risk of spray injury. Spray can propel objects. - Page 5 OVERVIEW NO DESCRIPTION NO DESCRIPTION Fuel Tank Cap 11 Engine On/Off Switch Fuel Tank 12 Oil Filler Cap Spark Plug 13 Water Outlet Choke 14 Detergent Tank Gun Assembly 15 Water Inlet Lance Assembly 16 Bypass Drain Hose Air Filter Cover 17 Hose Holder Recoil Pull Start 18 Lance Holder...
-
Page 6: Unpacking And Assembly
UNPACKING AND ASSEMBLY Unpack your pressure washer and make sure that the following items are present. Contact your CLARKE dealer immediately if any parts are missing or damaged. • 1 x Petrol Power Washer • 1 x Gun Assembly • 2 x Wheel c/w Axle •... -
Page 7: Connecting The Handle
CONNECTING THE HANDLE 1. Slide the upper handle into position as shown. 2. Secure using a bolt and handwheel. • The handwheel should be on the outside. FITTING THE WATER BOTTLE NOTE: The water bottle is only used when using the drawing water from an unpressurised source such as a water butt. -
Page 8: Fitting The Lance/Hose Holder
FITTING THE LANCE/HOSE HOLDER Fit the holders into the positions shown and secure using the washers and nuts provided. CONNECTING THE HIGH PRESSURE HOSE CONNECT THE HOSE TO THE GUN 1. Screw the high pressure hose onto the gun assembly. •... -
Page 9: Connecting The Water Supply
CONNECTING THE WATER SUPPLY Always follow the regulations of your local water supplier. The pressure washer must never be connected to the drinking water supply without using a system separator (also known as a backflow preventer) available from most hardware stores. NOTE: Water that has flowed through a system separator is considered non- drinkable. - Page 10 2. Insert the oil filler cap back into place and then remove it again. 3. If the oil reads low on the dipstick, add oil to the oil reservoir (Max 0.6L). • We recommend the use of SAE10W-30 oil. • Do not overfill the oil reservoir. 4.
-
Page 11: Starting Your Pressure Washer
STARTING YOUR PRESSURE WASHER 1. Turn the water supply on, making sure that the tap is fully open. WARNING: FAILURE TO TURN ON THE WATER COULD CAUSE DAMAGE TO THE PRESSURE WASHER. 2. Set the choke lever to the CLOSE position. - Page 12 5. Set the engine switch to the on (I) position. 6. Pull the recoil starting handle lightly until you start to feel resistance and then pull up sharply to start the engine. • You may have to do this more than once.
-
Page 13: Interrupting Operation
INTERRUPTING OPERATION 1. Release the trigger. NOTE: The pressure washer will automatically go into bypass mode. WARNING: DO NOT ALLOW THE UNIT TO OPERATE IN BYPASS MODE FOR MORE THEN TWO MINUTES AT ANY TIME. TURN THE UNIT OFF IF IT IS NOT GOING TO BE USED FOR LONGER THAN THIS. -
Page 14: Applying Detergents And Cleaning Agents
CLARKE Wash & Wax, both available from your CLARKE dealer. 3. Hold the rear of the nozzle on the high pressure lance and slide the front of the nozzle forwards to low pressure. - Page 15 3. Turn off the engine switch, to the off (0) position. 4. Turn water supply off at the tap. • NEVER turn the water off with the engine running. 5. Release the pressure in the pump and hose by squeezing the trigger for a few seconds until no more water comes out of the nozzle.
-
Page 16: Water Butt Connection
WATER BUTT CONNECTION This machine has the ability to draw its own water, meaning you can use water not under pressure such as rainwater collected in a water butt. To do this you must carry out the following procedure. 1. Remove the quick connector from the water inlet. - Page 17 5. Fill the priming bottle with water. 6. Connect the hose from the bottle to the self-suction valve shown. 7. Place the filter into the water source and start the pressure washer, See “Starting your pressure washer” on page 11. 8.
-
Page 18: Storage Procedure
STORAGE 1. Disconnect the high pressure hose and drain all water from the hose. 2. Coil the hose and store the gun/lance in the holders located on the side frame of the pressure washer. STORAGE PROCEDURE Make sure that the pressure washer has been thoroughly cleaned before storing it in a clean dry place. -
Page 19: Cleaning The Fuel Strainer
5. Rinse thoroughly and leave it to dry. Once it is completely dry, immerse the filter in clean engine oil and squeeze the filter to remove excess oil. • If the air filter is damaged contact CLARKE spare parts department for a replacement. -
Page 20: Changing The Spark Plugs
CHANGING THE SPARK PLUGS CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMOVING THE SPARK PLUG. 1. Remove the spark plug cap from the spark plug. 2. Use the supplied spark plug spanner to remove the spark plug. 3. Remove any carbon that has accumulated around the spark- plug. -
Page 21: Troubleshooting
TROUBLESHOOTING If the following does not solve your problem contact the CLARKE service dept. PROBLEM CAUSE SOLUTION Engine will not No fuel. Add fuel. start (see Low oil. Add oil. engine manual for further Pressure builds up Squeeze the gun trigger to relieve... - Page 22 PROBLEM CAUSE SOLUTION Lack of Choke lever is in the Set the choke lever to the OFF pressure (initial ON position. position. use) continued Throttle control lever is Move the throttle control lever to left. not set high enough. High pressure hose is Make sure the high pressure hose is too long.
-
Page 23: Specifications
SPECIFICATIONS ENGINE Engine type Petrol (unleaded). OHV Single cylinder 4 stroke forced air cooling Capacity/displacement: 196 cc Oil Capacity 0.6 L Lubrication Grade SAE10W-30 Fuel Tank Capacity (Litres) WATER CONNECTION Max. Feed Temperature 60 °C Max. Feed Pressure 3-6 Bar PERFORMANCE DATA Maximum Pump Pressure 200 Bar... -
Page 24: Exploded Diagram
EXPLODED DIAGRAM WARNING: TO ENSURE MACHINE SAFETY, USE ONLY ORIGINAL SPARE PARTS FROM CLARKE INTERNATIONAL. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 25: Component Parts List
COMPONENT PARTS LIST NO DESCRIPTION NO DESCRIPTION Cross pan head screw M6x40 Flat Washer Ø8 Detergent Tank Spring Washer Ø8 Inner Hexagon Bolt M8x42 Inner Hexagon Bolt M8x25 Rubber Foot Washer Lance Rubber Foot Frame Overflow Valve Cover Locknut M8 Panel Flat Washer Ø6 Locknut M8... - Page 26 ACCESSORIES The range of accessories listed below may be purchased from your CLARKE dealer. ITEM PART NUMBER 5 Litres Detergent (Traffic Film Remover) 3050821 25 Litres Detergent (Traffic Film Remover) 3050820 5 Litres Wash ‘n’ Wax 3050815 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 27: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
