Summary of Contents for Clarke TIGER 2600

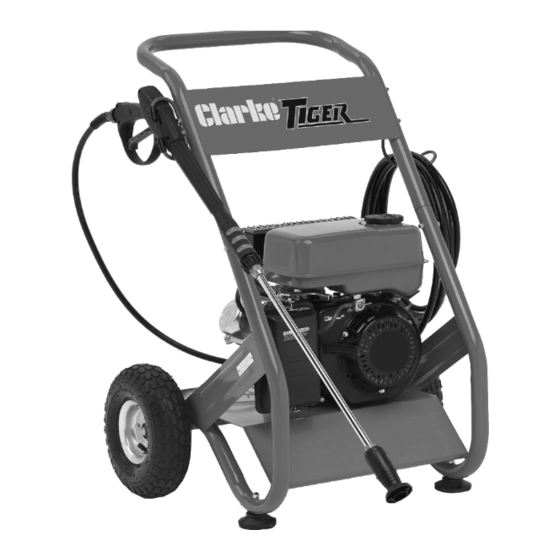

- Page 1 WARNING: Read these instructions before using the machine PETROL DRIVEN POWER WASHER MODEL NO: TIGER 2600/3000 PART NO: 7320205/7320210 OPERATION & MAINTENANCE INSTRUCTIONS LS0615...
-
Page 2: Environmental Recycling Policy
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission. This guarantee does not effect your statutory rights. ACCESSORIES The range of accessories listed below are available from your CLARKE dealer. ITEM PART NUMBER 5 Litres Detergent (Traffic Film Remover) -
Page 3: General Safety Rules
3. DO NOT let children or untrained personnel use this machine. 4. DO NOT operate the machine with any of the covers removed. 5. DO NOT try to repair this machine. Always refer to your Clarke service department for all repairs. -
Page 4: Safety Symbols
SAFETY SYMBOLS WARNING: Risk of injection or severe injury. Do not direct discharge stream at persons or animals. Keep clear of nozzle. This machine is to be used only by qualified operators. WARNING: Risk of spray injury. Spray can propel objects. - Page 5 OVERVIEW DESCRIPTION NO DESCRIPTION Fuel Tank Cap Throttle Fuel Tank Engine On/Off Switch Spark Plug Oil Filler Cap Choke Water Outlet Gun Assembly Detergent Hose Lance Water Inlet Air Filter Cover Bypass Drain Hose Recoil Pull Start Hose Holder Fuel Valve Lance Holder Parts &...
-
Page 6: Connecting The Handle
ASSEMBLY Unpack your pressure washer and check to ensure the following items are present. Contact your Clarke dealer immediately if any parts are missing or damaged. •1 x Petrol Power Washer •2 x Wheel & Axle Assembly •1 x Hose Bracket •1 x Nozzle Cleaning Pin... - Page 7 FITTING THE RUBBER FEET 1. Fit the rubber feet to the legs as shown. FITTING THE LANCE/HOSE HOLDER 1. Fit the holders into the positions shown and secure using the washers and nuts provided. FITTING THE WATER BOTTLE 1. Fit the bracket to the frame as shown using the bolts, nuts and washers supplied.
-
Page 8: Connecting The High Pressure Hose
CONNECTING THE HIGH PRESSURE HOSE CONNECT THE HOSE TO THE GUN 1. Screw the high pressure hose onto the gun assembly. • Tighten the connector, hand tight only. Do not use a spanner. NOTE: Make sure the connection is secure. CONNECT THE HOSE TO THE PRESSURE WASHER 1. -
Page 9: Connecting The Water Supply
CONNECTING THE WATER SUPPLY Always follow the regulations of your local water supplier. The pressure washer must never be connected to the drinking water supply without using a system separator (also known as a backflow preventer) available from most hardware stores. NOTE: Water that has flowed through a system separator is considered non- drinkable. - Page 10 2. Insert the oil filler cap back into place and then remove it again. 3. If the oil reads low on the dipstick, add oil to the oil reservoir (Max 0.4L). • We recommend the use of SAE10W-30 oil. • Do not overfill the oil reservoir.
-
Page 11: Starting Your Pressure Washer
STARTING YOUR PRESSURE WASHER 1. Turn the water supply on, making sure that the tap is fully open. WARNING: FAILURE TO TURN ON THE WATER COULD CAUSE DAMAGE TO THE PRESSURE WASHER. 2. Set the choke lever to the START position. - Page 12 5. Set the engine switch to the on (I) position 6. Pull the recoil starting handle lightly until you start to feel resistance and then pull up sharply to start the engine. • You may have to do this more than once.
-
Page 13: Interrupting Operation
INTERRUPTING OPERATION 1. Release the trigger. NOTE: The pressure washer will automatically go into bypass mode. WARNING: DO NOT ALLOW THE UNIT TO OPERATE IN BYPASS MODE FOR MORE THEN TWO MINUTES AT ANY TIME. TURN THE UNIT OFF IF IT IS NOT GOING TO BE USED FOR A PERIOD LONGER THAN THIS. -
Page 14: Applying Detergents And Cleaning Agents
CLARKE Traffic Film Remover which is a powerful low foaming agent for car cleaning, patio cleaning etc., or CLARKE Wash & Wax, both available from your CLARKE dealer. 2. Hold the rear of the nozzle on the high pressure lance and slide the front of the nozzle forwards to low pressure. - Page 15 3. Turn off the engine switch, to the off (0) position. 4. Turn water supply off at the tap. 5. NEVER turn the water off with the engine running. 6. Release the pressure in the pump and hose by squeezing the trigger for a few seconds until no more water comes out of the nozzle.
-
Page 16: Water Butt Connection
WATER BUTT CONNECTION This machine has the ability to draw its own water, meaning you can use water not under pressure such as rainwater collected in a water butt. To do this you must carry out the following procedure. 1. Remove the quick connector from the water inlet. -
Page 17: Before Storing The Pressure Washer
7. Release the exhaust valve. 8. Turn the self-suction valve to the on position. 9. Release the trigger lock and pull the trigger. 10. When the water spray is at high pressure, close the exhaust valve and set the suction valve to the OFF position. -
Page 18: Maintenance
MAINTENANCE CLEANING THE NOZZLE 1. Shut off the pressure washer and turn off the water supply. 2. Pull trigger on the gun handle to release any water pressure. 3. Disconnect the lance from the gun assembly. 4. Remove any obstructions with the nozzle cleaning tool provided and back flush with clean water. -
Page 19: Cleaning The Fuel Strainer
5. Rinse thoroughly and leave the elements to dry. Once it is completely dry, immerse the filter in clean engine oil and sqeeze to remove excess oil. • If the air filter is damaged contact Clarke spare parts department for a replacement. •... -
Page 20: Changing The Spark Plugs
CHANGING THE SPARK PLUGS CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMOVING THE SPARK PLUG. 1. Remove the spark plug cap from the spark plug. 2. Use the spark plug spanner supplied to remove the spark plug. 3. Remove any carbon that has accumulated around the sparkplug. -
Page 21: Troubleshooting
TROUBLESHOOTING If the following does not solve your problem, please contact the CLARKE service department. PROBLEM CAUSE SOLUTION Engine will not No fuel. Add fuel. start (see engine Low oil. Add oil. manual for further engine Pressure builds up after... - Page 22 PROBLEM CAUSE SOLUTION Lack of pressure Choke lever is in the Set the choke lever to the OFF (right) (initial use) OPEN position. position. (continued) Throttle control lever is Move the throttle control lever to left. not set high enough. High pressure hose is too Make sure the high pressure hose is under long.
-
Page 23: Specifications
SPECIFICATIONS MODEL NO TIGER 2600 TIGER 3000 ENGINE Engine type Petrol (unleaded). OHV Petrol (unleaded). OHV Single Cylinder 4 stroke Single Cylinder 4 stroke forced air cooling forced air cooling Capacity/displacement: 118 cc 196 cc Oil Capacity 0.6 L 0.6 L... - Page 24 EXPLODED DIAGRAM + PARTS LIST (TIGER 2600) WARNING: TO ENSURE MACHINE SAFETY, USE ONLY ORIGINAL SPARE PARTS FROM CLARKE INTERNATIONAL. DESCRIPTION PART NO High Pressure Hose RKTIG260001 Corsshead Bolt RKTIG260002 Gasket RKTIG260003 Hose holder RKTIG260004 Locknut M5 RKTIG260005 4.0HP Engine RKTIG260006 Parts &...
- Page 25 DESCRIPTION PART NO Locknut M8 RKTIG260007 Gasket RKTIG260008 Locknut M5 RKTIG260009 Gasket RKTIG260010 Engine Rubber RKTIG260011 Gasket RKTIG260012 Crosshead Bolt RKTIG260013 Water Pipe RKTIG260014 Water Bottle Cap RKTIG260015 Water Bottle RKTIG260016 Water Bottle Holder RKTIG260017 Water Bottle Hook RKTIG260018 Lower Frame Assy. RKTIG260019 Locknut M8 RKTIG260020...
- Page 26 EXPLODED DIAGRAM+ PARTS LIST (TIGER 3000) WARNING: TO ENSURE MACHINE SAFETY, USE ONLY ORIGINAL SPARE PARTS FROM CLARKE INTERNATIONAL. DESCRIPTION PART NO High Pressure Hose RKTIG300001 Hex Bolt RKTIG300002 Gasket RKTIG300003 Hose holder RKTIG300004 Locknut M5 RKTIG300005 6.5hp Engine RKTIG300006...
- Page 27 DESCRIPTION PART NO Locknut M6 RKTIG300010 Hex Bolt M6 RKTIG300011 Gasket RKTIG300012 Isolator RKTIG300013 Water Pipe RKTIG300014 Water Bottle Cap RKTIG300015 Water Bottle RKTIG300016 Water Bottle Frame RKTIG300017 Water Bottle Hook RKTIG300018 Lower Frame Assy. RKTIG300019 Locknut M8 RKTIG300020 Rubber Foot RKTIG300021 Gasket RKTIG300022...
- Page 28 DECLARATION OF CONFORMITY TIGER 2600 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 29 DECLARATION OF CONFORMITY TIGER 2600 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 30 DECLARATION OF CONFORMITY TIGER 3000 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 31 DECLARATION OF CONFORMITY TIGER 3000 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
