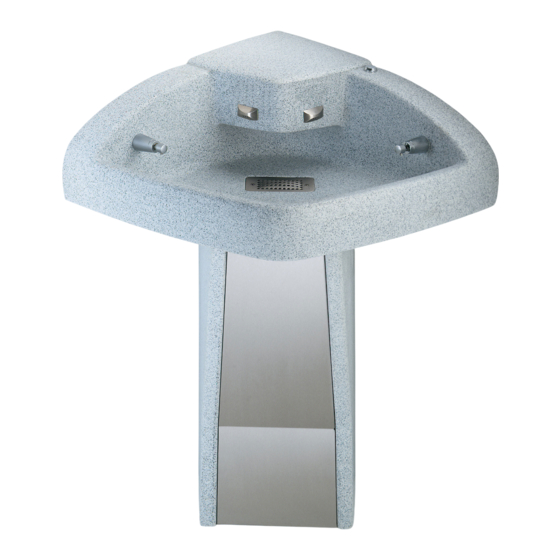

MF2922 (AST shown)
MF2939 (AST shown)
MF2949 (AST shown)
215-1447 Rev. H; ECN 14-00-003
© 2014 Bradley
Page 1 of 26
3/11/2014
Parts & Service
Terreon Multi-Fount Washfountain
Current Models After
February 1, 2013
MF2922
Corner-Fount
MF2933
Tri-Fount
MF2939
Tri-Fount, Wall-Hung
MF2944
Quadra-Fount
MF2949
MF2933 (AST shown)
Quadra-Fount
Table of Contents
Infrared (IR) ................................................................................. 2
Air Metering (AST4) ..................................................................... 5
AST4 and IR Supply and Mixing Valve ...................................... 10
Battery Infrared (BIR3) .............................................................. 11
TouchTime (TT) ......................................................................... 15
Thermostatic Mixing Valve Troubleshooting ............................... 18
Soap System ............................................................................. 19
Drain Spud and Strainer ............................................................ 21
Floor Pedestal Assembly ........................................................... 21
Wall Mount Pedestal Assembly ................................................. 22
Sprayhead Covers ..................................................................... 22
Pedestal Panels ......................................................................... 24
Bowl Assembly ........................................................................... 25
MF2944 (AST shown)
™
™
™
™
, Wall-Hung
®
Cleaning and Maintenance ......................................... 26
Part numbers are subject to
change without formal notice.
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817
bradleycorp.com
Advertisement
Table of Contents
Related Manuals for Bradley Corner-Fount MF2922
Summary of Contents for Bradley Corner-Fount MF2922
-
Page 1: Table Of Contents
MF2944 (AST shown) Part numbers are subject to change without formal notice. MF2949 (AST shown) 215-1447 Rev. H; ECN 14-00-003 © 2014 Bradley P.O. Box 309, Menomonee Falls, WI USA 53052-0309 PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817 Page 1 of 26 3/11/2014 bradleycorp.com... -
Page 2: Infrared (Ir)
269-871 Fitting Straight (front sprayhead) 269-628 Fitting Swivel 90° (side sprayheads) R68-60011-R Tubing 1/4", Red R68-600011-G Tubing 1/4", Green R68-600011-B Tubing 1/4", Black R68-600011-Y Tubing 1/4", Yellow * Specify length in feet Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014... - Page 3 Screw 10-24 x 3/8 PN S07-068A Solenoid Valve, 24 VAC, through S07-068 Solenoid Valve, 24 VAC, closed 110-231 Compression Nut, 1/4" 160-447 Screw 8-16 x 5/8 PN S39-804 Adapter, Valve Inlet S83-152 Transformer Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014...
- Page 4 • reconnect to the adjacent valve and turn on the water supplies to the unit; • place hands in front of sensor. If the station still fails to turn on, replace the sensor. Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014...
-
Page 5: Air Metering (Ast4)
Parts and Service Terreon Multi-Fount Washfountains Air Metering Valve (AST4) - Pushbutton and Sprayhead Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014... - Page 6 Fitting Swivel 90° (Side Sprayheads) R68-600011-R Tubing 1/4" ID, Red R68-600011-G Tubing 1/4" ID, Green R68-600011-B Tubing 1/4" ID, Black R68-600011-Y Tubing 1/4" ID, Yellow 130-023 Spanner Wrench * Specify length in feet. Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014...
- Page 7 140-928 Bracket, Ganged Valve P18-054 Screw 10-24 x 3/8 PN S07-078AS AST4 Valve, Through S07-078S AST4 Valve, Closed 110-231 Compression Nut, 1/4" 160-447 Screw 8-16 x 5/8 PN S39-804 Adapter, Valve Inlet Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014...
- Page 8 Clamp Nut, AST4 Valve 160-449 Screw 8-16 x 7/8" S65-261 Repair Kit - AST4 Valve - Upper S65-262 Repair Kit - AST4 Valve - Lower S65-260 Repair Kit - AST4 Valve - Complete Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014...
- Page 9 2. Clean valve seat and inspect for deep gouges or scratches. Replace valve body if orifices. necessary. 3. Remove any debris clogging off-center hole in rubber diaphragm. Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014...
-
Page 10: Ast4 And Ir Supply And Mixing Valve
Wall Mount (Quadra-Fount Shown) Supply Parts List Corner Quad Item Part No. Description 269-2053 Flex Hose (Supply to TMV) S27-340 Stop 160-169 Screw * Use Qty 1 for TL option, all models. Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014... -
Page 11: Battery Infrared (Bir3)
269-871 Fitting Straight (front sprayhead) 269-628 Fitting Swivel 90° (side sprayheads) R68-60001-R Tubing 1/4", Red R68-60001-G Tubing 1/4", Green R68-60001-B Tubing 1/4", Black R68-60001-Y Tubing 1/4", Yellow * Specify length in feet. Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014... - Page 12 Screw 8-16 x 5/8" PN S39-804 Adapter, Valve Inlet S83-178 Circuit Board 160-451 Screw #6-19 x 3/4 S86-177 Battery Holder 261-010 Lithium Battery, Type DL223A or Equivalent S45-2083 Battery Prepack (includes items 18-19) Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014...
- Page 13 SCrew, #8 x 5/8" 125-165 O-Ring, #2-013 125-160 Flow Restrictor, .5 GPM Solenoid Valve with Circuit Board Closed Body (S07-083S) Thru Body (S07-083AS) Circuit Board (S83-178) Pan-Head Screw 6-19 x 3/4" (160-451) Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014...
- Page 14 Make a note of the numbers printed on the circuit board, then contact your Bradley representative for assistance. Bradley • 215-1447 Rev. H; ECN 14-00-003...
-
Page 15: Touchtime (Tt)
Fitting Swivel 90° (side sprayheads) R68-600011-R Tubing 1/4", Red R68-600011-G Tubing 1/4", Green R68-600011-B Tubing 1/4", Black R68-600011-Y Tubing 1/4", Yellow 182-115 Spacer 110-115 Nut, 1/2-14 130-023 Spanner Wrench * Specify length in feet. Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014... - Page 16 Screw 10-24 x 3/8 PN S07-068A Solenoid Valve, 24 VAC, through S07-068 Solenoid Valve, 24 VAC, closed 110-231 Compression Nut, 1/4" 160-447 Screw 8-16 x 5/8 PN S39-804 Adapter, Valve Inlet S83-134 Transformer Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014...
- Page 17 • reconnect to the adjacent valve and turn on the water supplies to the unit; • pass your hand in front of the sensor. If the station still fails to turn on, replace the sensor. Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014...
-
Page 18: Thermostatic Mixing Valve Troubleshooting
198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014... -
Page 19: Soap System
Tube Supply 1/2 269-1833 110-115 142-002CB Washer S52-109 Soap Valve Body Assembly S09-083 Soap Valve 130-142 Soap Filler Cap Wrench 161-026 142-002AV Washer 269-1834 Ferrule R68-600012 Tube S50-409 Complete Soap System (incl. items 1-22) Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014... - Page 20 Soap thickness is determined by a measurement called viscosity. Soap viscosity should be between 100 cps (centerpoise) and 2500 cps for all Bradley soap dispensers. Thinner soaps are perceived by the users as being "watered down" so users tend to take more than they need, resulting in waste. Thick soaps flow slower and inhibit the "flushing"...
-
Page 21: Drain Spud And Strainer
Access Panel - Standard Height S04-096 Access Panel - Juvenile Height 132-031 Washer 147-019 Screw * Access panel (Item 7) part numbers include the screw and washer. ** Upper Bracket Assembly includes Item 6. Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014... -
Page 22: Wall Mount Pedestal Assembly
Parts List - Sprayhead Cover Attaching Hardware Corner Quad Item Part No. Description 159-367 Anchor Bar 330-144 Threaded Rod 1/4-20 x 11" 161-076 Wing Nut 1/4-20 113-907 Guide Tube 113-966 Support Tube 159-377 Anchor Bar Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014... -
Page 23: Sprayhead Covers
Mystic Moss S04-105AG Coffee Bean S04-105AJ Organic Taupe S04-105AR Cornfield S04-105AK Peppered White S04-105E Empire Gray S04-105 Riverstone S04-105AF Graphite S04-105P Stardust S04-105AH Hillside S04-105AM Summer Sage S04-105AE Jade S04-105N White Sand S04-105W Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014... -
Page 24: Pedestal Panels
S15-120E Riverstone S15-123AF S15-124AF S15-121AF S15-122AF S15-119AF S15-120AF Stardust S15-123AH S15-124AH S15-121AH S15-122AH S15-119AH S15-120AH Summer Sage S15-123AE S15-124AE S15-121AE S15-122AE S15-119AE S15-120AE White Sand S15-123W S15-124W S15-121W S15-122W S15-119W S15-120W S15-119 Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014... -
Page 25: Bowl Assembly
Parts and Service Terreon Multi-Fount Washfountains Bowl - Assembly Parts List - Bowl Assembly Corner Quad Item Part No. Description 160-301 Bolt 142-002CG Washer 140-260 Bracket 200-015 Plate 142-002CH Lockwasher 161-065 Bradley • 215-1447 Rev. H; ECN 14-00-003 3/11/2014... -
Page 26: Terreon ® Cleaning And Maintenance
Avoid contact with harsh chemicals such as paint remover, bleach, acetone, etc. Avoid contact with hot pans and objects. Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days.
