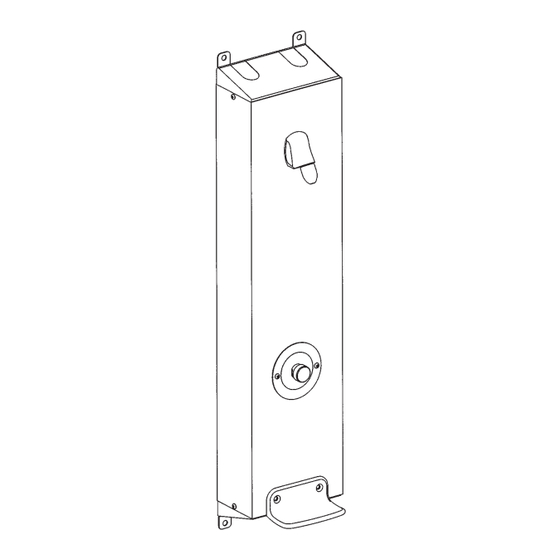

Bradley S67-504 Installation Instructions

Push button metering air valve for 1wca ast econowall shower

1WCA AST Econowall Shower

215-1342 Rev. B; ECN 14-03-023

Page 1 of 4

IMPORTANT

Read this entire installation manual

to ensure proper installation.

Flush all water supply lines before

making connections.

File these instructions with the

owner or maintenance department.

Installation

Instructions

S67-504

Push Button Metering Air

Valve For 1WCA AST

Econowall Shower

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . .2

P.O. Box 309, Menomonee Falls, WI 53052-0309

1-800-BRADLEY

+1 262 251 6000

http://www.bradleycorp.com

Table of Contents

Need help?

Do you have a question about the S67-504 and is the answer not in the manual?

Page 1 Installation Instructions S67-504 Push Button Metering Air Valve For 1WCA AST Econowall Shower Table of Contents Pre-Installation Information ....2 Metering Air Valve Repair parts ..3 Metering Air Valve Troubleshooting .
Page 2 1. This warranty is limited to replacing or repairing, at our option, transportation charges prepaid by the purchaser, any Bradley unit or part thereof which our inspection shall show to have been defective within the limitations of this warranty.
Page 3 (269-960) PLUG (153-409) (110-115) TUBING CONNECTOR (269-960) FILTER WASHER "L" FITTING (269-1188) (269-1186) 3/8" DIA. NIPPLE TUBING (113-339) (269-783C) 1/8" DIA. TUBING (169-960G) FLEXIBLE HOSE (269-653) PUSH BUTTON ASSEMBLY (S45-1712) INCLUDES LABEL (204-501) Bradley • 215-1342 Rev. B; ECN 14-03-023...
Page 4 Cause: Air volume may not be sufficient to operate valve. Solution: Check for leaks and lubricate U-cup: 1. Check all fittings for air leaks. 2. Disassemble push button and lubricate U-cup seal (see push button assembly diagram. Bradley • 215-1342 Rev. B; ECN 14-03-023...
