Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to installation.
Electrical power MUST remain off until installation is complete.
Installer's hardware must be appropriate for wall construction. Wall anchors must have a minimum pull-out
rating of 1,000 lb.
Make sure that all water supply lines have been flushed and then completely turned off before beginning
installation. Debris in supply lines can cause valves to malfunction.
Read this entire installation manual to ensure proper installation. When finished with the installation, file
this manual with the owner or maintenance department. Compliance and conformity to local codes and
ordinances is the responsibility of the installer. Product warranties may be found under "Products" on our
Web site at bradleycorp.com.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
For standard height mounting, do not exceed the recommended 34" distance from the top of the lav deck
to the finished floor. To meet ADA requirements, the lav deck cannot exceed the 34" maximum height
dimension.
215-1709 Rev. M: ECN 19-08-037G
© 2020 Bradley
Page 1 of 12
2/24/2020
Installation
LVGD1
Verge

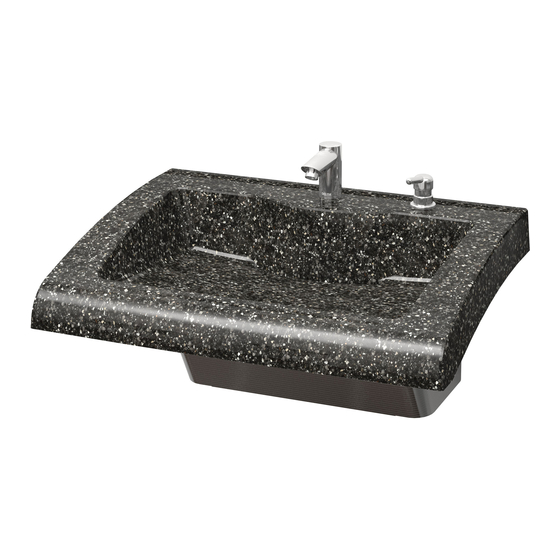

Lavatory System - LVGD-Series
®
with Evero
U .S . Pat . Nos . D625,792 & D633,992
Table of Contents
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Frame Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Mounting Valve to Frame . . . . . . . . . . . . . . . . . . . . . . . .7
Drain Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Faucets and Optional Soap Valve . . . . . . . . . . . . . . . . .8
Bowl Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Strainer and P-Trap . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Adjust the Temperature . . . . . . . . . . . . . . . . . . . . . . . .10
Trap Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . .12
WARNING
NOTICE
IMPORTANT
Natural Quartz Material
®
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
bradleycorp.com
Advertisement
Table of Contents
Related Manuals for Bradley Verge LVGD1
Summary of Contents for Bradley Verge LVGD1
-
Page 1: Table Of Contents
To meet ADA requirements, the lav deck cannot exceed the 34" maximum height dimension. P.O. Box 309 215-1709 Rev. M: ECN 19-08-037G Menomonee Falls, WI 53052 USA © 2020 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 12 2/24/2020 bradleycorp.com... -
Page 2: Components
Complete Drain Prepack (S45-2471) Strainer and Screw (S45-2479) Drain Adapter O-Ring Prepack (125-111) Bowl (S45-2480) Contact your Bradley Representative for color options Drain Adapter Packing Washer #10-24 Chrome P-Trap (S29-094) Screw Plastic P-Trap (269-1697) Complete Hardware Prepack (S45-2473) Frame Mounting Qty. -
Page 3: Supplies Required
• ½" hot/cold or tempered supply piping • 1½" NPT drain piping • OPTIONAL: 110V GFCI protected electrical outlet for 100–120V AC plug-in transformer (for Bradley Faucets) • Screen filter(s) as needed, if not included with faucet(s) Dimensions (mm) ⁄... - Page 4 5 or 6 14" 14" (356) (356) ⁄ " 29½" (822) 31½" 8½" 8½" (749) (800) (216) (216) ⁄ " ⁄ " (714) ⁄ " (454) ⁄ " ⁄ " (664) (505) (873) Bradley • 215-1709 Rev. M: ECN 19-08-037G 2/24/2020...
-
Page 5: Rough-Ins
VERTICAL HEIGHT ADJUSTMENTS FOR CODES A–E and H FIXTURE STYLE 33½" None Standard Height 31½" Subtract 2" TAS, Grades 6 through 8 or 9 29½" Subtract 4" TAS, Pre-K through Grades 5 or 6 30½" Subtract 3" Juvenile Height Bradley • 215-1709 Rev. M: ECN 19-08-037G 2/24/2020... -
Page 6: Frame Mounting
" lag screws and square washers provided to secure the frame to the backing (5) places . Shim frame as necessary . NOTE: Other fasteners may be used based on wall material . Bradley • 215-1709 Rev. M: ECN 19-08-037G 2/24/2020... -
Page 7: Mounting Valve To Frame
Connect the faucet hoses. Attach the valve to the back side of the frame member with the (2) #10-24 self tapping screws provided. NONE Option For TMV and TL Bradley faucets, two (2) connections are required for TMV. Plastic Hose Bradley •... -
Page 8: Drain Assembly
Packing Washer Drain Adapter #10-24 Screw Faucets and Optional Soap Valve For ease of installation, leave the bowl laying on its back. Install the faucets and optional soap valves according to manufacturer's instructions. Bradley • 215-1709 Rev. M: ECN 19-08-037G 2/24/2020... -
Page 9: Bowl Mounting
Tighten the top screw on the frame . Bowl Mounting (to Wall) Bowl is heavy! Reinforce behind the wall at the two bowl mounting locations, then secure the bowl to the wall . Bradley • 215-1709 Rev. M: ECN 19-08-037G 2/24/2020... -
Page 10: Strainer And P-Trap
Using cover, turn cartridge gently until cause scalding. desired water temperature is reached . Do not turn past stops as this may damage unit . Push cover down and tighten screw . Bradley • 215-1709 Rev. M: ECN 19-08-037G 2/24/2020... -
Page 11: Trap Cover
Hang the trap cover onto the hook, then secure the trap cover with the screws provided, starting with the side screws . Hook Washer #10-24 Screw Finishing Washer #10-24 Flat Head Screw Bradley • 215-1709 Rev. M: ECN 19-08-037G 2/24/2020... -
Page 12: Cleaning And Maintenance
Avoid contact with hot pans and objects. Repair Kits: Evero repair kits are available . Contact your Bradley representative or distributor for part numbers and pricing . Repair kits are made to order and have a shelf life of 30 days .
