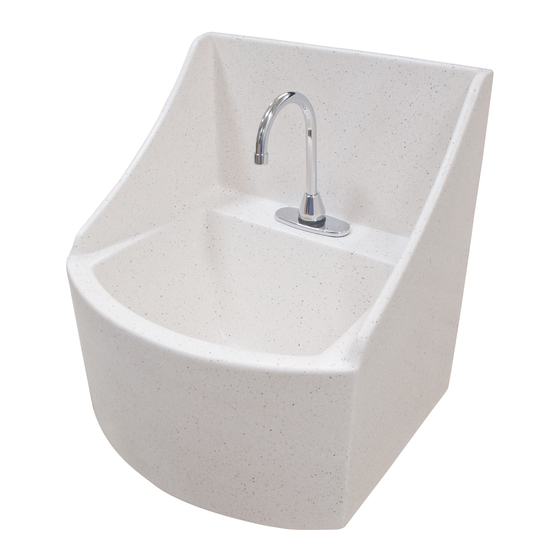

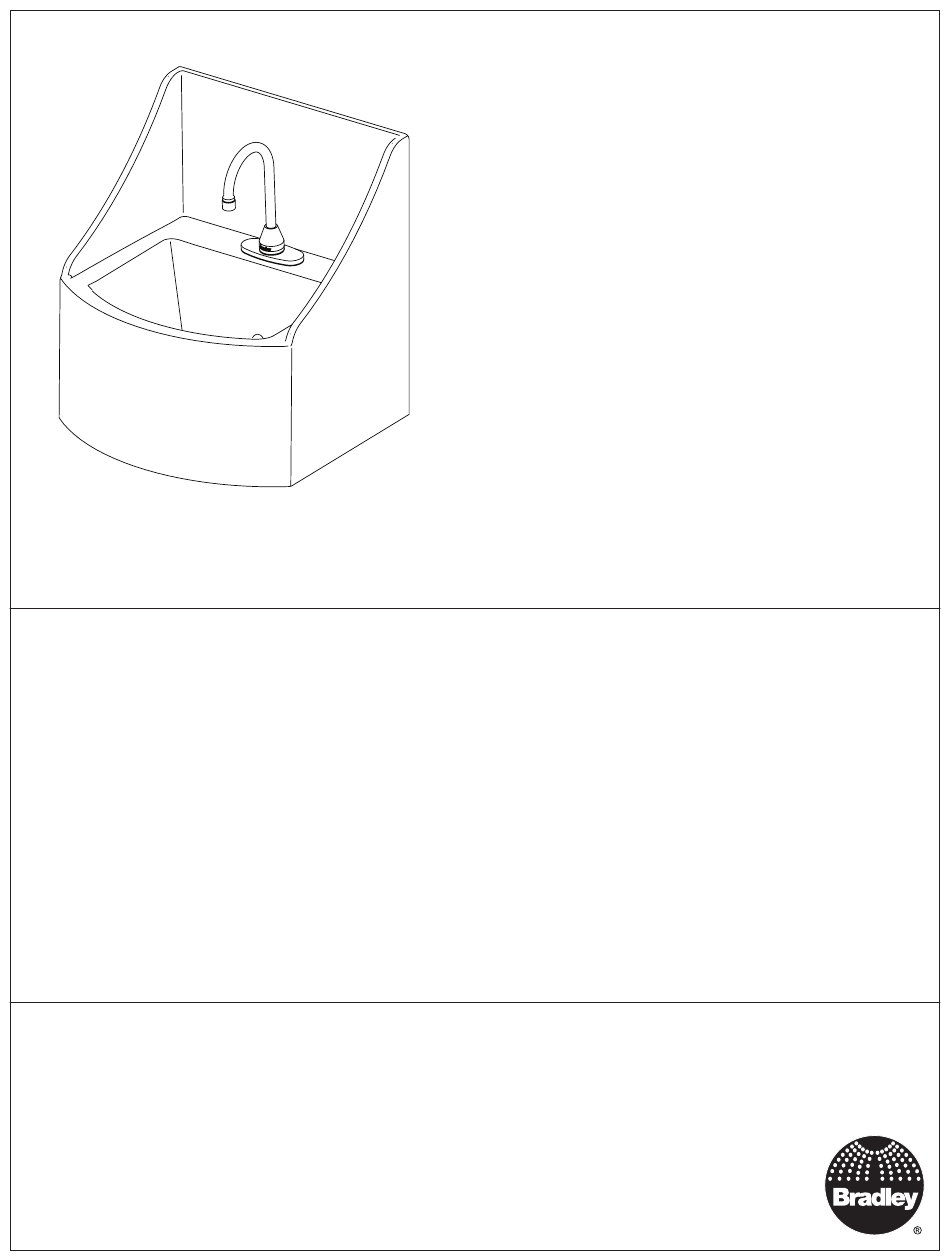

TDWL22 shown with optional S53-325 faucet .
Make sure that all water supply lines have been flushed and then completely turned off before beginning
installation. Debris in supply lines can cause valves to malfunction.
Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to installation.
Electrical power MUST remain off until installation is complete.
Hardware supplied by installer must be appropriate for wall construction. Wall anchors used must have a
minimum pull-out rating of 1,000 lbs.
Read this entire installation manual to ensure proper installation. When finished with the installation, file this
manual with the owner or maintenance department.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
Product warranties may be found under "Products" on our website at www.bradleycorp.com.
215-1734 Rev. D; ECN 15-10-002
© 2017 Bradley
Page 1 of 9
2/20/2017
Installation
TDWL22
Terreon
Table of Contents
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Rough-In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Bowl Mounting with In-Wall Carrier . . . . . . . . . . . . . . . . 6-7
Bowl Mounting with Backplate Weldment . . . . . . . . . . . . 8
Drain Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . 10
WARNING
IMPORTANT
Deep Well Lavatory
®
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
bradleycorp.com
Advertisement
Table of Contents
Related Manuals for Bradley Terreon TDWL22
Summary of Contents for Bradley Terreon TDWL22
-
Page 1: Table Of Contents
Product warranties may be found under "Products" on our website at www.bradleycorp.com. P.O. Box 309 215-1734 Rev. D; ECN 15-10-002 Menomonee Falls, WI 53052 USA 800 BRADLEY (800 272 3539) © 2017 Bradley +1 262 251 6000 Page 1 of 9 2/20/2017 bradleycorp.com... -
Page 2: Supplies Required
Locking Device (qty . 2) Optional Transformer P19-231F 6334 Soap Dispenser 6315-KT0000 Soap Dispenser Kit 6324 Soap Dispenser, Plastic Globe (16-oz .) (batteries and 1000-shot soap included) 6324-68 Soap Dispenser, Plastic Globe (32-oz .) Bradley • 215-1734 Rev. D; ECN 15-10-002 2/20/2017... -
Page 3: Dimensions
Installation TDWL22 TDWL22 – Dimensions 22" (559mm) Top View 16-3/4" (429mm) 20" (508mm) Front View Side View 13-5/8" (346mm) 24" (610mm) 12" (305mm) 3-3/4" (95mm) 10" (254mm) 22" (559mm) Bradley • 215-1734 Rev. D; ECN 15-10-002 2/20/2017... -
Page 4: Rough-In
2½" 2½" (64mm) (64mm) 3¾" 34" 5½" (64mm) (864mm) (140mm) 5½" 27½" (140mm) (699mm) 21½" 23" Waste Outlet (546mm) (584mm) 1½" NPT Drain, 18½" Stub Out 2" (470mm) from Wall Finished Floor Bradley • 215-1734 Rev. D; ECN 15-10-002 2/20/2017... -
Page 5: Bowl Mounting With In-Wall Carrier
For standard height carrier mounting, do not exceed the recommended 30-1/4" distance from the floor. 17-1/4" (219mm) 8-5/8" (438mm) Wall Thru Hole for 2" (51mm) Diameter In-Wall Carrier Arm Access (2 Places) 30-1/4" (219mm) Bradley • 215-1734 Rev. D; ECN 15-10-002 2/20/2017... - Page 6 (ref . information . 3¼" dim . from wall to leveling screw) . Finished Floor Bradley • 215-1734 Rev. D; ECN 15-10-002 2/20/2017...
-
Page 7: Bowl Mounting With Backplate Weldment
Adjust the leveling screws until the bowl is level . Tighten Device Pocket the four leveling screws but do not overtighten . The leveling screws should come in contact with the pads underneath the bowl . Retighten the locking device . Bradley • 215-1734 Rev. D; ECN 15-10-002 2/20/2017... -
Page 8: Drain Assembly
TDWL22 Installation Drain Assembly Strainer Rubber Washer Fiber Washer Tailpiece P-trap Bradley • 215-1734 Rev. D; ECN 15-10-002 2/20/2017... -
Page 9: Cleaning And Maintenance
Solid Surface cleaner and polish to refresh and protect the Terreon Solid Surface material . ® Bradley recommends additional care and maintenance for the darker colored Terreon . For complete instructions on this additional maintenance, visit bradleycorp .com . NOTICE! Do not use strong acid or alkaline chemicals and cleansers to clean Terreon. If these chemicals come in contact with the surface, wipe them off immediately and rinse with soapy water.
