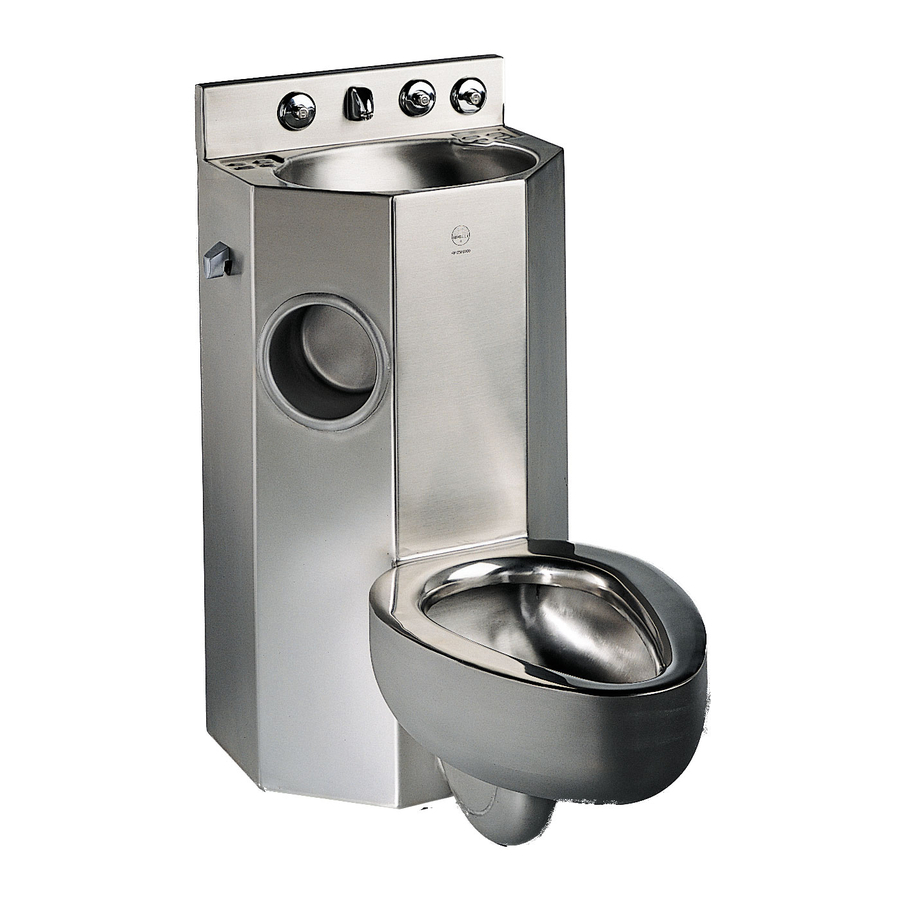

17" chase-mounted five-sided stainless steel combination unit

Advertisement

Installation
Packing List
IS
T H
E
S ID
U P
215-329 Rev. K EN 08-703
© 2008 Bradley Corporation
Page 1 of 4
9/30/08
IMPORTANT!
Bradley Security Fixtures are tamper resistant. All mounting hardware
provided is essential for properly anchoring the unit. Bradley cannot
assume any responsibility for any improperly installed units. Read this
entire installation manual to ensure proper installation. When fi nished
with the installation, fi le this manual with the owner or maintenance
department. Compliance and conformity to local codes and ordinances is
the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for
before discarding packaging material. If any parts are missing, do not begin
installation until you obtain the missing parts.
Make sure that all water supply lines have been fl ushed and then completely
turned off before beginning installation. Debris in supply lines can cause
valves to malfunction.
Product warranties may be found under "Products" on our web site at
bradleycorp.com.
Installation
COMBI5500
17" Chase-Mounted Five-Sided
Stainless Steel Combination Unit
Table of Contents
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Rough-In Information . . . . . . . . . . . . . . . . . . . . . . 2, 3
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . 3
Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 4
P.O. Box 309, Menomonee Falls, WI 53052-0309
Phone: 1-800-BRADLEY
www.bradleycorp.com
Fax: 262-253-4161

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMBI5500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bradley COMBI5500

  • Page 1 © 2008 Bradley Corporation Page 1 of 4 9/30/08 Installation COMBI5500 17" Chase-Mounted Five-Sided Stainless Steel Combination Unit Table of Contents Supplies Required ......2 Rough-In Information .
  • Page 2: Supplies Required

    COMBI5500 Supplies Required: • 1" NPT supply piping to flush valve • Toilet/Lav waste connections • For optional air valve manifold: 1/2" NPT supply piping. Refer to Bradley Installation Manual (215-1158) provided with assembly. • For optional self-closing valve: 1/2" NPT supply piping. Refer to Bradley Installation Manual (215-581) provided with assembly.
  • Page 3 Units Only Mounting Channel (140-558) Valve Mounting Plate (159-292) 1/2" -13 Threaded Stud 0" - 4" Wall (109-039) 4" - 8" Wall (109-040) 8" - 12" Wall (109-048) Washer (140-002AM) (110-119) 9/30/08 COMBI5500 Floor Waste Option 17" (432) 19-11/16" (500)
  • Page 4 COMBI5500 Cleaning Stainless Steel Material Description: Stainless steel is extremely durable, and maintenance is simple and inexpensive. Proper care, particularly under corrosive conditions, is essential. Always start with the simplest solution and work your way toward the more complicated. Routine Cleaning: Daily or as often as needed use a solution of warm water and soap, detergent, or ammonia. Apply the cleaning solution per the manufactures instructions and always use a soft cloth or sponge to avoid damaging the fi...
