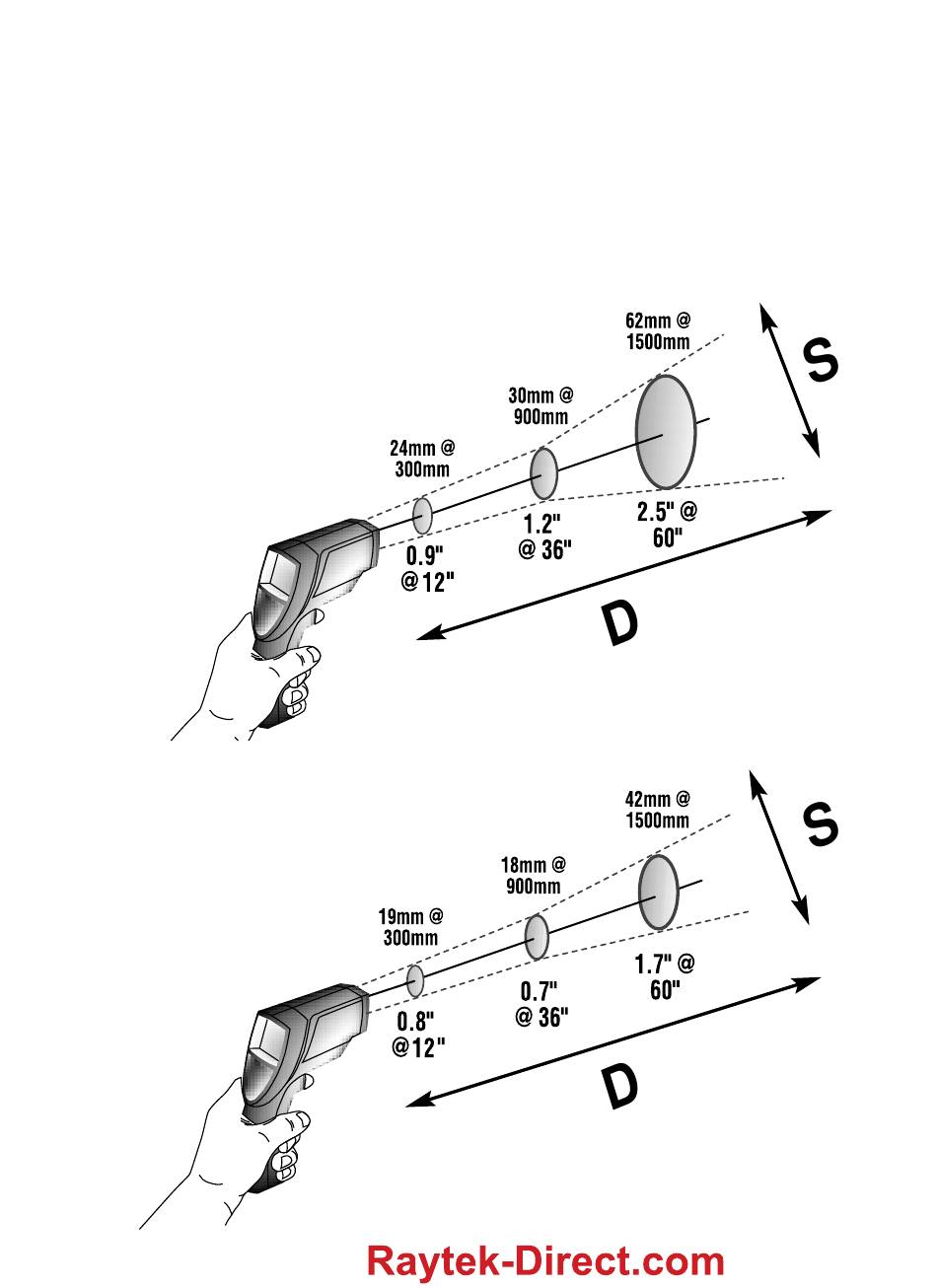

Distance & Spot Size
As the distance (D) from the object increases, the spot size
(S) of the area measured by the unit becomes larger. The rela-
tionship between distance and spot size for each unit is listed
below. The focal point for each unit is 914mm (36"). The spot
sizes indicate 90% encircled energy.

Standard Model

D:S = 30:1
Enhanced Model
D:S = 50:1
8
