Summary of Contents for Kramer VM-8H
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Models: VM-8H, 1:8 HDMI Distributor VM-16H, 1:16 HDMI Distributor... -
Page 2: Table Of Contents
Figure 1: VM-8H 1:8 HDMI Distributor Figure 2: VM-16H 1:16 H Distributor Figure 3: Connecting a VM-8H 1:8 HDMI Distributor Tables Table 1: HDMI Distributor Features Table 2: The EDID Modes Table 3: Technical Specifications of the VM-8H and the VM-16H... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started Quick Start This section provides instructions for rack mounting the unit 1 This quick start also applies to the VM-16H which has 16 outputs instead of eight KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
1 Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions 2 EDID is Extended Display Identification Data 3 The default EDID feature lets you connect the VM-8H/VM-16H without having to connect a display to the output 4 Eight for the VM-8H and 16 for the VM-16H... -
Page 6: About Hdmi
5 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to support Dolby 5.1 audio and high-resolution audio formats 6 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a simple, cost-effective manner KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 7: Defining Edid
) is a data-structure, provided by a display, to describe its capabilities to a graphics card (that is connected to the display’s source). The EDID enables the VM-8H/ VM-16H to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data... -

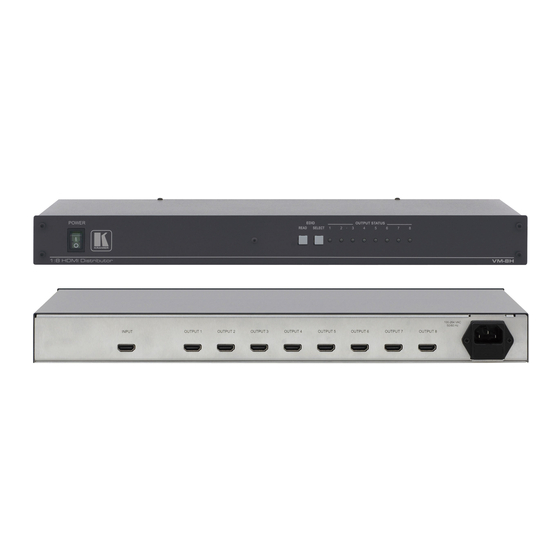

Page 8: Figure 1: Vm-8H 1:8 Hdmi Distributor
Your HDMI Distributors Figure 1: VM-8H 1:8 HDMI Distributor KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Figure 2: Vm-16H 1:16 H Distributor
Your HDMI Distributors Figure 2: VM-16H 1:16 H Distributor... -
Page 10: Table 1: Hdmi Distributor Features
Connects to the HDMI source OUTPUT HDMI Connectors Connect to the HDMI acceptors Power Connector with Fuse AC connector enabling power supply to the unit 1 For the VM-8H, from 1 to 8; for the VM-16H, from 1 to 16 KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 11: Installing The Vm-8H/Vm-16H In A Rack
Installing the VM-8H/VM-16H in a Rack Installing the VM-8H/VM-16H in a Rack This section provides instructions for rack mounting the unit. -
Page 12: Connecting The Vm-8H 1:8 Hdmi Distributor
1 From this section on, all the information is relevant to both the VM-8H and the VM-16H, unless noted otherwise 2 As required. Up to 8 outputs can be connected on the VM-8H and up to 16 outputs can be connected on the VM-16H. Not... -
Page 13: Acquiring The Edid
Connecting the VM-8H 1:8 HDMI Distributor Acquiring the EDID The VM-8H initially operates with the default EDID. This means that you can turn ON the power before connecting any of the acceptors or the source. You can acquire the EDID from: •... -
Page 14: Acquiring The Default Edid
Connecting the VM-8H 1:8 HDMI Distributor 3. Press the READ button. The flashing ceases and the button illuminates. The VM-8H accesses the EDID of the connected output. The EDID of the selected output is stored in the non-volatile memory when the READ button no longer illuminates. -
Page 15: Technical Specifications
Technical Specifications Technical Specifications Table 3 includes the technical specifications: Table 3: Technical Specifications of the VM-8H and the VM-16H VM-8H VM-16H INPUT: HDMI connector OUTPUTS: 8 HDMI connectors 16 HDMI connectors BANDWIDTH: Supports up to 2.25Gbps per graphic channel... - Page 16 KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 17 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
