VIVO-M101(M)
Quick installation and programming guide
This quick guide summarises the full installation manual. The full manual contains safety warnings and other
explanations that must be taken into account. You can download the latest version of this guide and the
installation manual in the "Downloads" section of the Erreka website:
http://www.erreka-automation.com
IMPORTANT
The options and functions described in this guide are applicable from the firmware version indicated on the
NOTE
circuit. As part of a process of continuous improvement, the firmware is subject to the incorporation of new
functionalities or their extension, and consequently to the generation of new versions not necessarily
compatible with the previous ones. Therefore, if your firmware version is lower than the one indicated in
this guide, some options and functions may not be available or may be different.
ELECTRICAL CABLING:
Element
A: Main power supply
B: Flashing light
C: Photocells (Tx / Rx)
D: Pushbutton/wall key
E: Operator / Limit switches
F: Antenna

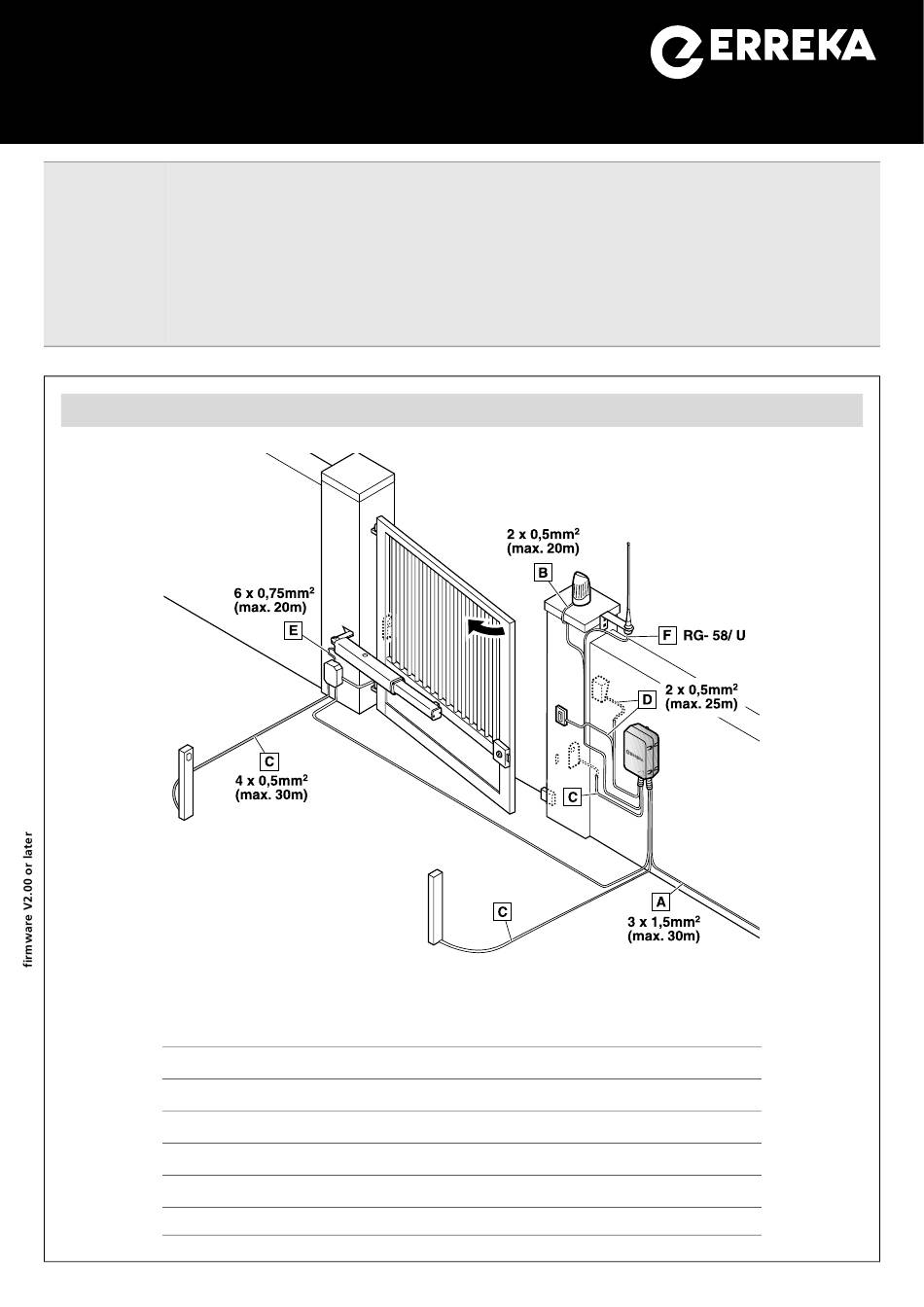

Elements of the complete installation
Nº wires x section
2
3x1.5mm
2
2x0.5mm
2
2x0.5mm
2
2x0.5mm
4x0.75mm
Coaxial cable 50k (RG-58/U)
Maximum length
30m
20m
2
/ 4x0.5mm
30m
25m
2
2
/ 4x0.50mm
20m
5m
English
E175A
5
