RINO-I
Quick installation and programming guide
This quick guide is a summary of the complete installation manual. The manual contains safety warnings and
other explanations which must be taken into account. The most recent versions of this guide and the
installation manual are available at the "Downloads" section on Erreka's website.
http://www.erreka-automation.com
WARNING
The options and functions described in this guide apply for the firmware version indicated on the circuit. The
firmware, as part of a process of continuous improvement, is subject to new functionalities or upgrades being
included as a result of new versions which are not necessarily compatible with previous ones. For this reason,
some options or functions may differ or be unavailable if your firmware is older than shown in this guide.

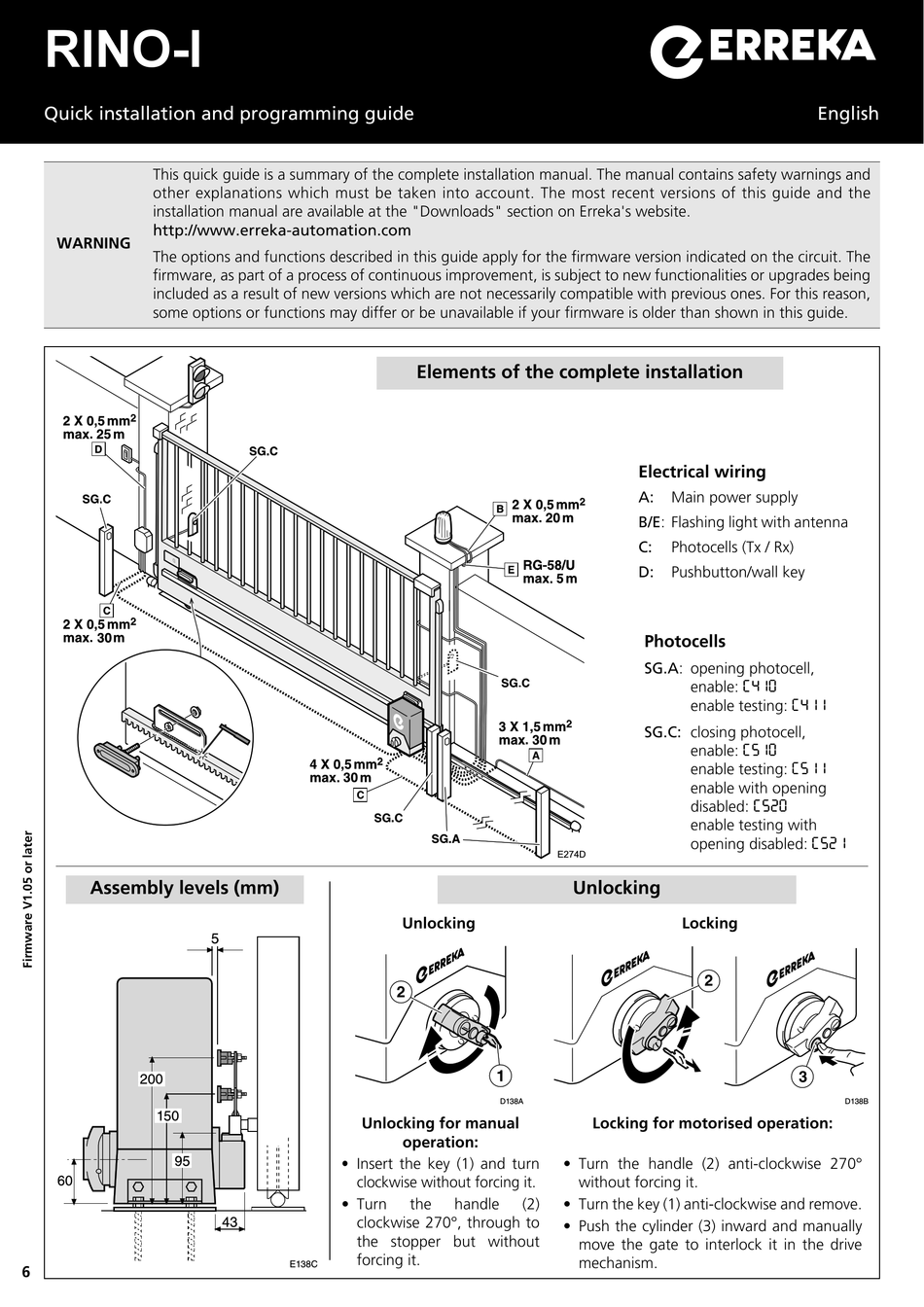

Assembly levels (mm)
6
Elements of the complete installation
Unlocking
2
D138A
Unlocking for manual
operation:
• Insert the key (1) and turn
clockwise without forcing it.
• Turn
the
handle
clockwise 270°, through to
the stopper but without
forcing it.
Electrical wiring
A:
Main power supply
B/E: Flashing light with antenna
C:
Photocells (Tx / Rx)
D:
Pushbutton/wall key
Photocells
SG.A: opening photocell,
enable: C410
enable testing: C411
SG.C: closing photocell,
enable: C510
enable testing: C511
enable with opening
disabled: C520
enable testing with
opening disabled: C521
E274D
Unlocking
Locking
Locking for motorised operation:
• Turn the handle (2) anti-clockwise 270°
without forcing it.
(2)
• Turn the key (1) anti-clockwise and remove.
• Push the cylinder (3) inward and manually
move the gate to interlock it in the drive
mechanism.
English
2
3
D138B
