PREMIS200
Quick installation and programming guide
This quick guide is a summary of the complete installation guide. The full guide contains safety
warnings and other explanations that must be taken into account. The most recent version of
this guide and the installation manual are available at the "Downloads" section on Erreka's
website: http://www.erreka.com.
IMPORTANT
The options and functions described in this guide apply for the firmware version indicated on
NOTE
the circuit. The firmware, as part of a process of continuous improvement, is subject to new
functions or upgrades being included as a result of new versions not compatible with previous
ones. For this reason, some options or functions may differ or be unavailable if your firmware
is older than shown in this guide.
ELECTRICAL CABLES:
Element
Main power supply
Selector
Safety sensor
Radar
CAN (Double swing doors)
Stop
Emergency
Electrical lock (intercom)
Electrical lock (magnetic)
Hold-open retention magnets

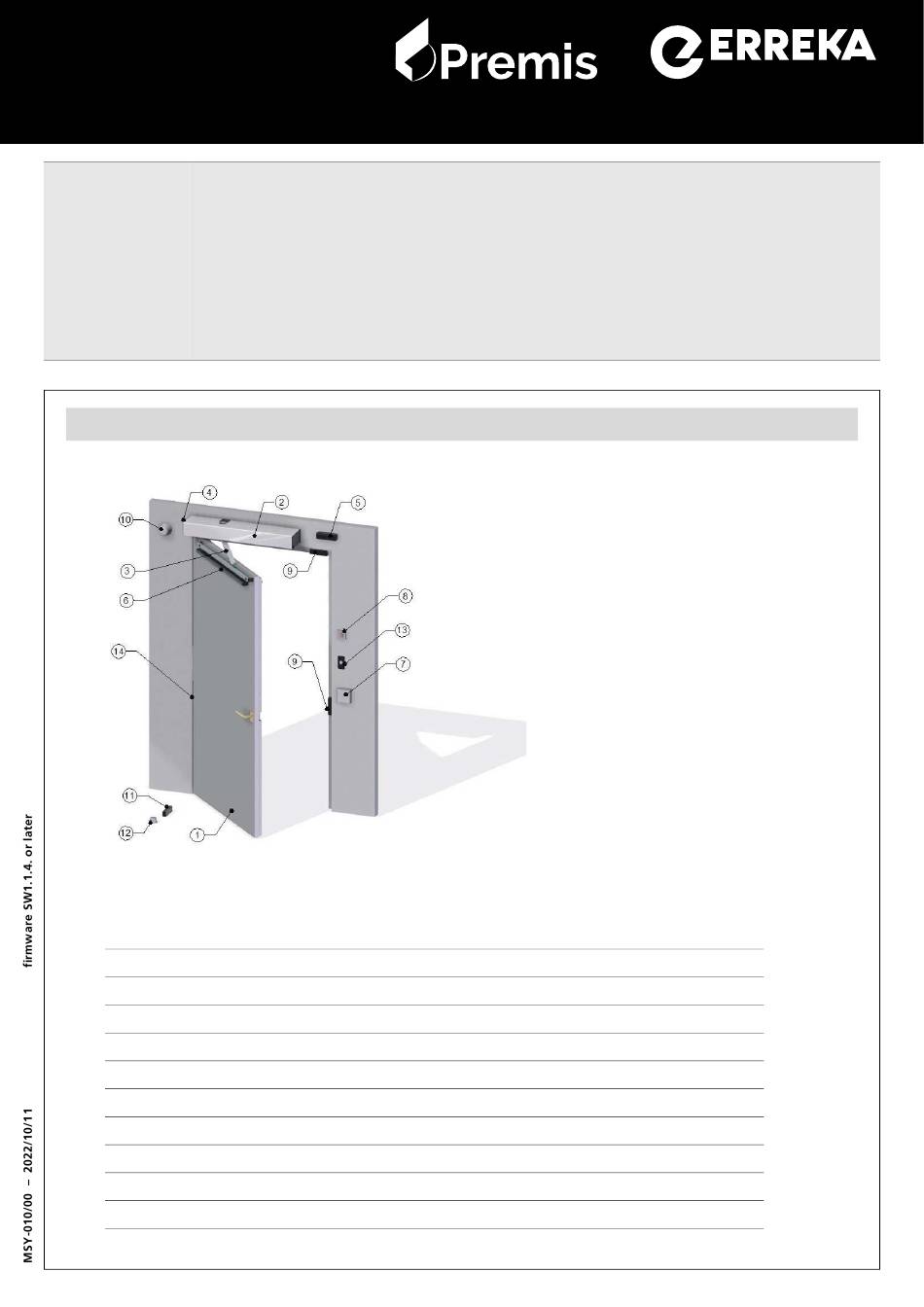

Elements of the complete installation
Nº wires x section
2
3 x 1,5mm
2
4 x 0,5mm
2
6 x 0,5mm
2
4 x 0,5mm
2
2 x 0,5mm
2
2 x 0,5mm
2
2 x 0,5mm
2
2 x 0,5mm
2
2 x 0,5mm
2
2 x 0,5mm
15 Door
16 Operator
17 Arm: Pull / Push
18 Side switch
19 Activation sensor
20 Safety sensor
21 Selector
22 Emergency Stop
23 Electrical lock
24 Smoke sensor (Fire door)
25 "Hold-open" retention magnets
(Fire resistant door)
26 Door stopper
27 External key
28 Fingers guards
Remarks
Screened cable
Screened cable
Screened cable
With test; two more wires
With test; two more wires
English
13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premis PREMIS200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Erreka Premis PREMIS200

  • Page 1 This quick guide is a summary of the complete installation guide. The full guide contains safety warnings and other explanations that must be taken into account. The most recent version of this guide and the installation manual are available at the “Downloads” section on Erreka’s website: http://www.erreka.com.
  • Page 2 Technical characteristics of the operator PREMIS200 CHARACTERISTIC PREMIS200 PREMIS200M Dimensions Operator 644x75x138 mm Power supply (V/Hz) 230VAC - 50/60 Hz 125VAC 50/60Hz Power consumed (VA) 85VA Motor voltage (Vdc) Max. torque (Nm) Opening angle Adjustable from 0 -100º (with mechanical stopper) Network input fuse 4 A (5X20) Peripherals power supply (voltage)
  • Page 3 Pull slide arm (APR01) - operator on the lintel - hinges side OPENING 0:150mm DIRECTION HEIGHT SPACE DOOR - OPERATOR X=25mm OPENING (Standard) DIRECTION X=50mm (Standard+APR03) X=75mm DOOR RETRACTION (Standard+APR04) DOOR - OPERATOR: X=100mm Y = 0 ÷ 100mm Y = 100 ÷ 250mm (Standard+APR03+APR04) (APR01) (APR09)
  • Page 4 Push articulated arm (APR02) - operator on the lintel - side opposite the hinges OPENING DIRECTION HEIGHT SPACE DOOR - OPERATOR OPENING DIRECTION X=2mm (Standard) X=27mm (Standard+APR03) X=52mm (Standard+APR04) DOOR RETRACTION DOOR - OPERATOR: Y = 0 ÷ 210mm X=77mm (APR02) (Standard+APR03+APR04) Max.
  • Page 5 Operator installation Check the installation space:  10 mm of space from the top of the operator.  The operator's fastening structure must be solid and must not have significant deformation. Disassemble the operator's bracket profile Side switch 36 37 38 14 15 Reset button...
  • Page 6: Motor Brake

    Spring pre-charging and arm installation 1 Open the door. Attach the arm to the shaft in any position. 4 Turn the arm and remove the locking piece. 2 Turn the arm in OPENING DIRECTION and lock the 5 Attach the arm to the door. geared motor with the special locking piece supplied ...
  • Page 7: Motor Connector

    General view of the control board EXTERIOR INTERIOR SENSOR SENSOR TEST TEST (C0M) SIO (COM) SIS (NC) SIS (COM) +24V +24V +24V STATE STATE (COM) CAN L CAN H +24V SIDE SWITCH MANUAL SELECTOR MODE DOOR OPEN/CLOSED MOTOR CONNECTOR LED - PROGRAMME RUNNING LED - ERROR LED - BOARD POWER SUPPLY ENCODER CONNECTOR...
  • Page 8 Digital selector DIG SEL02 Door open  Reset: Simultaneously pressing: & for 3 sec. the door carries out an Door closed automatic reset. Automatic  To lock the selector, press the & One direction keys for 3 sec. Repeat the sequence to unlock. Manual mode When the selector is locked, the screen Winter (Double...
  • Page 9: Tech. Support Menu

    Tech. Support Menu ( ) (I) 1.1.- Setup Menu 1.3.- Advanced Functions 1.1.1.- Door Learn Mode 1.3.1.- Door Sync 1.1.2.- Factory Reset Restore default parameters • Select Door Define who leads the movements 1.1.3- Setup Wizard Guided door configuration - M1 Master (Leader) 1 - S1 Slave 1...
  • Page 10 Tech. Support Menu ( ) (II) 1.3.5.- Inputs / Outputs 1.3.7.- Temperatures • Input (1,2,3,4) • Motor Temperature -50 to 200ºC, def. 100ºC - Mode • Driver Temperature -50 to 200ºC, def. 70ºC · Exit only • Min. Room -50 to 200ºC, def. -20ºC Temperature ·...
  • Page 11 Tech. Support Menu ( ) (III) 1.5.- Movements Parameters (cont.) 1.6.- Installation Information 1.5.2.- Opening 1.6.1.- Service Information • Speed 3 to 10 sec, def.: 5 sec 1.6.2.- Installation ID • Courtesy Speed 6 to 10 sec, def.:7 sec 1.6.3.- Commissioning Date •...
  • Page 12 Warnings / Errors (II) Type Description Possible cause Possible solution Remote safety Warning Obstacle in the safety Check the proper operating of the sensor, if it works properly, remove the openingsensor 13 (*) sensor detection area obstacle. A reset could be done for a quick recovery. enabled One of the voltages Make a reset to recover the proper functionality.
