VIVO-D103 / ADB30

Quick installation and programming guide

This quick guide is a summary of the complete installation manual. The manual contains safety warnings and

other explanations which must be taken into account. The most recent version of this guide and the

installation manual are available at the "Downloads" section on Erreka's website:

http://www.erreka-automation.com

WARNING

The options and functions described in this guide apply for the firmware version indicated on the circuit. The

firmware, as part of a process of continuous improvement, is subject to new functionalities or upgrades being

included as a result of new versions which are not necessarily compatible with previous ones. For this reason,

some options or functions may differ or be unavailable if your firmware is older than shown in this guide.

Elements of the complete installation

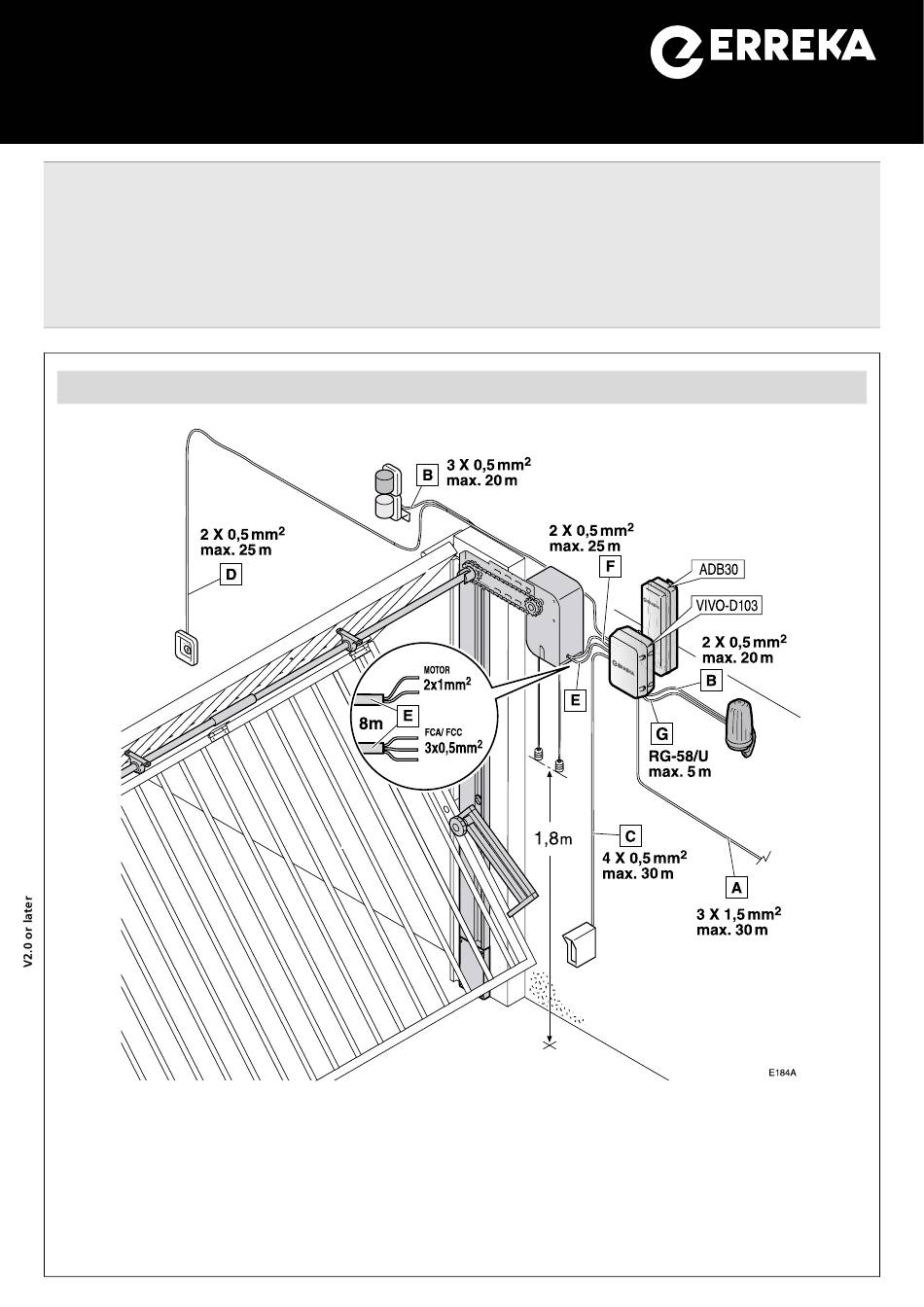

Electrical wiring

Main power supply

B/G: Flashing light with antenna

Photocells (mirror)

Pushbutton or key switch

Operator (motor + limit switches)

Operator release

English

Need help?

Do you have a question about the VIVO-D103 and is the answer not in the manual?

Page 1 This quick guide is a summary of the complete installation manual. The manual contains safety warnings and other explanations which must be taken into account. The most recent version of this guide and the installation manual are available at the "Downloads" section on Erreka's website: http://www.erreka-automation.com WARNING The options and functions described in this guide apply for the firmware version indicated on the circuit.
Page 2 General connections R.E. Plug-in receiver. It is possible to use a two channel Roller receiver, such as the IRRE2-250. The first channel acts on ST1 and the second on ST2. LEDs and fuses: SW1 General power switch Electronic fuse (0.8A) Transformer secondary fuse (12A) Motor fuse (12A)
Page 3 SW2 functions during programming (DIP3 = ON) DIP3=ON: programming enabled DIP3 must be in ON in order to carry out programming. The position of the other DIPs is indifferent. F184AA Total travel programming  Before starting programming, ensure the limit switches are correctly adjusted. ...
Page 4 Selecting operation modes with SW2 (DIP3 = OFF) DIP1, DIP2, DIP3 Operation mode DIP4 Automatic mode (the gate closes automatically ST1 active: with the gate open, pressing ST1 after standby) with collective opening (during resets standby. opening, the gate CANNOT be stopped by sending a key command).
