VIVO-M101(M)
Quick installation and programming guide
This quick guide is a summary of the complete installation manual. The manual contains safety warnings
IMPORTANT
and other explanations which must be taken into account. The installation manual can be downloaded by
NOTE
going to the "Downloads" section at the Erreka website:
http://www.erreka.com/Automatismos/descargaDocumentos.aspx

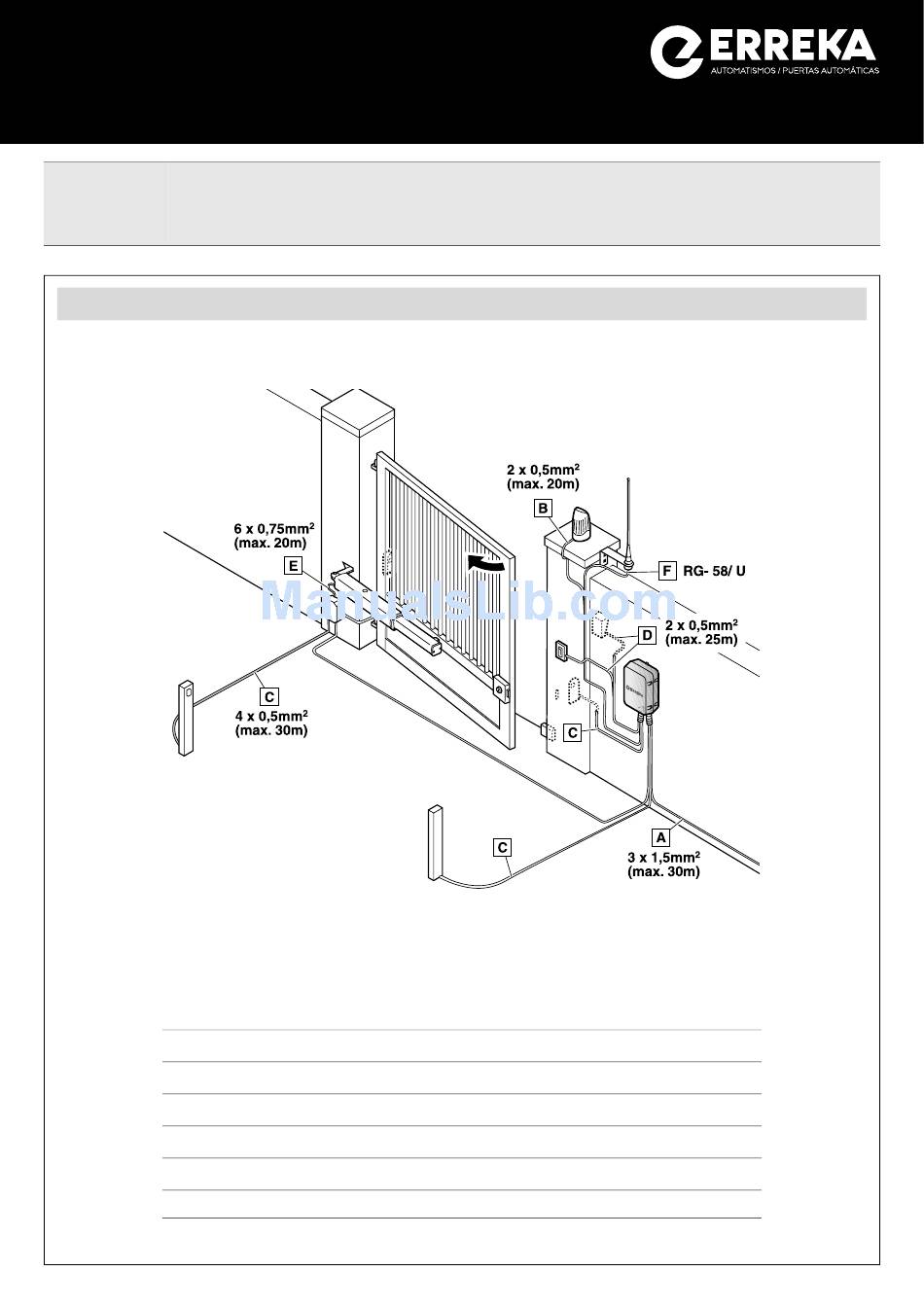

ELECTRICAL CABLING:
Element
A: Main power supply
B: Flashing light
C: Photocells (Tx / Rx)
D: Pushbutton/wall key
E: Operator / Limit switches
F: Antenna
Elements of the complete installation
Nº wires x section
2
3x1.5mm
2
2x0.5mm
2
2x0.5mm
2
2x0.5mm
4x0.75mm
Coaxial cable 50k (RG-58/U)
Maximum length
30m
20m
2
/ 4x0.5mm
30m
25m
2
2
/ 4x0.50mm
20m
5m
English
E175A
9
Advertisement
Table of Contents
Related Manuals for Erreka VIVO-M101
Summary of Contents for Erreka VIVO-M101
- Page 1 This quick guide is a summary of the complete installation manual. The manual contains safety warnings IMPORTANT and other explanations which must be taken into account. The installation manual can be downloaded by NOTE going to the "Downloads" section at the Erreka website: http://www.erreka.com/Automatismos/descargaDocumentos.aspx Elements of the complete installation E175A...
- Page 2 125Vac/60Hz G1 G2 G3 DEST. (max. 40W) VIVO-M101: 230Vac VIVO-M101M: 125Vac VIVO-M101: 230Vac VIVO-M101M: 125Vac VIVO-M101: 230Vac, max 2,300W (resistive) VIVO-M101M: 125Vac, max 1,250W (resistive) P175Z DL2: receiving RSD radio signal DL3: programming enabled When pressing PUL1 (close), DL5 lights up and the G2 and G3...
- Page 3 Total opening radio code programming (with RSD receiver only) 3 Place the DIPs as shown in the 5 Place DIP1 and DIP4 in OFF. If a receiver other than RSD is used, see the corresponding instructions. figure (DIP1=ON, DIP4=ON). DL3 DL3 remains off.
- Page 4 Function and mode selection using SW2 (DIP1 = OFF) Modes and functions Option Effect DIP1 the flashing light comes on and the operation begins after a 3 second warning DIP2 Advance warning the flashing light comes on and the operation begins immediately step-by-step opening (the gate halts if a key device is enabled during opening, and closes if enabled again) DIP3...
