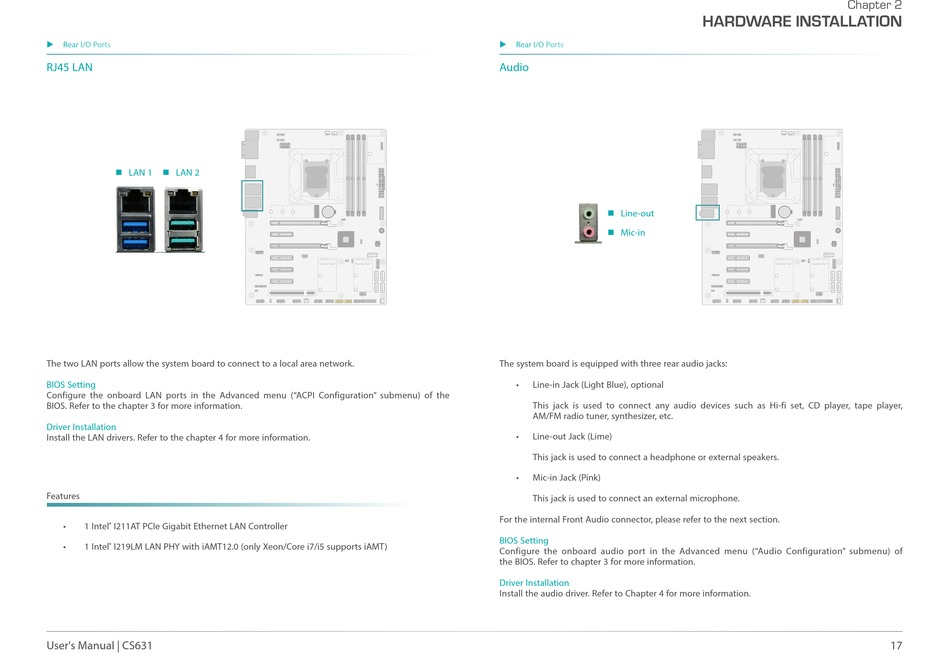

X Rear I/O Ports
RJ45 LAN
„ LAN 1 „ LAN 2
The two LAN ports allow the system board to connect to a local area network.
BIOS Setting
Configure the onboard LAN ports in the Advanced menu ("ACPI Configuration" submenu) of the
BIOS. Refer to the chapter 3 for more information.
Driver Installation
Install the LAN drivers. Refer to the chapter 4 for more information.
Features
• 1 Intel ® I211AT PCIe Gigabit Ethernet LAN Controller
• 1 Intel I219LM LAN PHY with iAMT12.0 (only Xeon/Core i7/i5 supports iAMT)
®
User's Manual | CS631
X Rear I/O Ports
Audio
„ Line-out
„ Mic-in
The system board is equipped with three rear audio jacks:
• Line-in Jack (Light Blue), optional
This jack is used to connect any audio devices such as Hi-fi set, CD player, tape player,
AM/FM radio tuner, synthesizer, etc.
• Line-out Jack (Lime)
This jack is used to connect a headphone or external speakers.
• Mic-in Jack (Pink)
This jack is used to connect an external microphone.
For the internal Front Audio connector, please refer to the next section.
BIOS Setting
Configure the onboard audio port in the Advanced menu ("Audio Configuration" submenu) of
the BIOS. Refer to chapter 3 for more information.
Driver Installation
Install the audio driver. Refer to Chapter 4 for more information.
Chapter 2
HARDWARE INSTALLATION
17
