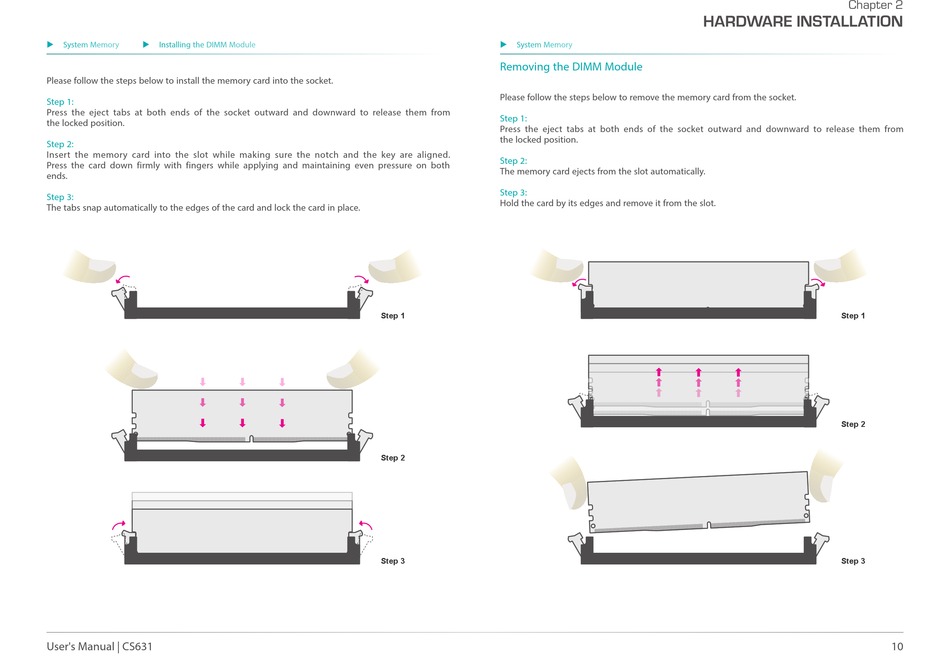

X System Memory X Installing the DIMM Module
Please follow the steps below to install the memory card into the socket.
Step 1:
Press the eject tabs at both ends of the socket outward and downward to release them from
the locked position.
Step 2:
Insert the memory card into the slot while making sure the notch and the key are aligned.
Press the card down firmly with fingers while applying and maintaining even pressure on both
Eject Tab Eject Tab
ends.
Step 3:
The tabs snap automatically to the edges of the card and lock the card in place.
User's Manual | CS631
DDR4 DIMM
Notch Notch
Socket Top View
Key Key
Eject Tab Eject Tab
Socket Side View
Step 1
Step 2
Step 3
X System Memory
Removing the DIMM Module
Please follow the steps below to remove the memory card from the socket.
DDR4 DIMM
Step 1:
Press the eject tabs at both ends of the socket outward and downward to release them from
the locked position.
Socket Top View
Step 2:
The memory card ejects from the slot automatically.
Step 3:
Hold the card by its edges and remove it from the slot.
Socket Side View
Step 1
Step 2
Step 3
Chapter 2
HARDWARE INSTALLATION
Step 1 Step 1
Step 2 Step 2
Step 3 Step 3
