Summary of Contents for DFI CS630-H310

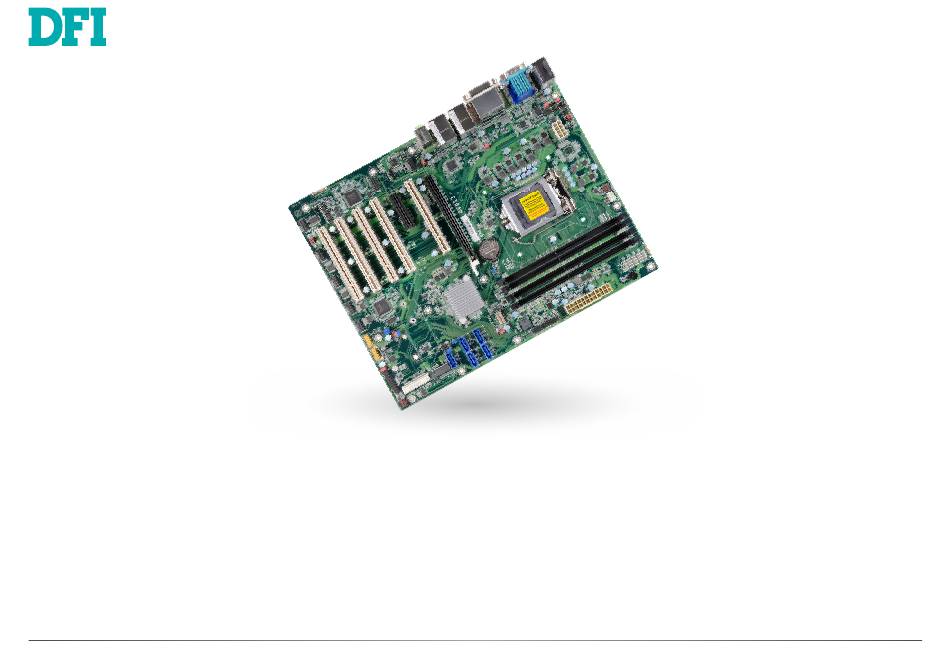

  • Page 1 CS630-H310/Q370 ATX Industrial Motherboard User’s Manual © May 09, 2024 DFI Inc.
  • Page 2 1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | CS630-H310/Q370...
  • Page 3: Table Of Contents

    ► Serial Port 3, 4 Configuration ....32 NCT6106D Super IO Configuration ► Serial Port 5, 6 Configuration ....33 NCT6106D HW Monitor ....................33 NCT6106D HW Monitor ► Smart FAN Function ..........34 Serial Port Console Redirection ...................34 User's Manual | CS630-H310/Q370...
  • Page 4 • To reduce the risk of electric shock, unplug the power cord before removing the sys- tem chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. User's Manual | CS630-H310/Q370...
  • Page 5 The board and accessories in the package may not come similar to the information listed above. This may differ in accordance with the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales repre- sentative. User's Manual | CS630-H310/Q370...
  • Page 6: Chapter 1 - Introduction

    1 x PCIe x4 (Gen 2) 5 x PCI (use IT8892+IT8209) AUDIO Audio Codec Realtek ALC888 ETHERNET Controller 1 x Intel I210AT PCIe (10/100/1000Mbps) ® 1 x Intel I219V Lan Phy (10/100/1000Mbps) ® OS SUPPORT Windows 10 IoT Enterprise 64-bit Linux User's Manual | CS630-H310/Q370...
  • Page 7 Calculation Model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled MECHANISM Dimensions ATX Form Factor: 305mm (12") x 244mm (9.6") Height PCB: 1.6mm Top Side: 31.47mm Bottom Side: 4.4mm CERTIFICATIONS CE, FCC, RoHS, KC, UKCA User's Manual | CS630-H310/Q370...
  • Page 8: Specifications (Q370)

    1 x PCIe x4 (Gen 2) 5 x PCI (use IT8892+IT8209) AUDIO Audio Codec Realtek ALC888 ETHERNET Controller 1 x Intel I210AT PCIe (10/100/1000Mbps) ® 1 x Intel I219V Lan Phy (10/100/1000Mbps) ® OS SUPPORT Windows 10 IoT Enterprise 64-bit Linux User's Manual | CS630-H310/Q370...
  • Page 9 Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled MECHANISM Dimensions ATX Form Factor: 305mm (12") x 244mm (9.6") Height PCB: 1.6mm Top Side: 31.47mm Bottom Side: 4.4mm CERTIFICATIONS CE, FCC, RoHS, KC, UKCA User's Manual | CS630-H310/Q370...
  • Page 10: Block Diagram

    Chapter 1 INTRODUCTION X Block Diagram X Dimension CS630-H310 CS630-Q370 User's Manual | CS630-H310/Q370...
  • Page 11: Chapter 2 - Hardware Installation

    Mini PCIe JP15 COM2 COM3 COM4 COM5 COM6 Digital I/O System Fan 2 9/14 USB 2.0 • Two 288-pin DIMM up to 32GB (CS630-H310) Four 288-pin DIMM up to 64GB (CS630-Q370) • Dual Channel DDR4 2400/2666 MHz User's Manual | CS630-H310/Q370...
  • Page 12: Installing The Heat Sink

    Realtek Intel ALC888 SATA 0 SATA 1 PCIe 2 (PCIe x4) H310/Q370 SATA 2 SATA 3 PCI 2 Nuvoton SATA 4 NCT6106D PCI 3 M.2 M Key PCI 4 ASM1085 PCI 5 Mini PCIe Mounting holes User's Manual | CS630-H310/Q370...
  • Page 13: Jumper Settings

    JP8 (for COM2) PCI 4 RS232 (default) RS485 ASM1085 COM 2 JP6 (for COM2) PCI 5 Mini PCIe COM 1/COM 2 1 2 3 4 5 6 7 8 9 RS232 RS422 Full Duplex RS485 DATA+ DATA- User's Manual | CS630-H310/Q370...
  • Page 14: Usb Power Select

    If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A. User's Manual | CS630-H310/Q370...
  • Page 15: Mini Pcie Power Select

    Mini PCIe M.2 M Key PCI 4 ASM1085 PCI 5 Mini PCIe 1-2 On: 2-3 On: 3V3DU 3V3 (default) DIO 0-7 Power Select DIO 8-15 Power Select (JP18) (JP19) 1-2 On: 5VDU_DIO 2-3 On: GND (default) User's Manual | CS630-H310/Q370...
  • Page 16: Ps/2 Power Select (Jp22)

    PCIe 2 (PCIe x4) H310/Q370 SATA 2 SATA 3 PCI 2 1-2 On: AT mode 2-3 On: ATX mode Nuvoton SATA 4 NCT6106D (default) PCI 3 M.2 M Key PCI 4 ASM1085 PCI 5 Mini PCIe User's Manual | CS630-H310/Q370...
  • Page 17: Pin Assignment

    COM 2 COM 6 COM 5 COM 4 COM6 (J16) COM5 (J15) COM 3 Assignment Assignment Assignment Assignment MDCD- MSIN- MDCD- MSIN- MSO- MDTR- MSO- MDTR- MDSR- MDSR- MRTS- MCTS- MRTS- MCTS- MRI- ---- MRI- ---- User's Manual | CS630-H310/Q370...
  • Page 18: Front Panel (J18)

    PCI 4 ASM1085 PCI 5 Mini PCIe PCI 5 Mini PCIe System Fan 2 (J22) Assignment Assignment CPU Fan System Fan 1 & System Fan 2 V_SUS_LED Assignment Assignment V_SUS_LED HDD_LED SUS_LED TACH SYS_RST- PWR_BTN- CTRL User's Manual | CS630-H310/Q370...
  • Page 19: Digital I/O Connector (J26)

    SATA 0 SATA 1 PCIe 2 (PCIe x4) H310/Q370 SATA 2 SATA 3 DIO3 DIO14 PCI 2 Nuvoton SATA 4 DIO2 DIO15 NCT6106D PCI 3 M.2 M Key DIO1 PCI 4 ASM1085 DIO0 PCI 5 Mini PCIe User's Manual | CS630-H310/Q370...
  • Page 20: Digital I/O Power (J28)

    NCT6106D M.2 M Key PCI 3 PCI 4 ASM1085 M.2 M Key PCI 4 ASM1085 PCI 5 Mini PCIe PCI 5 Mini PCIe Assignment GBE_LED_1000- GBE_LED_1000- DIO Power Assignment GBE_LED_LINK_ACT- 3V3DU LINK_1000_ 5VDU LINK_100 LINK_ACTIVITY 3V3DU User's Manual | CS630-H310/Q370...
  • Page 21: Smbus Header (J12)

    M.2 M Key PCI 4 M.2 M Key ASM1085 PCI 4 ASM1085 PCI 5 Mini PCIe PCI 5 Mini PCIe Assignment Assignment Assignment Assignment 3V3DU V_3P3_SPI SMB_CLK_ SMB_DATA_ ICHSPI_CS0- SPI_CLK-R RESUME RESUME SMBALERT_PCH- SPI_SO-R SPI_SI-R HOLD User's Manual | CS630-H310/Q370...
  • Page 22: Sata (Serial Ata) Connectors

    PCIe 2 (PCIe x4) SATA0 (J23) H310/Q370 SATA1 (J24) SATA 2 SATA 3 SATA2 (J17) PCI 2 SATA3 (J25) Nuvoton SATA 4 SATA4 (J27) NCT6106D PCI 3 M.2 M Key PCI 4 ASM1085 PCI 5 Mini PCIe Assignment User's Manual | CS630-H310/Q370...
  • Page 23: System Memory

    DIMMs. Not all slots need to be populated. DDR3 Dual Channel (DC) Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides DDR4 better system performance because it doubles the data transfer rate. User's Manual | CS630-H310/Q370...
  • Page 24: Expansion Slots

    ALC888 SATA 0 SATA 1 PCIe 2 (PCIe x4) H310/Q370 SATA 2 SATA 3 Stand-off PCI 2 Notch Nuvoton SATA 4 NCT6106D PCI 3 M.2 M Key PCI 4 ASM1085 PCI 5 Mini PCIe M.2 M-Key User's Manual | CS630-H310/Q370...
  • Page 25 Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. User's Manual | CS630-H310/Q370...
  • Page 26: Installing The Mini Pcie Module

    The card should be lying paral- Mini PCIe lel to the board when it’s correctly mounted. User's Manual | CS630-H310/Q370...
  • Page 27: Chapter 3 - Bios Settings

    When “X” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. User's Manual | CS630-H310/Q370...
  • Page 28: Main

    The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | CS630-H310/Q370...
  • Page 29: Rc Acpi Settings

    The system automatically powers on after power failure. • S5 State The system enter soft-off state after power failure. Power-on signal input is required to power up the system. • Last State The system returns to the last state right before power failure. User's Manual | CS630-H310/Q370...
  • Page 30: Power & Performance

    BIOS, EIST features can then be enabled via the operating system’s power management. Configure Management Engine Technology Parameters. C states Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and nothing is executing. User's Manual | CS630-H310/Q370...
  • Page 31: Trusted Computing

    Set SuperIO WatchDog Timer Timeout value. The range is from 0 (disabled) to 255. To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is not available when "Security Device Support" is disabled. User's Manual | CS630-H310/Q370...
  • Page 32: Nct6106D Super Io Configuration ► Serial Port 1, 2 Configuration

    Advanced Advanced NCT6106D Super IO Configuration NCT6106D Super IO Configuration ► Serial Port 1, 2 Configuration ► Serial Port 3, 4 Configuration Serial Port Serial Port Enable or disable serial port. Enable or disable serial port. User's Manual | CS630-H310/Q370...
  • Page 33: Nct6106D Super Io Configuration ► Serial Port 5, 6 Configuration

    This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures, and fan speed readings Smart Fan Function Smart Fan Function Setting. Case Open Enable or disable the case open detection function. Serial Port Enable or disable serial port. User's Manual | CS630-H310/Q370...
  • Page 34: Nct6106D Hw Monitor ► Smart Fan Function

    Fan Speed Count 1 field. • Fan Speed Count 1 to Fan Speed Count 4 Set the fan speed, the value ranging from 1-100%, 100% being full speed. The fans will operate according to the specified boundary temperatures above-mentioned. User's Manual | CS630-H310/Q370...
  • Page 35: Console Redirection Settings

    Chapter 3 BIOS SETTINGS Advanced Advanced Serial Port Console Redirection ► Console Redirection Settings Serial Port Console Redirection ► Console Redirection Settings User's Manual | CS630-H310/Q370...
  • Page 36: Serial Port Console Redirection ► Console Redirection Settings

    Select parity bits: None, Even, Odd, Mark or Space. Stop Bits Select stop bits: 1 bit or 2 bits. Flow Control Select flow control type: None or Hardware RTS/CTS. Flow Control is for RS485 mode and is only supported by Serial Port 1 (COM1). User's Manual | CS630-H310/Q370...
  • Page 37: Usb Configuration

    Enable or disable USB Mass Storage Driver Support. Video This field controls the execution of UEFI and Legacy Video OpROM. Other PCI devices This field determines OpROM execution policy for devices other than Network, Storage or Video. User's Manual | CS630-H310/Q370...
  • Page 38: Network Stack Configuration

    Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | CS630-H310/Q370...
  • Page 39: Chipset

    Please select a submenu and press Enter. The submenus are detailed in the following pages. Primary Display Select which of IGFX/PEG/PCI Graphics device to be the primary display. Internal Graphics Keep IGFX "Enabled" or "Disabled" based on the setup options, or select "Auto" for auto-detec- tion. User's Manual | CS630-H310/Q370...
  • Page 40: Peg Port Configuration

    Assign the maximum value of Top Of Lower Usable DRAM (TOLUD). Select to specify a fixed value, or select "Dynamic" so that the assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller. User's Manual | CS630-H310/Q370...
  • Page 41: Pch-Io Configuration► Pci Express Configuration

    The mode selection determines how the SATA controller(s) operates. • AHCI This option allows the Serial ATA controller(s) to use AHCI (Advanced Host Controller Interface). Ports and Hot Plug Enable or disable the Serial ATA port and its hot plug function. User's Manual | CS630-H310/Q370...
  • Page 42: Pch-Io Configuration► Hd Audio Configuration

    Chapter 3 BIOS SETTINGS Chipset PCH-IO Configuration ► HD Audio Configuration HD Audio Control the detection of the HD Audio device. • Disabled HDA will be unconditionally disabled. • Enabled HDA will be unconditionally enabled. User's Manual | CS630-H310/Q370...
  • Page 43: Security

    Secure Boot. Press Enter and a prompt will show up for you to confirm. Reset To Setup Mode Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. User's Manual | CS630-H310/Q370...
  • Page 44: Boot

    Refer to the Advanced > CSM Configuration submenu for more information. • Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore setting from the USB flash device. User's Manual | CS630-H310/Q370...
  • Page 45: Updating The Bios

    MAC address should be burned or not. c. After updating unique MAC Address from manufacturing, NVM will be protected immediately after power cycle. Users cannot update NVM or MAC address. User's Manual | CS630-H310/Q370...
